4-156 Service Manual

7541-03x

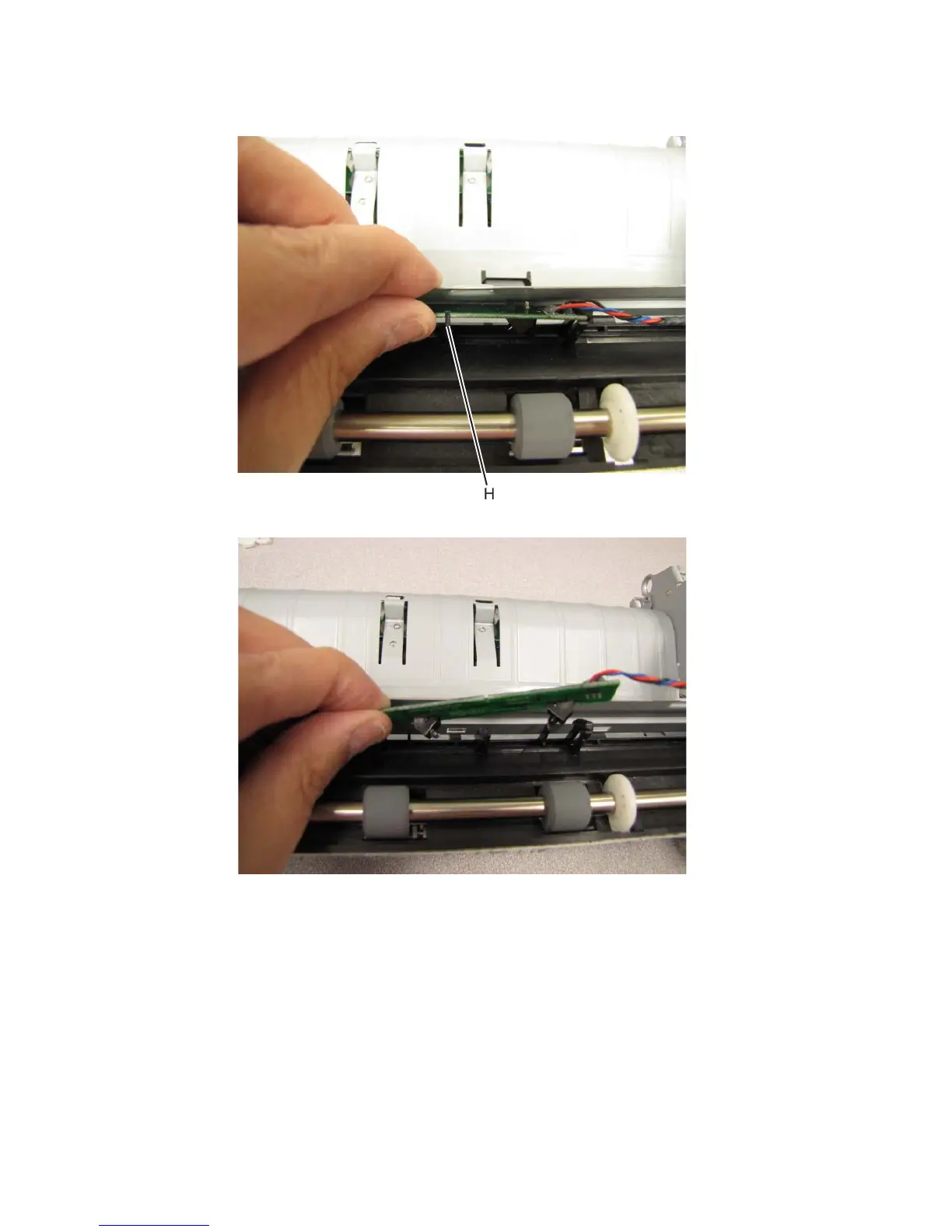

10. Carefully pull the sensor PCBA away from the retainer (H) on the paper guide.

11. Carefully lift the sensor up and away from the paper guide.
