Repair information 4-155

7541-03x

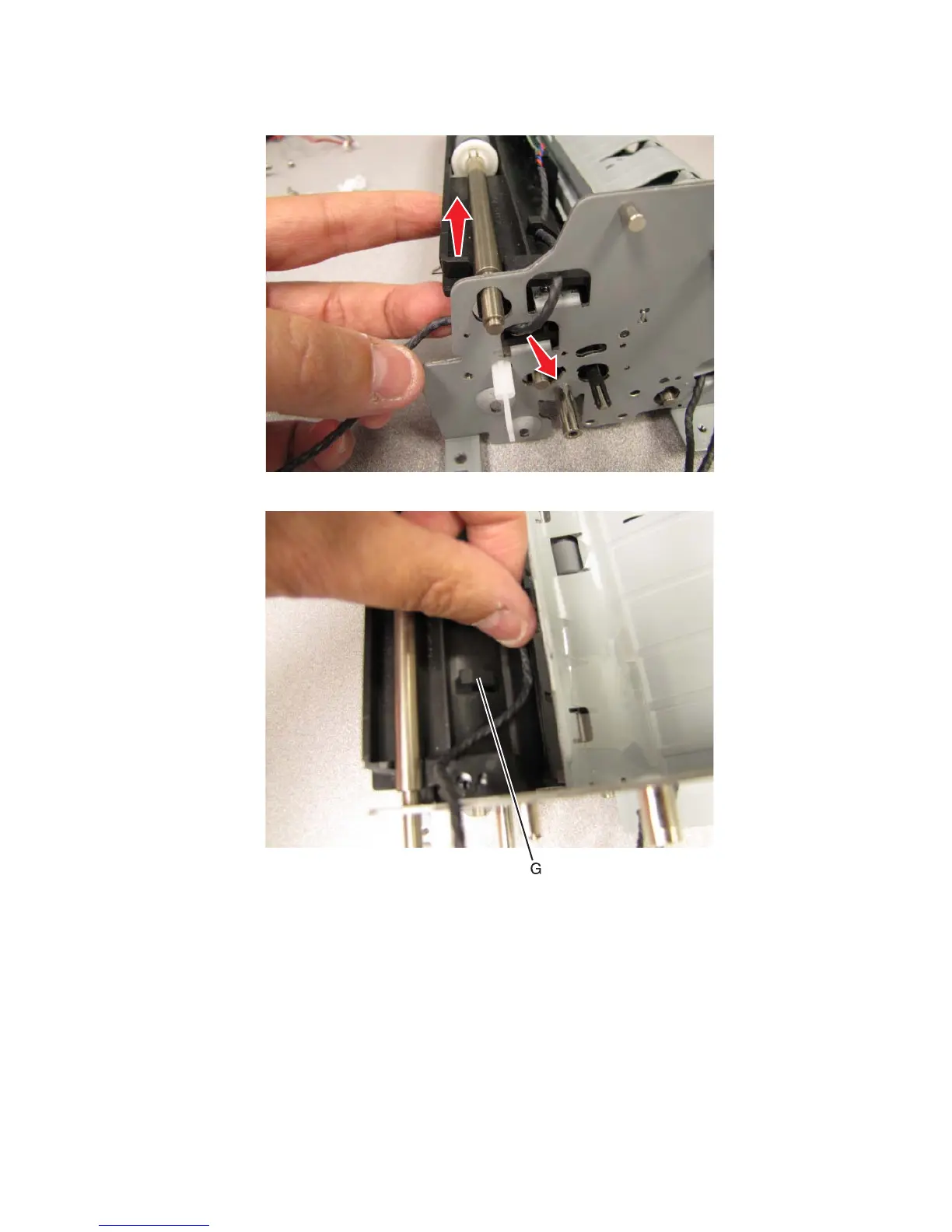

8. Lift the paper guide up and feed the duplex pass timing sensor cable through the ADF main feeder frame.

9. Release the cable from the clip (G) on the paper guide.
