Lexmark X925 - Page 336

To Next Page

To Previous Page

4-154 Service Manual

7541-03x

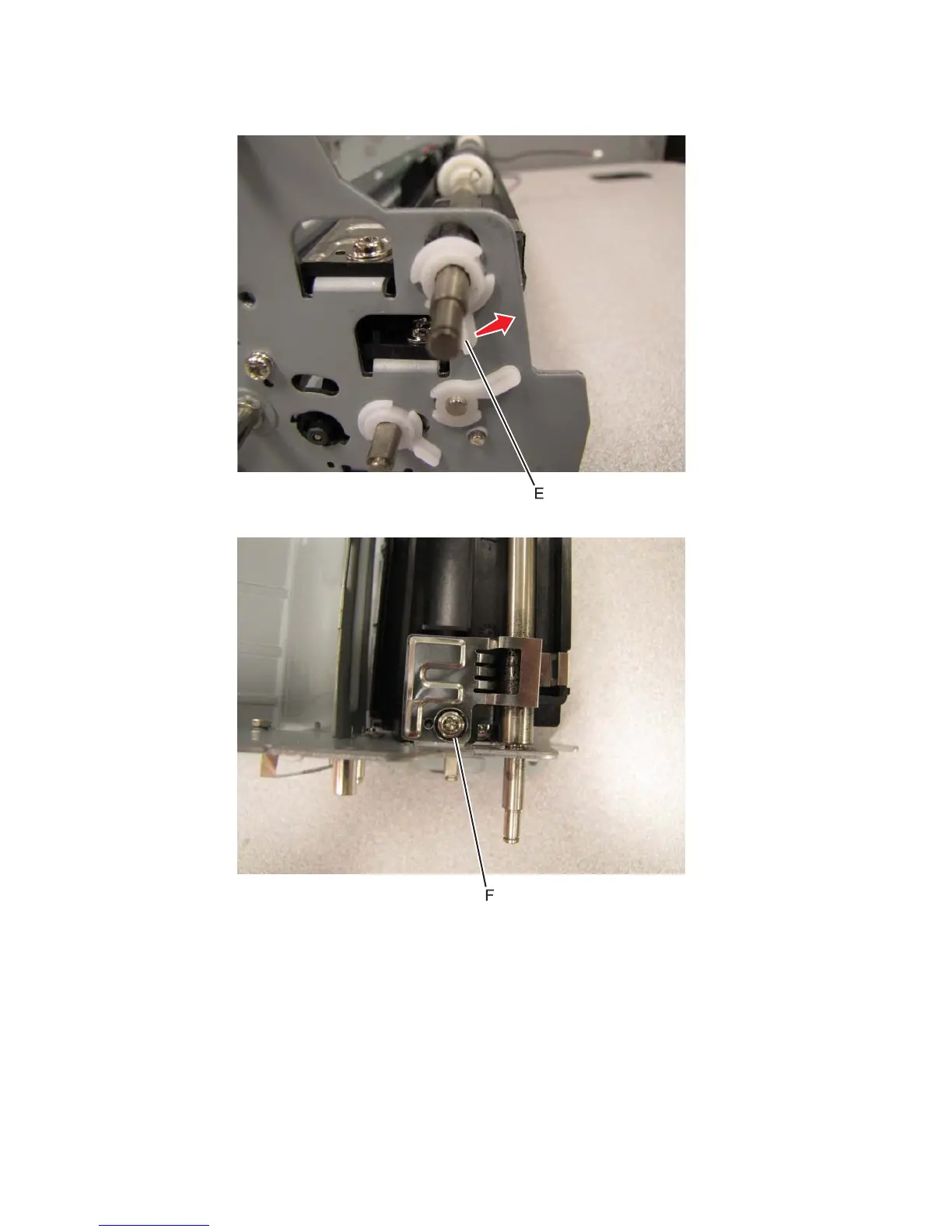

6. Turn the bushing (E) to release it from the ADF main feed unit.

7. Remove the screw (F) securing the paper guide to the ADF main feed unit.
