Repair information 4-171

7541-03x

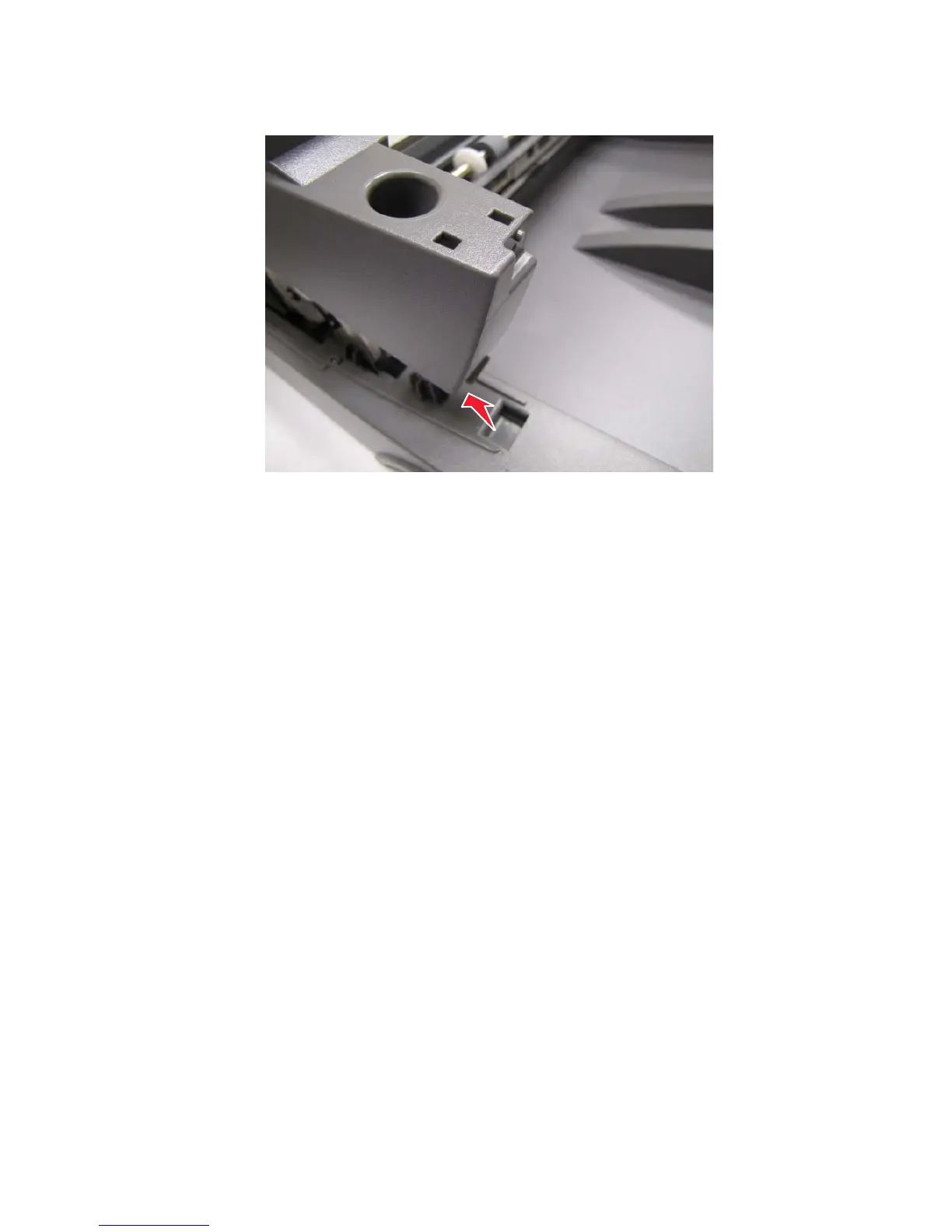

3. Lift the rear of the right ADF cover up and pull the cover away from the flatbed cover.
