Repair information 4-109

7541-03x

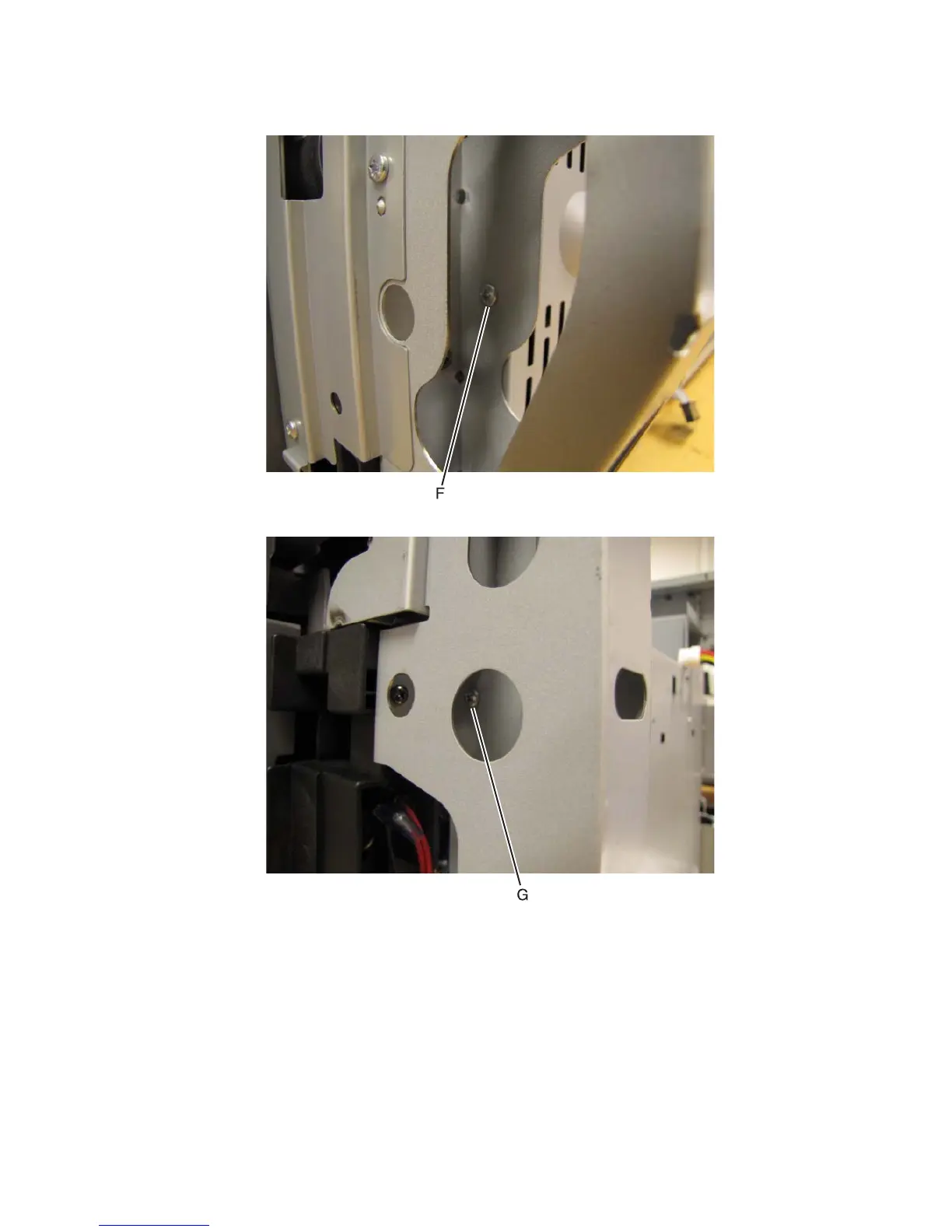

9. Remove the upper screw (F) securing the emi shield to the cage.

10. Remove the lower screw (G) securing the emi shield to the cage.
