4-108 Service Manual

7541-03x

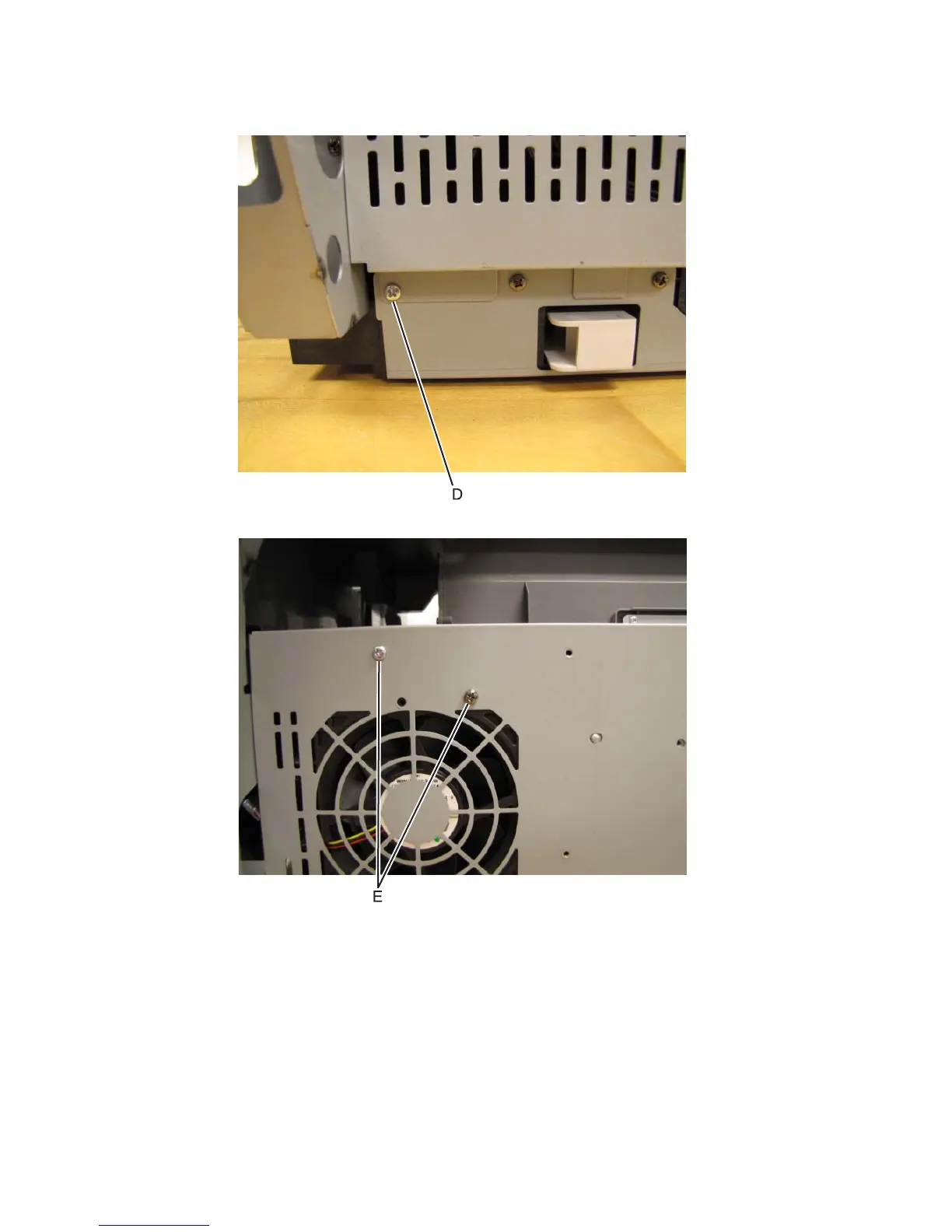

7. Remove the screw (D) in the lower left corner of the shield.

8. Remove the two screws (E) in the upper left corner.
