4-24 Service Manual

7541-03x

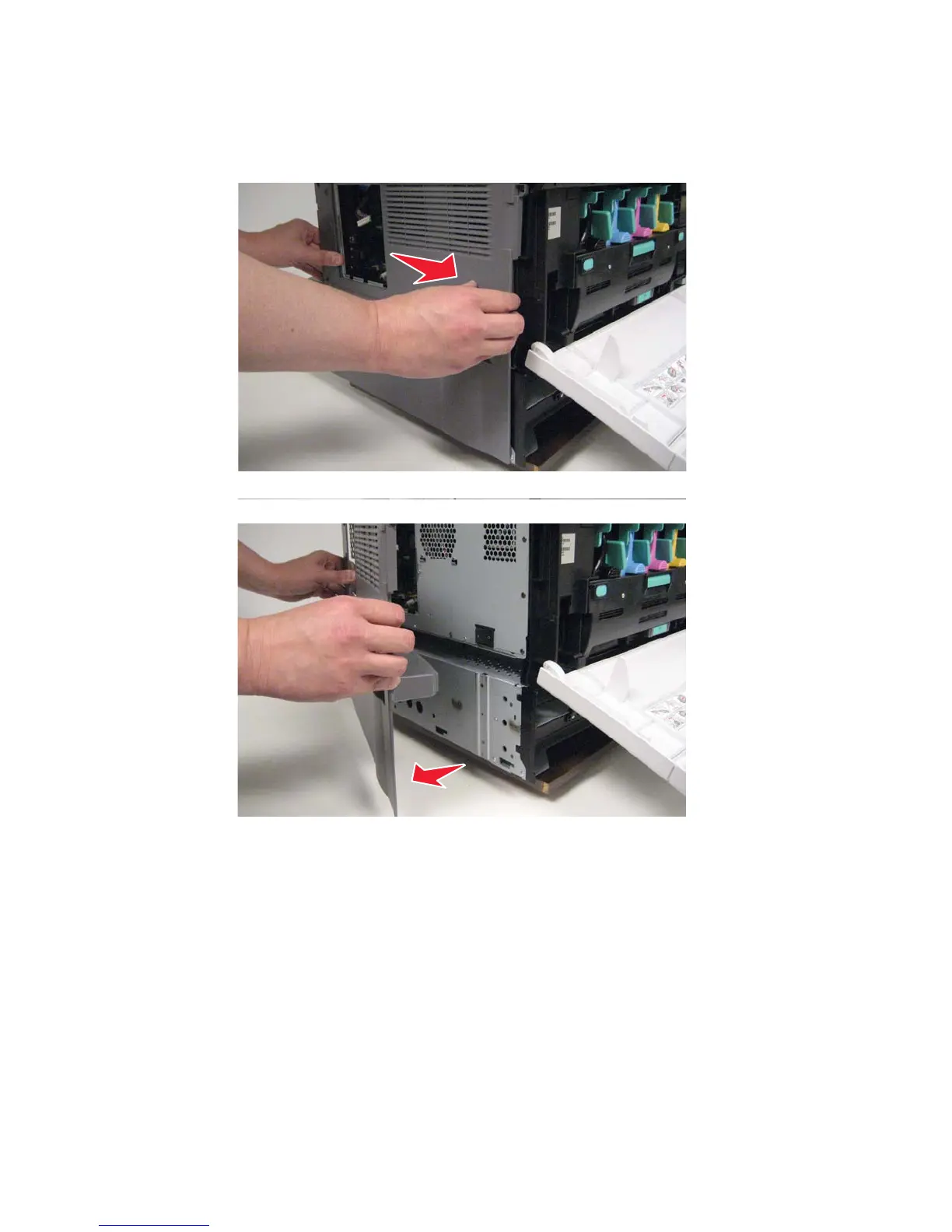

7. Slide the left cover back to release the tabs from the printer frame.

8. Pull the left cover away from the frame.
