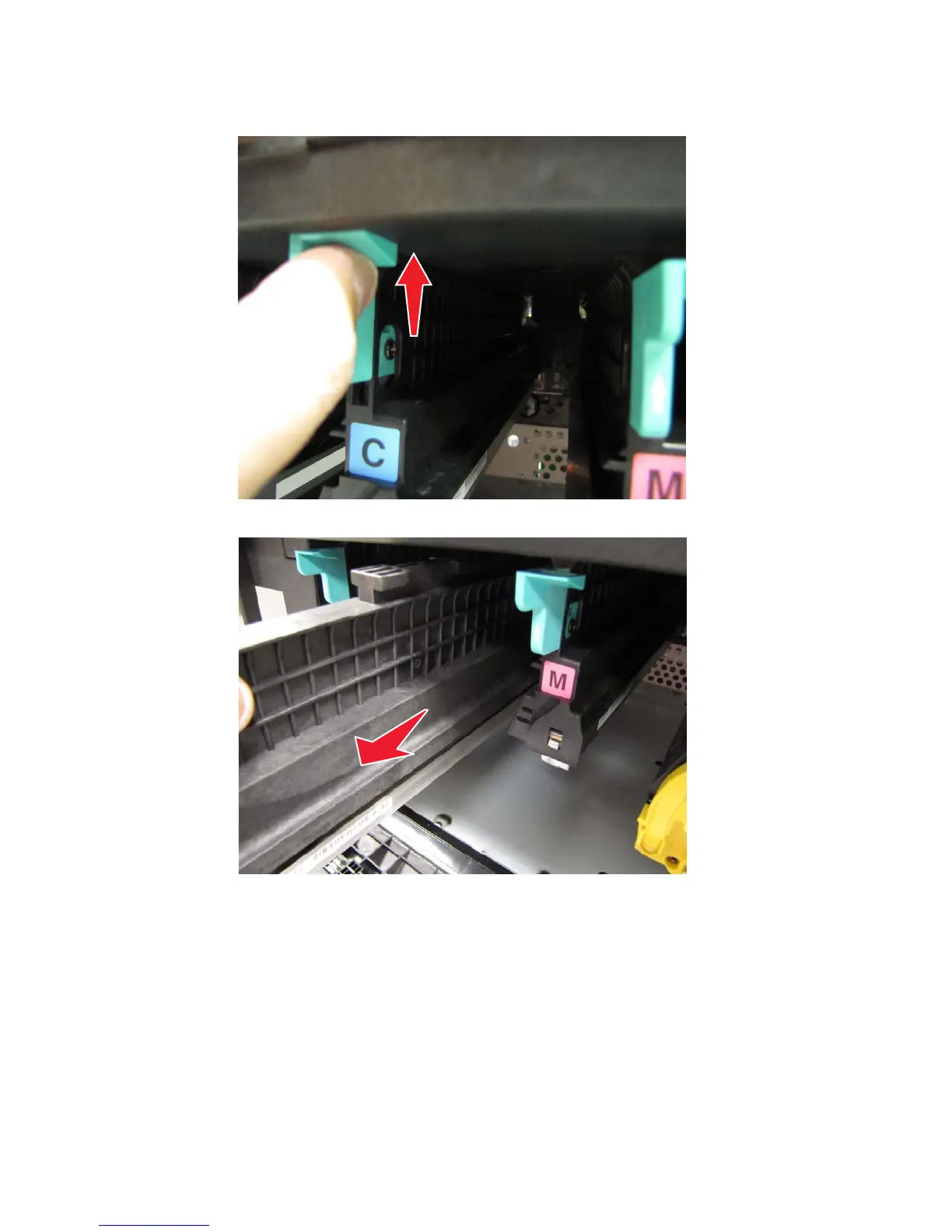

8. Press up on the green touchpoint,
9. Pull the LED assembly towards the front of the print engine.
Note: Use two hands when removing the unit. This is to prevent the LED assembly from dropping down
and damaging the LED unit in the assembly.
Note: Perform a color alignment after installing the new printhead. See “Color Alignment” on
page 3-14.
