Repair information 4-35

7541-03x

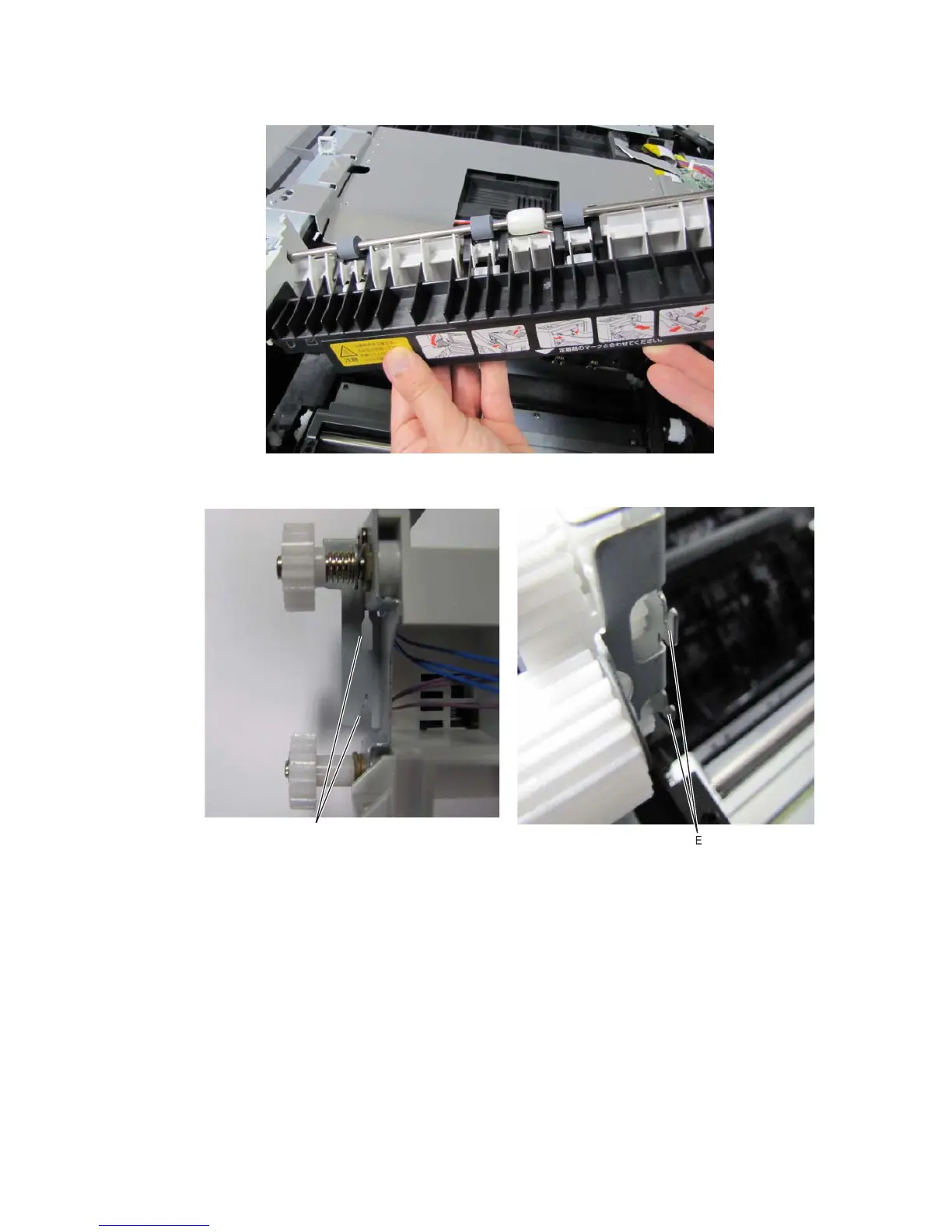

8. Lift the unit up and remove it from the printer.

Note: When reinstalling the unit, line up the slots (D) on the paper exit unit with the tabs (E) on the sub

drive unit before pushing the unit down in place.

D

EE
