4-54 Service Manual

7541-03x

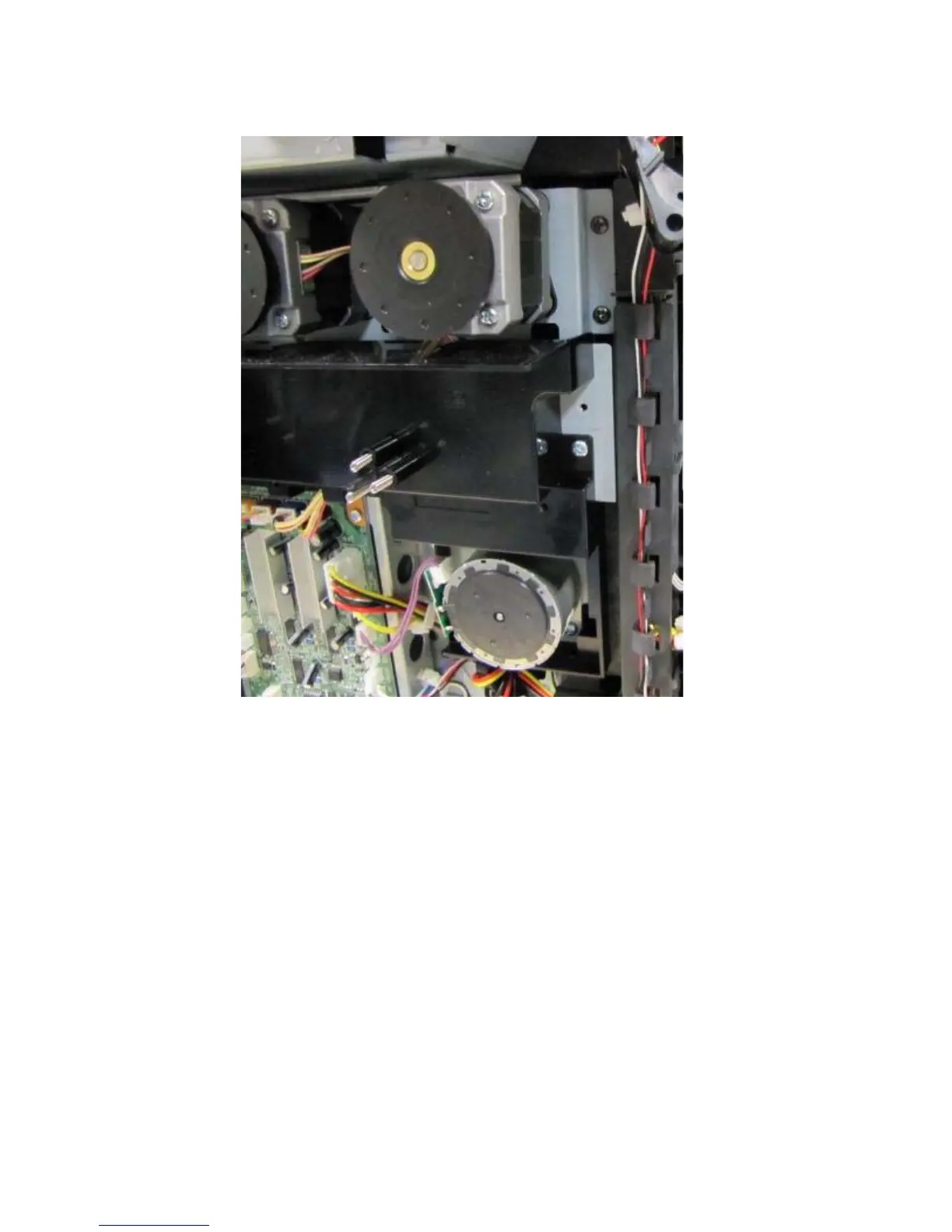

7. Thread the fan cable through the cable stay.

8. Lift the fan up and pull the main fan stay away from the printer.
