Repair information 4-71

7541-03x

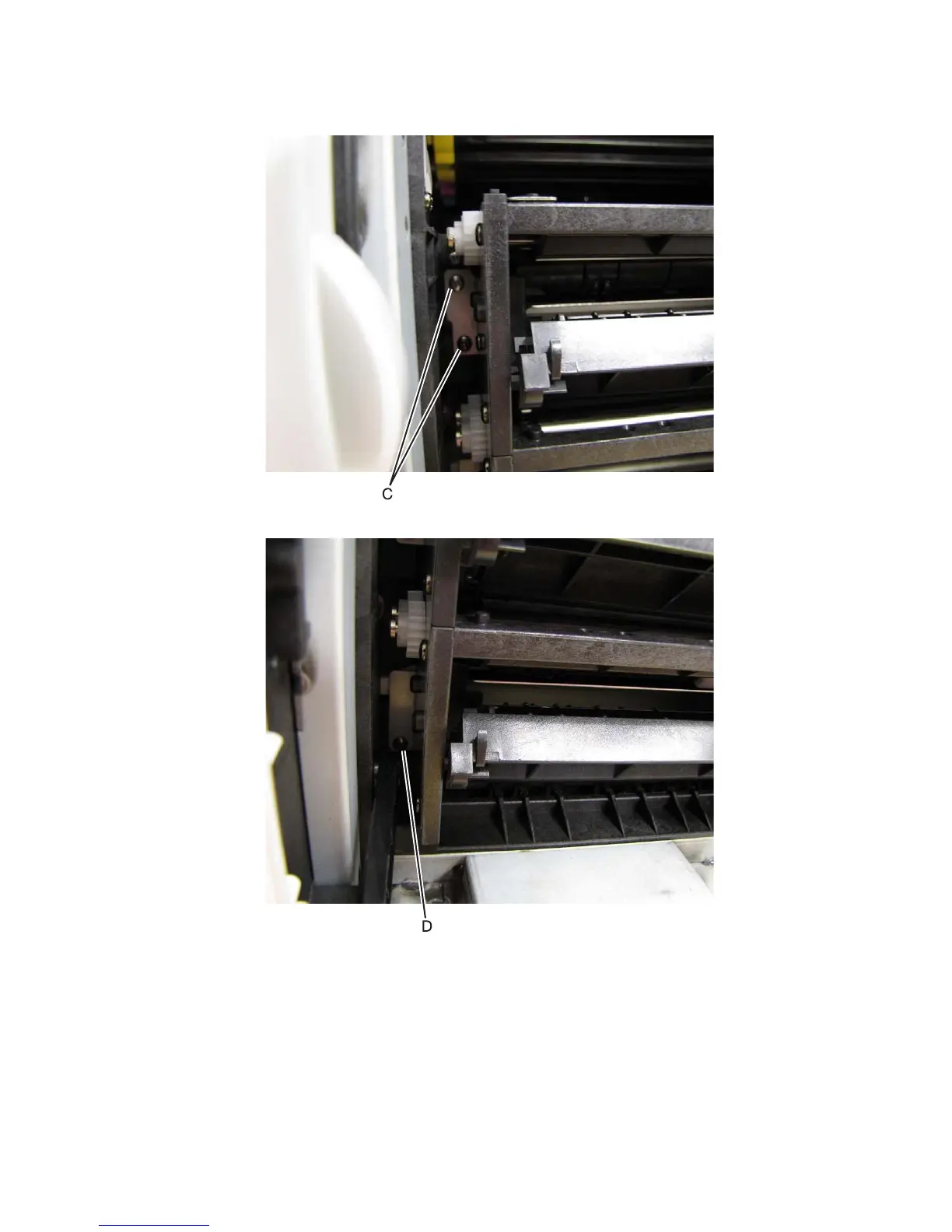

10.Remove the two screws (C) securing the upper left side of the paper feed unit to the printer frame.

11.Remove the two screws (D) securing the lower left side of the paper feed unit to the printer frame.
