4-76 Service Manual

7541-03x

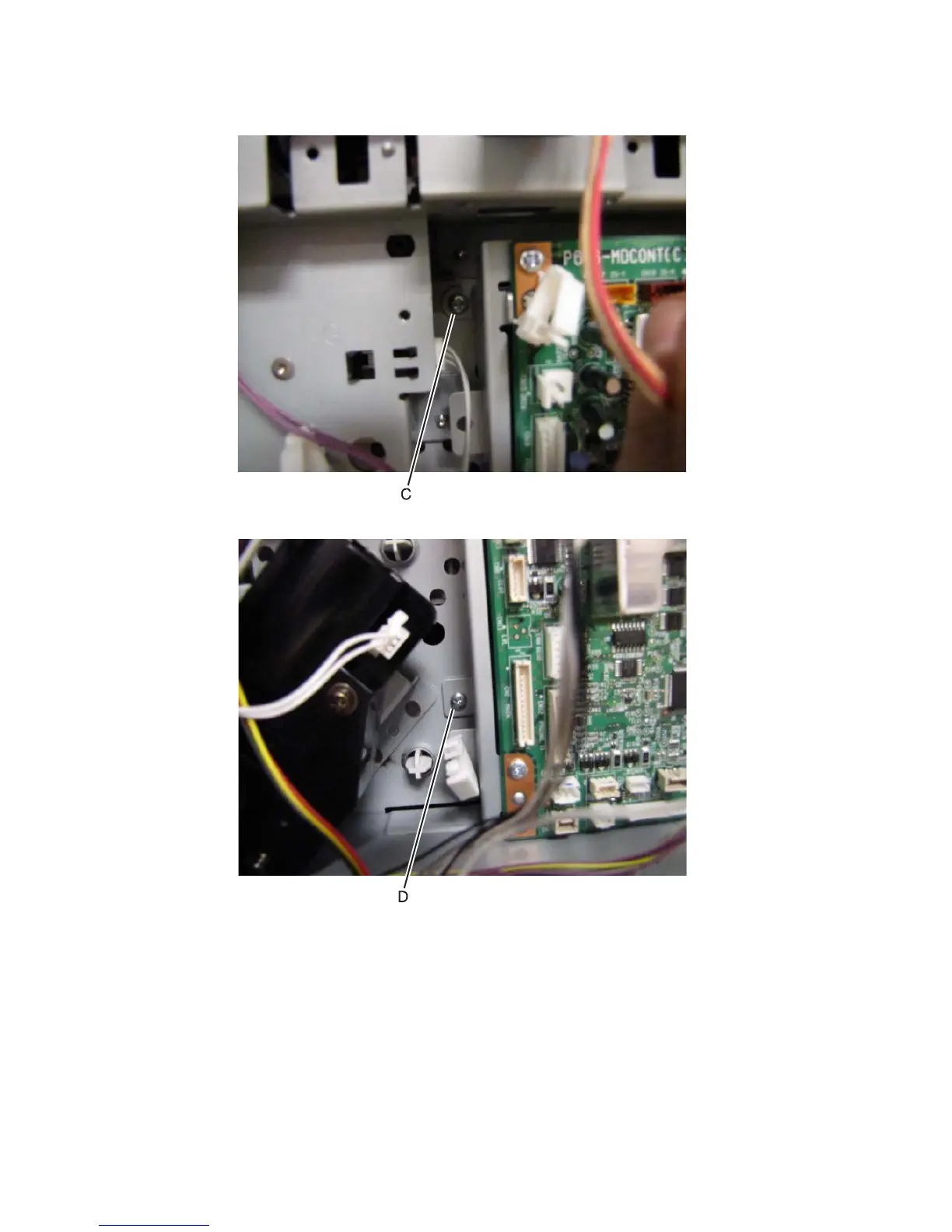

7. Remove the screw (C) from the upper left corner.

8. Remove the screw (D) from the lower left corner.

9. Pull the board and frame away from the printer frame.
