Repair information 4-81

7541-03x

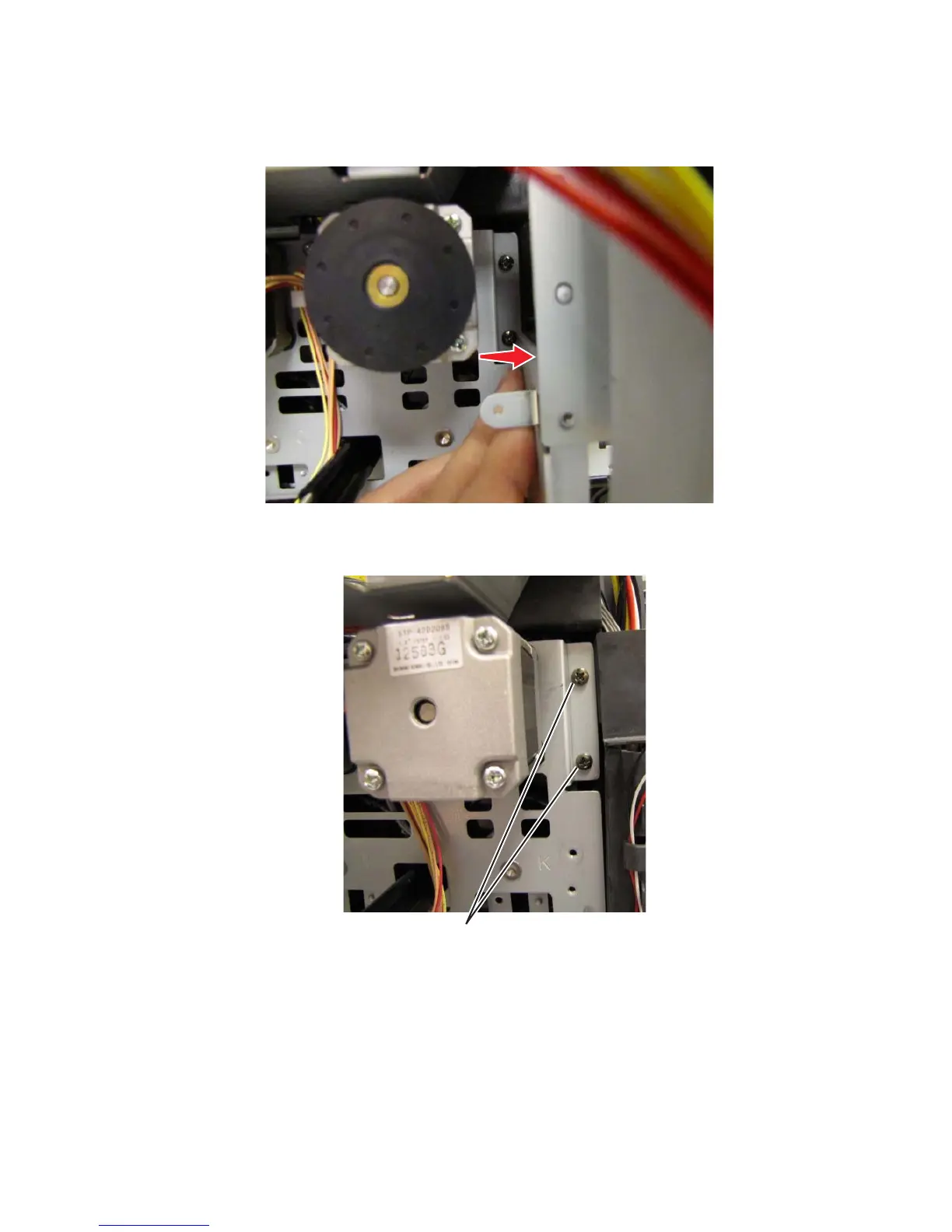

8. Push the fan cage back.

9. Remove the two screws (E) in the upper right corner.
