4-96 Service Manual

7541-03x

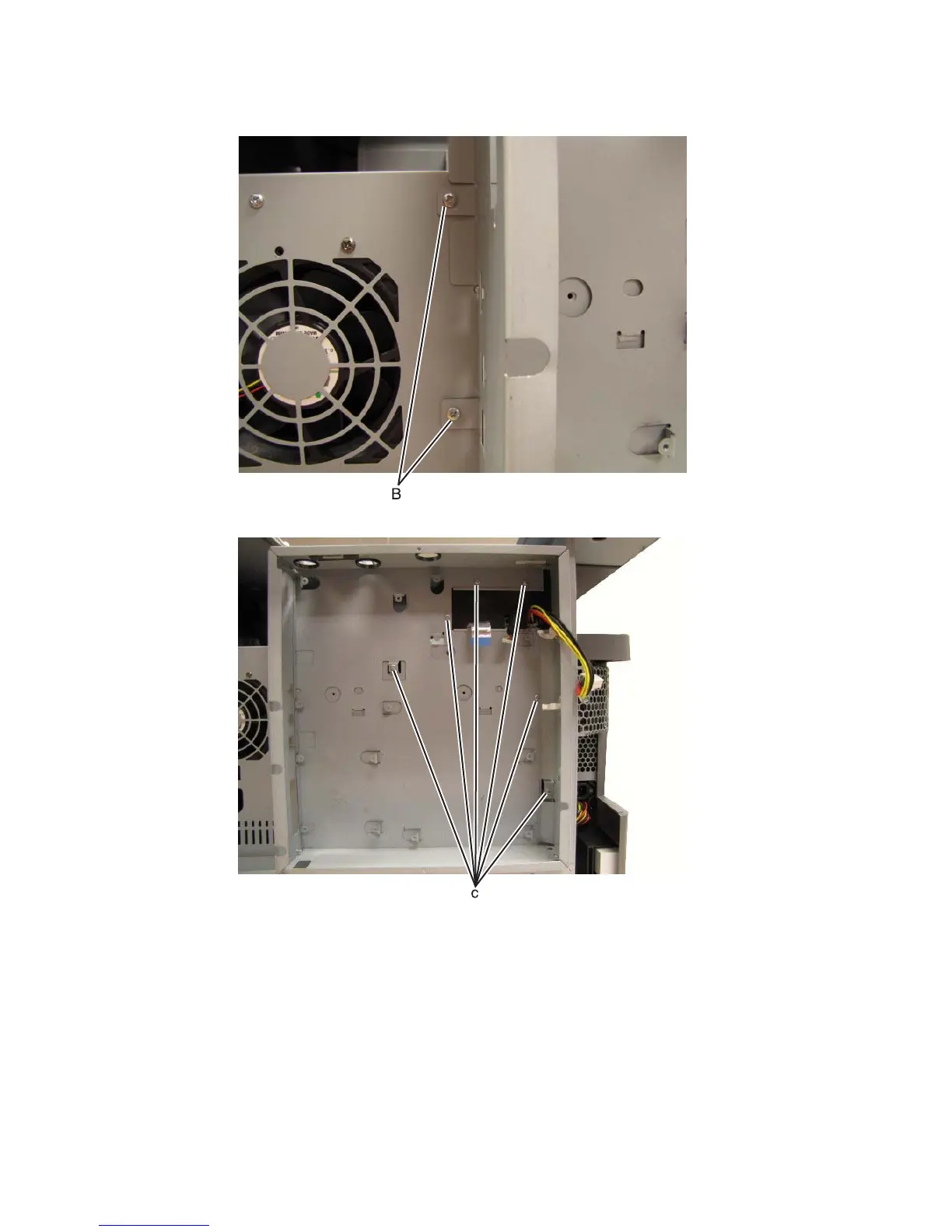

4. Remove the two screws (B) securing the upper left corner of the RIP cage to the EMI shield.

5. Remove the six screws (C) on the inside of the RIP cage.
