Repair information 4-131

7541-03x

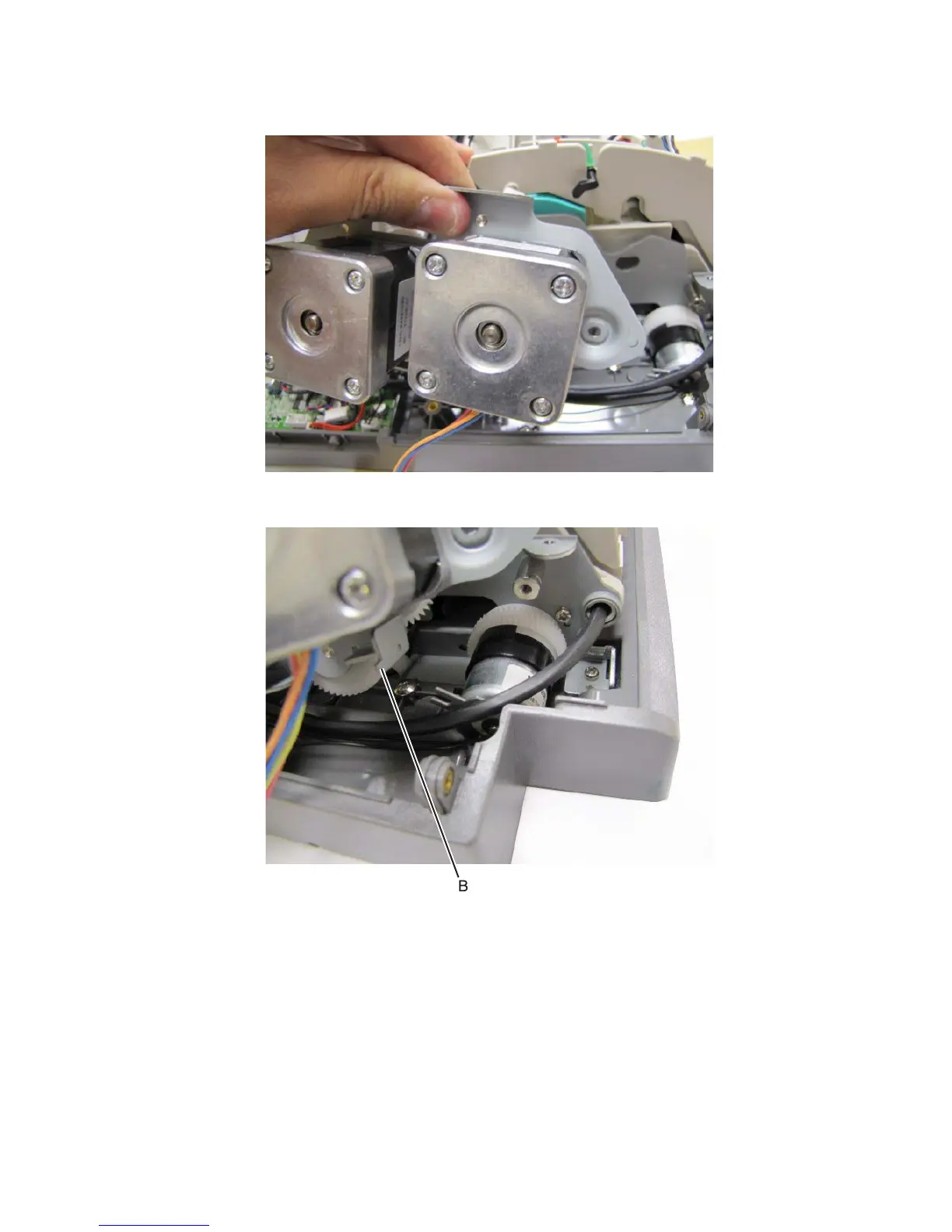

4. Remove the motor frame from the ADF unit.

Note: When replacing the frame, make sure the ADF drive clutch stop (B) is properly aligned with the

clutch.
