Repair information 4-191

7541-03x

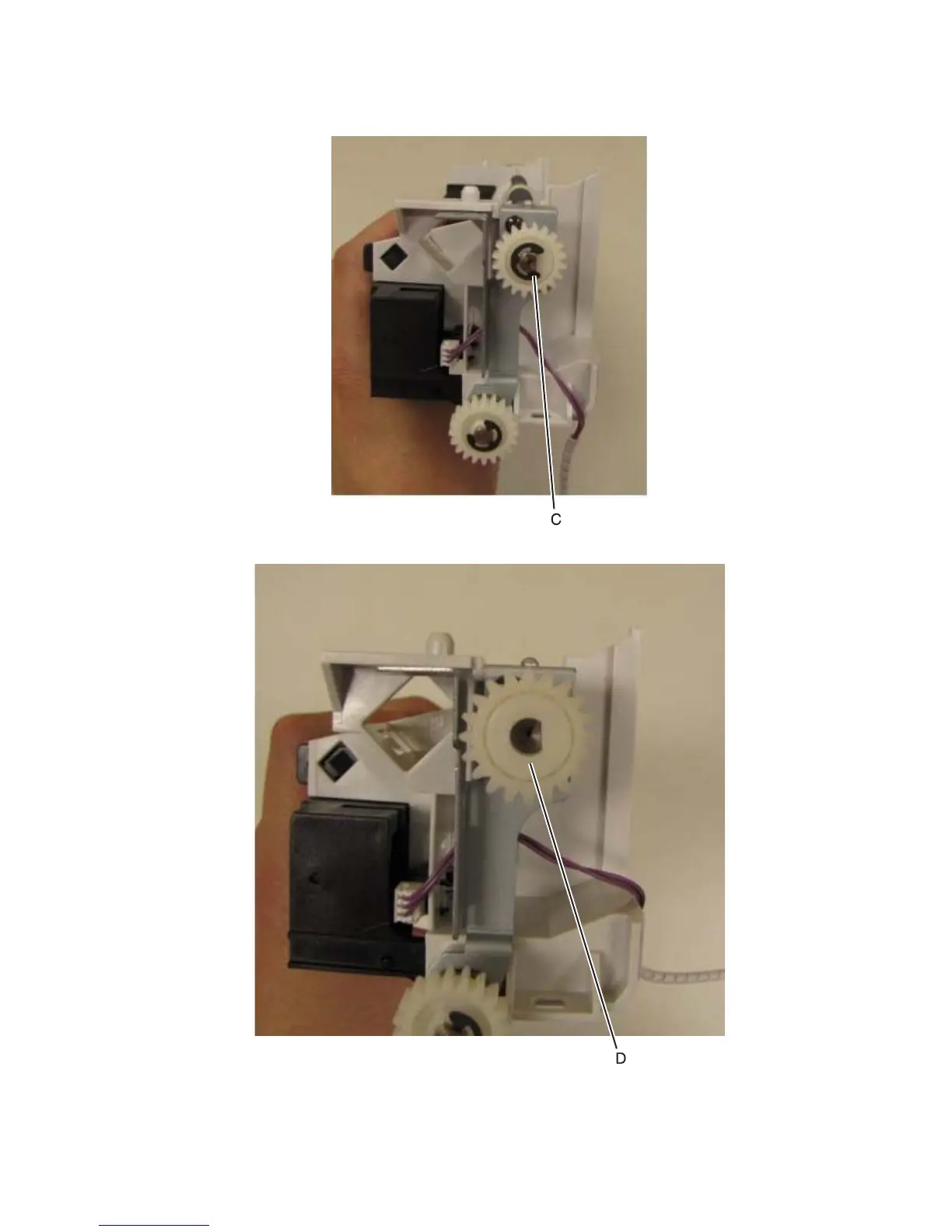

4. Remove the e-clip (C) securing the drive gear to the shaft.

5. Remove the drive gear (D) from the shaft.
