Repair information 4-193

7541-03x

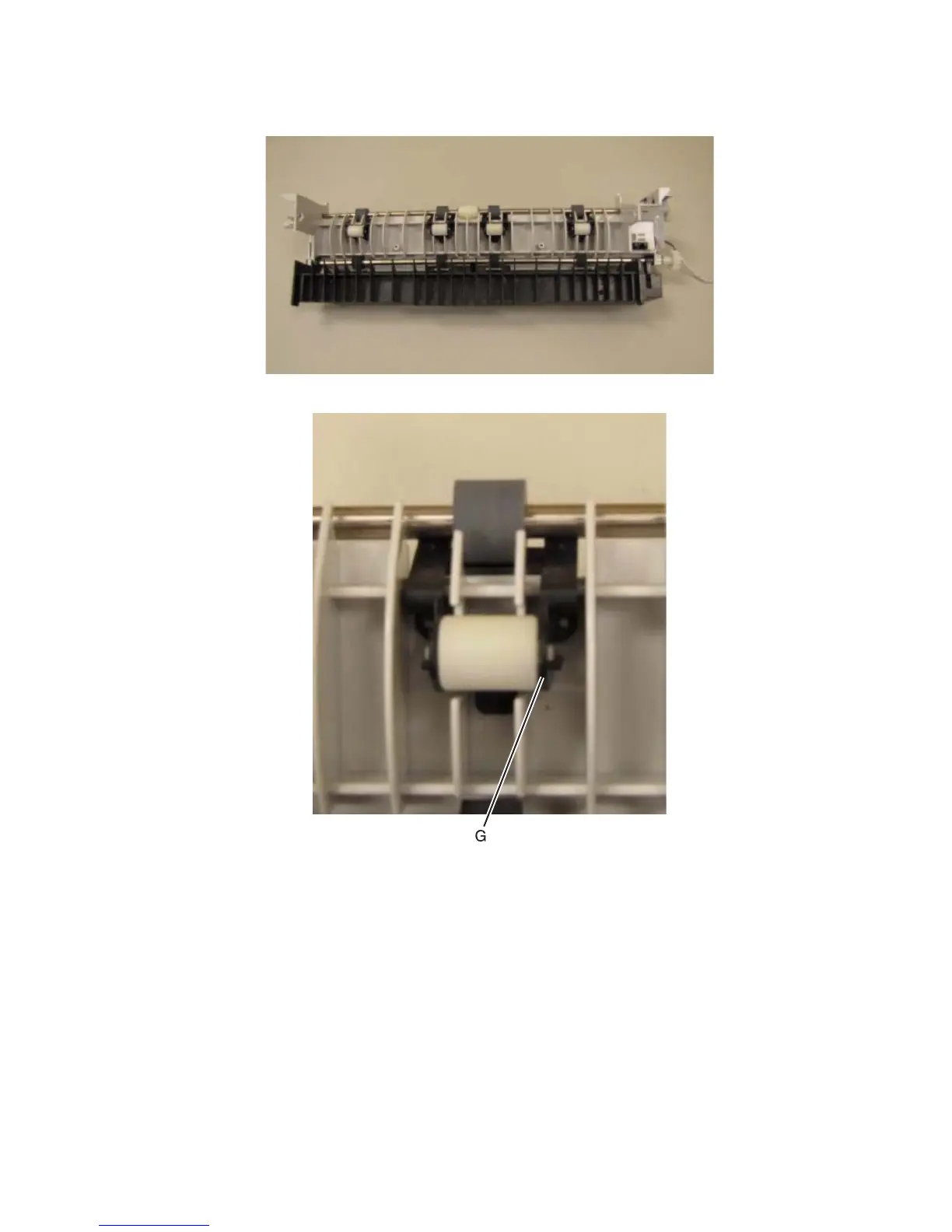

8. Open the paper exit unit, exposing the rollers.

9. Pull back the tab (G) to release the roller.
