To Use a SNVT_tod_event
1. Create a SNVT_tod_event in the data point configuration.
2. Add the SNVT_tod_event to the scheduled data points of a scheduler as described in
Section 6.12.4.
3. All three parts of the SNVT_tod_event are scheduled.
6.12.10 Using the Local Scheduler
Once the setup of the local scheduler is done, it is basically operational. It will immediately
start to work based on the configuration data downloaded through the configuration
software. You can verify the daily schedules and values of scheduled data points on the
Web UI (see Section 4.2.14). The local schedule can be altered over the Web UI or using
the network technology of the port, where the scheduler has been created.
6.13 Local Alarming
6.13.1 Create an Alarm Server
To generate local alarms, an alarm server needs to be created at first. The local alarm
sources will report alarms to that alarm server. The alarm server is the interface to access
local alarms. This can be done over the network or the Web UI.
To Create an Alarm Server
1. Under the port folder, select the Alarm sub-folder.
2. Right-click in the data point list view and select New Alarm Server ….
3. In the Create New Alarm Server dialog box (as shown in Figure 104) enter Name
and Description of the alarm server.

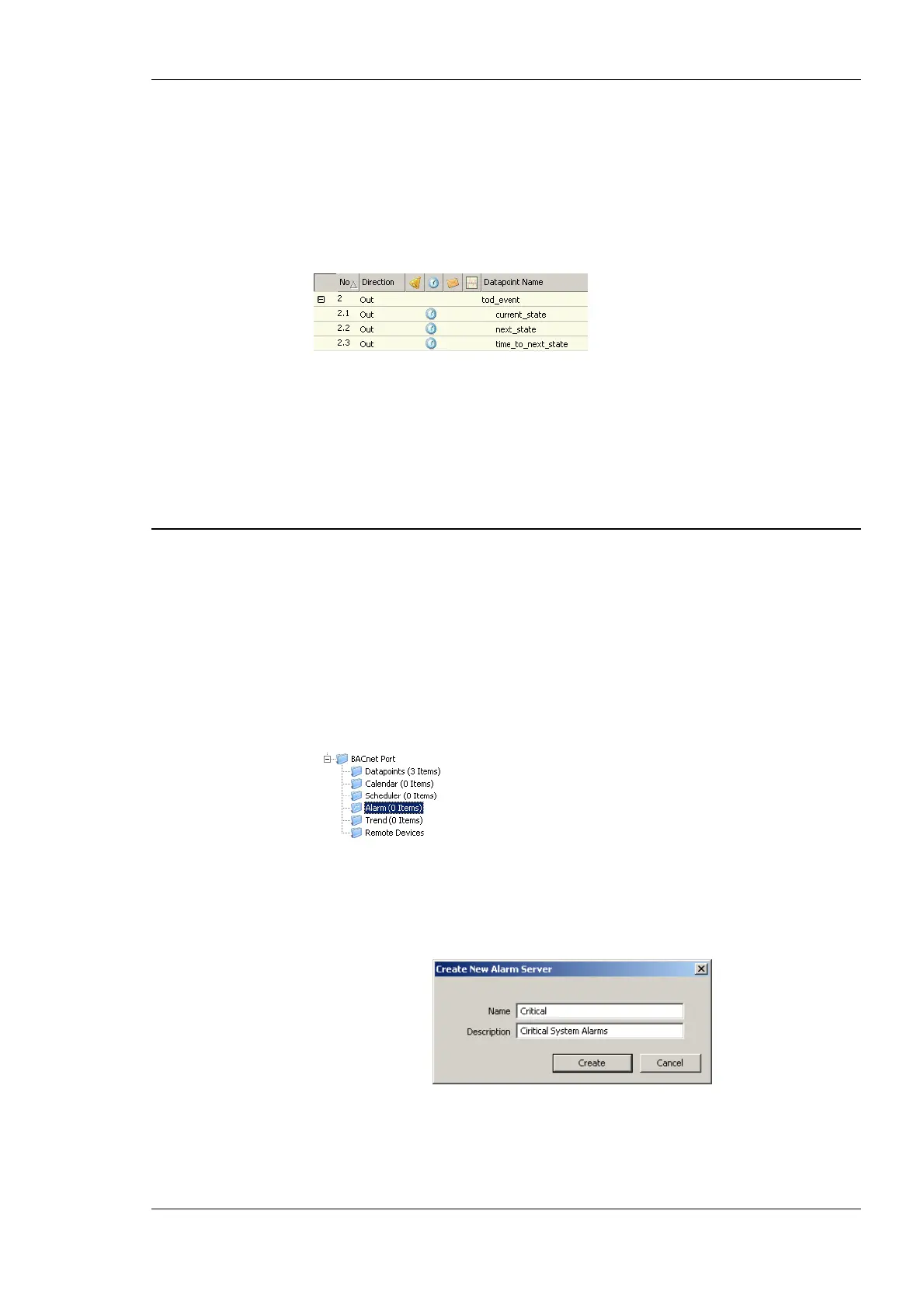

Figure 104: Create New Alarm Server dialog box.
4. Click Ok. The alarm server appears now in the data point list view.
