9.2 Firmware Update via the Console
To download the firmware via the console interface, the L-Gate must be connected to the
RS-232 port of a PC via its console interface as described in Section 10.2.1. You will need
the LOYTEC serial upgrade tool (LSU Tool), which can be downloaded from our
homepage at www.loytec.com.
Please make sure that the L-Gate console shows the main menu otherwise navigate to the
main menu or simply reset the L-Gate.
To Upgrade via the Console
1. Double click on the *.dlc file that comes with the new firmware package. This should
start the LSU Tool and load the firmware image referenced in the dlc file. Please note
that the dlc file and the dl file must be stored in the same folder. The start window of
the LSU tool is shown in Figure 118.

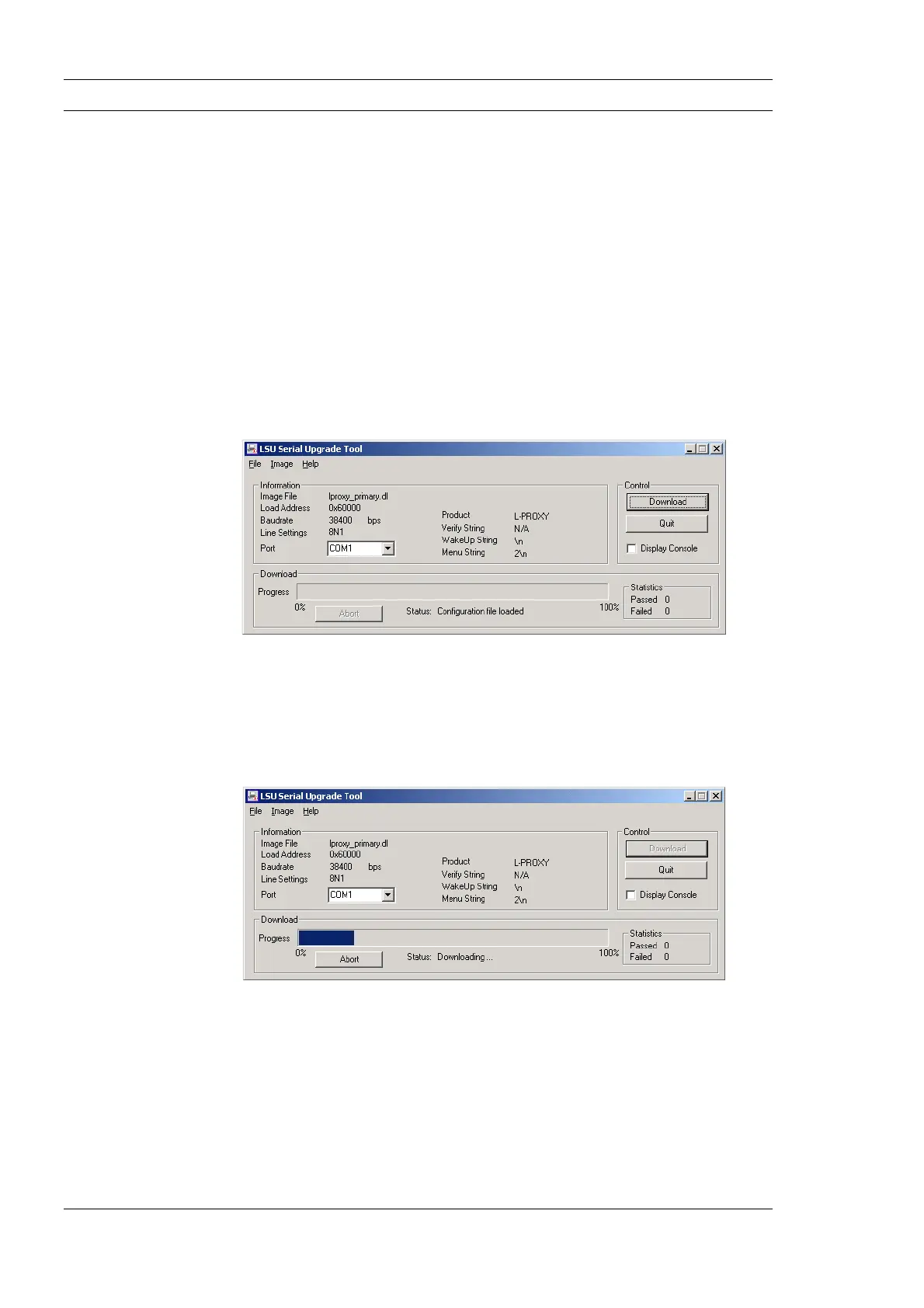

Figure 118: LSU Serial Upgrade Tool in Idle Mode
2. If the L-Gate is not connected to COM1 you can change the port to COM2, COM3, or
COM4. Make sure that the product shown under “Product” matches the device you are
upgrading. Press Download to start the download. A progress bar as shown in Figure
119 can be seen.
Figure 119: Progress Bar during Firmware Download.
3. If the upgrade is successful, the following window appears (Figure 120).
