L-Gate User Manual 18 LOYTEC
Version 3.2 LOYTEC electronics GmbH
3 Hardware Installation
3.1 Enclosure
3.1.1 LGATE-900
The L-Gate enclosure is 6 TE (1 TE = 17.5 mm) wide for DIN rail mounting, following
DIN 43 880 (see Figure 8).
4 5 6
Status Button
and LED
105
off
on
1 2 3 4 5 6 7
DIP Switch
6
0
55
Serial Number
Unique Node IDs
Order Number
85
Console
Connector
Power LED
Ethernet/EIA709
BACnet Status
LEDs
1 2 3
Ethernet
100Base-T
Ethernet
MAC Address
11
15 16 17

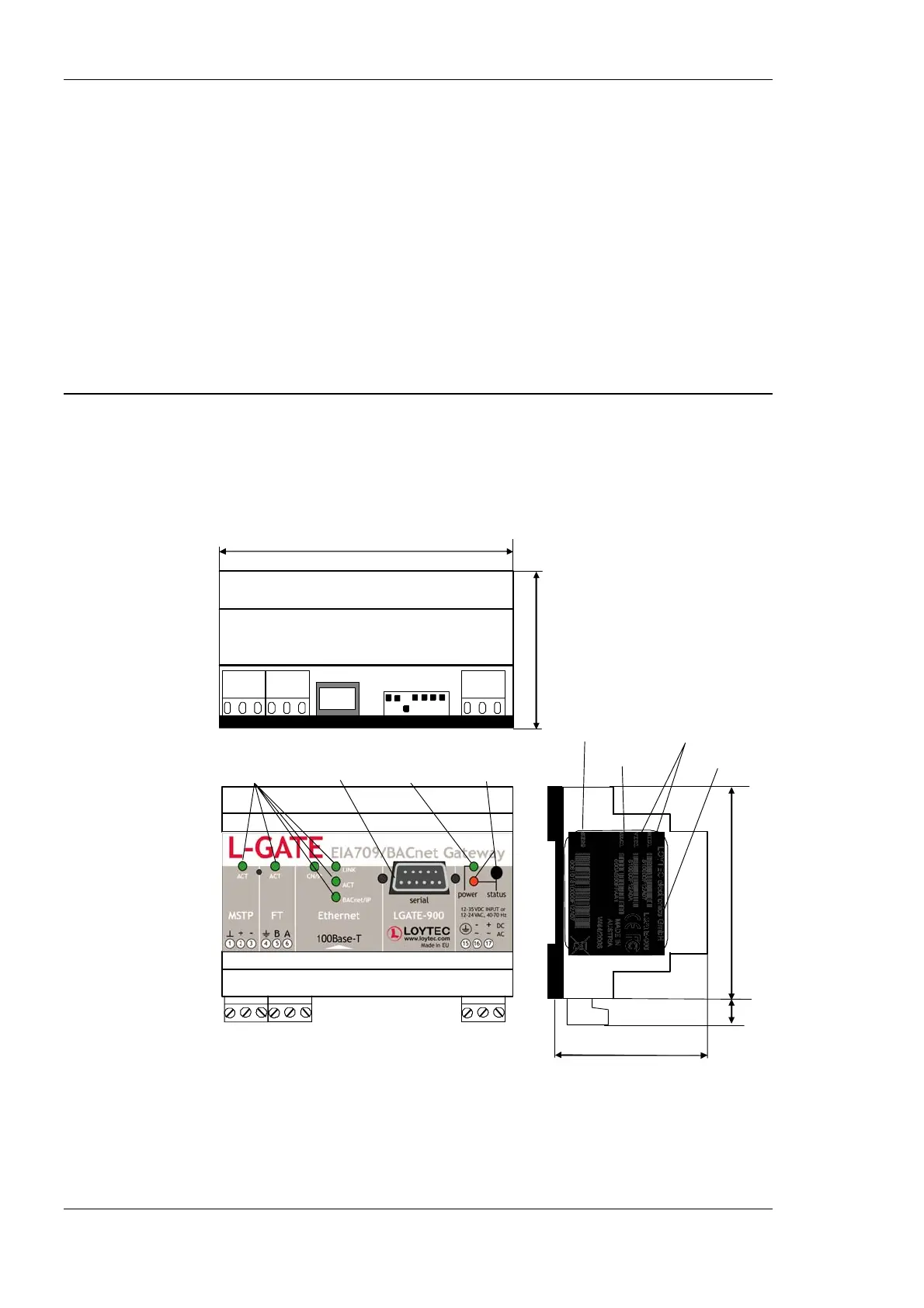

Figure 8: L-Gate Enclosure (dimensions in mm)
