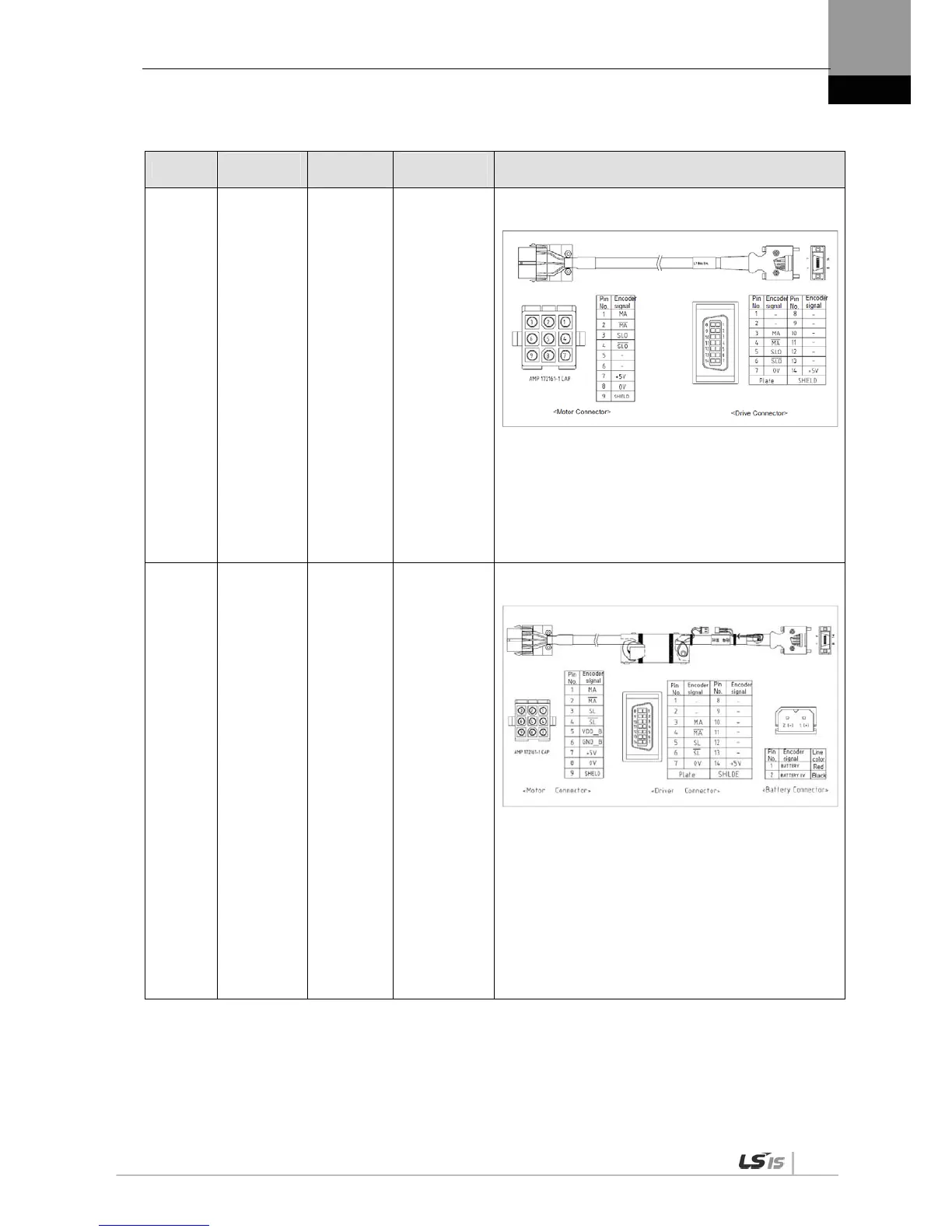

■ Option (serial encoder cable)
Category
Product
Name
Type Name
(Note 1)
Applicable
Motors
Specifications
For
signaling
Serial type
Encoder
cable
(small
capacity)
XLCS-
ECS
All models of
XML-SA,
(Will provide)
XML-SB
and
XML-SC
Series
1. Motor connection
a. Cap specifications (9 positions): 172161-1 (AMP)
b. Socket specifications: 170361-1 (AMP)
2. Drive connection (CN2)
a. Case specifications: 10314-52A0-008 (3M)
b. Connector specifications: 10114-3000VE (3M)
3. Cable specifications: 4Px0.2SQ (AWG24)
For
signaling
Multi turn
type
Encoder
cable
(Small
capacity)
XLCS-
ECS1
All models
of
XML-SA,
(Will provide)
XML-SB
XML-SC
SERIES
1. Motor connection
a. Cap specifications:(9Position): 172161-1(AMP)
b. SOCKET specifications: 170361-1(AMP)
2. Drive connection (CN2)
a. Case specifications: 10314-52A0-008(3M) or
SM-14J(Suntone)
b. Connector specifications:10114-3000VE(3M) or
SM-14J(Suntone)
3. specifications: 4Px0.2SQ or 4Px24AWG
Motor connection
Drive connection (CN2)
Motor connection
Drive connection (CN2)
