LSIS XDL-L7SA002X

7. Product Specifications
7-56

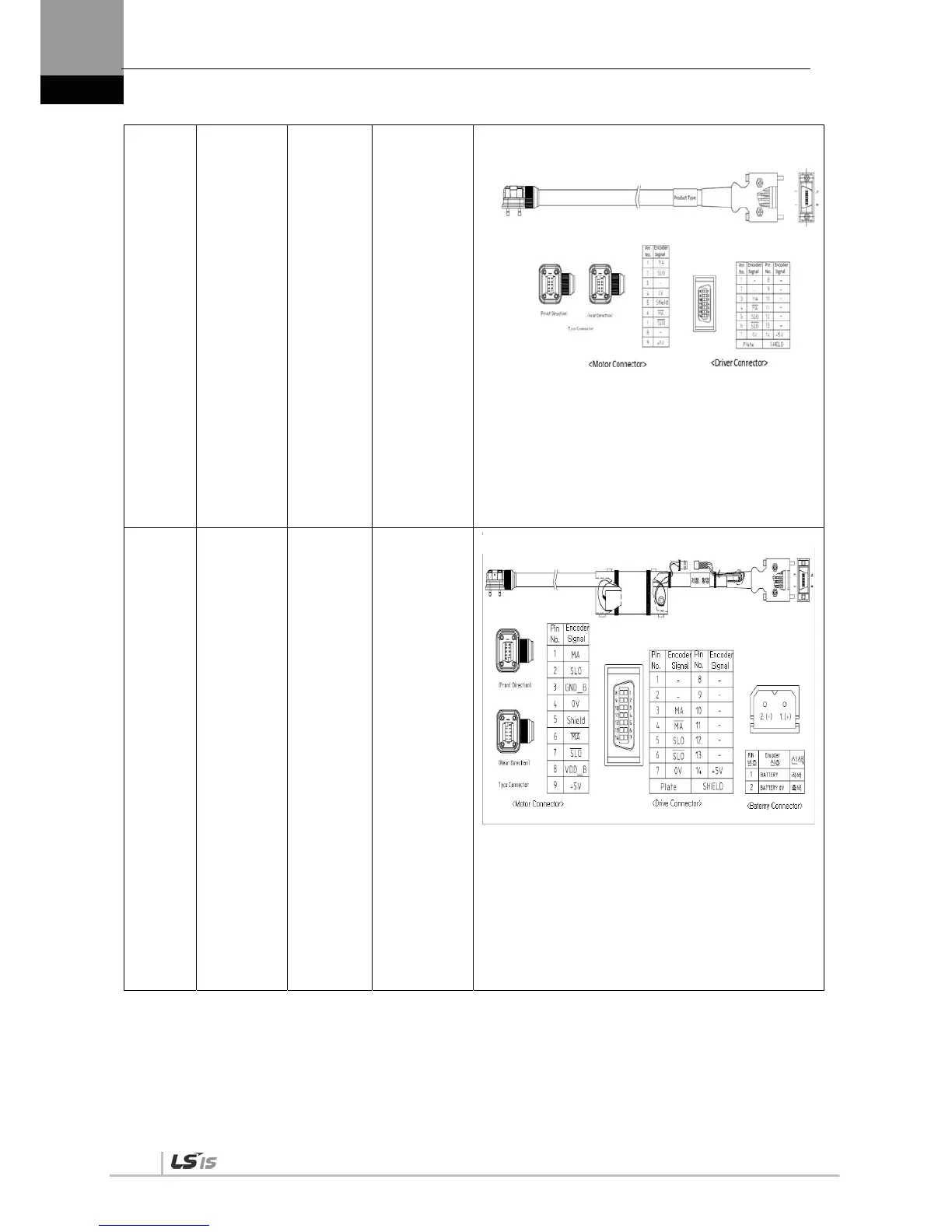

For
signaling
Encoder
cable for flat
type motor
(small
capacity)
XLCS-
EES
*Front :
XLCS-
EES
* Rear :
XLCS-
EES-R
All models
of
XML-FB
and
XML-FC
Series
1. Motor connection
a. Cap specifications: 2201825-1 (Tyco)
b. Socket specifications: 2174065-1(Tyco)
2. Drive connection(CN2)
a. Case specifications: 10314-52A0-008(3M)
b. Connector specifications: 10114-3000VE(3M)
3. Cable specifications: 4Px0.2SQ(AWG24)
For
signaling
Multi turn
Type
Serial
Encoder
Cable
XLCS-
EES1-
*Front :
XLCS-
EES1
* Rear :
XLCS-
EES1-
R
All models of
XML-FB
and
XML-FC
Series
1. Motor connection
a. Cap specifications(9 Position): 2201825-
1(Tyco)
b. Socket specifications: 2174065-4(Tyco)
2. Drive connection(CN2)
a. Case specifications: 10314-52A0-008(3M)
b. Connector specifications: 10114-3000VE(3M)
3. Cable specifications : 4Px0.2SQ(AWG24) or
4Px24AWG
Motor connection
Drive connection (CN2)
Motor Connection
Drive Connection
