2) Graph of Overload during Stop
Load(%)
AL-21
Occurrin
g Time
(sec)
MAX MIN Load(%)
AL-21
Occurri
ng Time
(sec)
MAX MIN
100% or
below
Infinite
110
4832.0 7731.2 2899.2
210
44.0 70.4 26.4
120
1208.0 1932.8 724.8
220
36.0 57.6 21.6
130
536.9 858.8 322.08
230
30.3 48.5 18.18
140
302.0 483.2 181.2
240
9.7 15.5 5.82
150
154.0 246.4 92.4
250
8.3 13.3 4.98
160
100.0 160.0 60.0
260
3.8 6.1 2.28
170
85.0 136.0 51.0
270
3.4 5.4 2.04
180
70.0 112.0 42.0
280
3.1 5.0 1.86
190
61.0 97.6 36.6
290
2.7 4.3 1.62
200
52.0 83.2 31.2
300
2.5 4.0 1.5

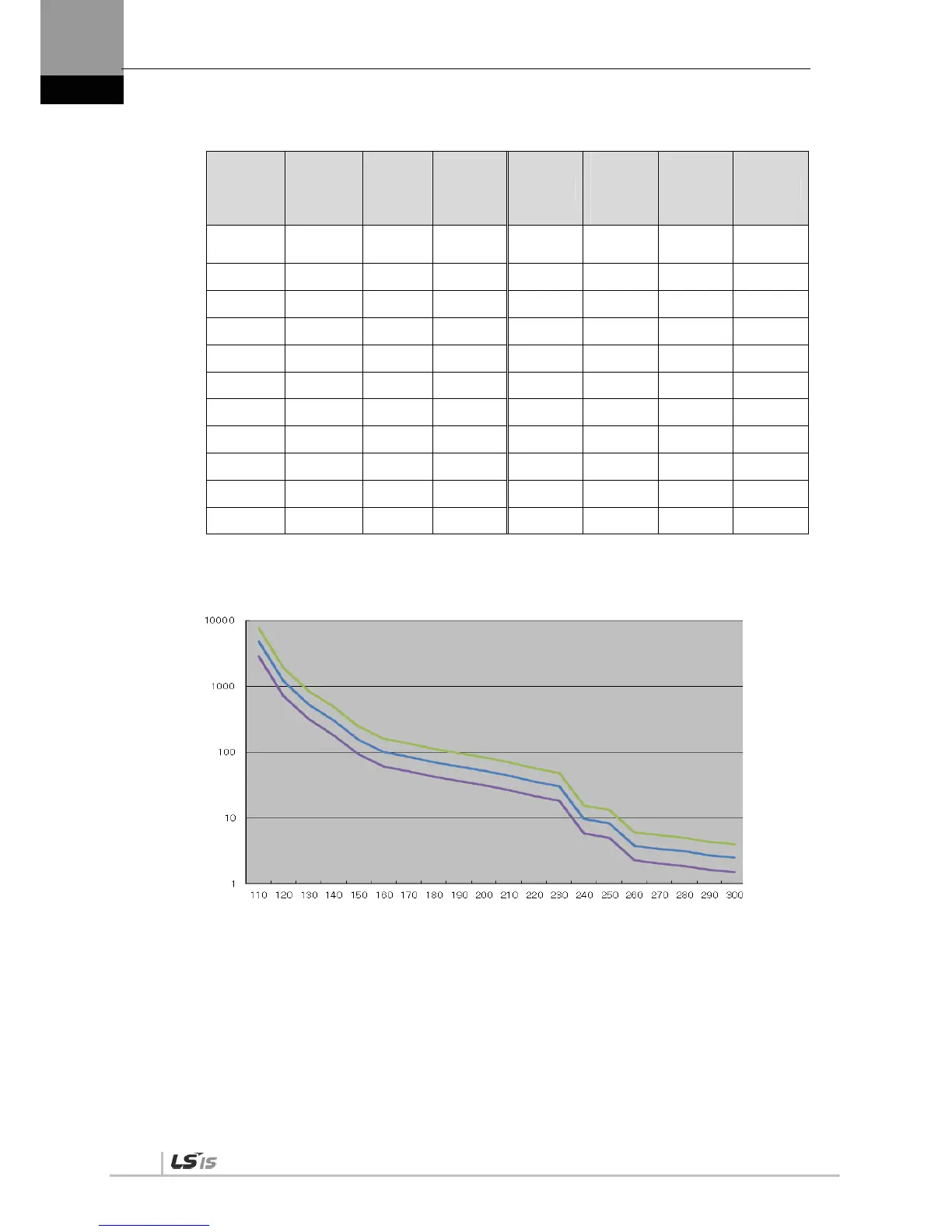

Load Curve During Stop
Time (sec)
Load Factor (%)
