4. Parameters
4-7
(4) Example of changing DAC output offset 1
([P0-19]: 0 [Unit/V] -> -500 [Unit/V])
Ord
er

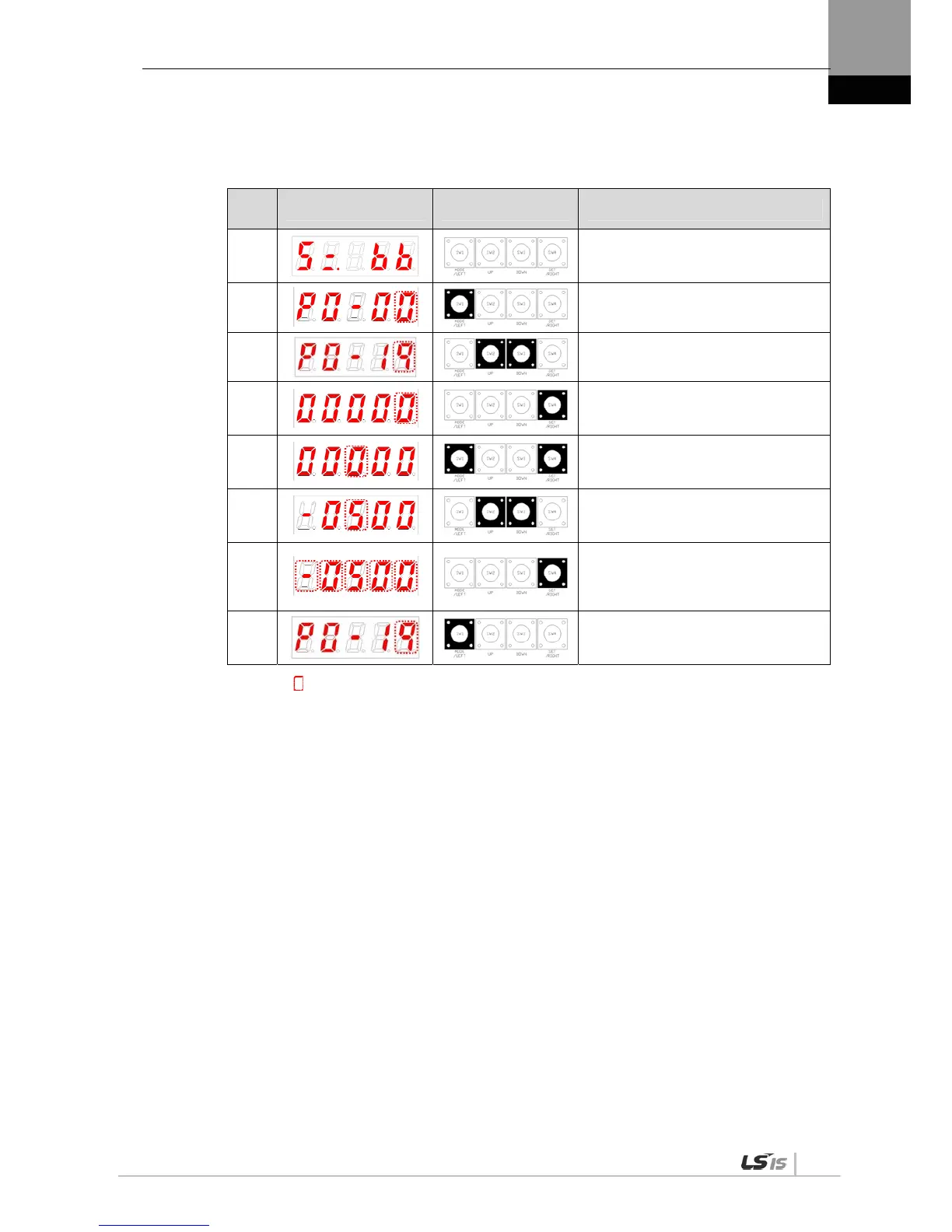

Loader Displays Keys to Use What to Do
1
Displays the speed control mode with
main power and control power
permitted.
2
Press [MODE] to move to [P0-00].
3
Press [UP] or [DOWN] to move to [P0-
19].
4
Press [SET] to enter parameter edit
mode. The parameter is displayed as
00000.
5
Press [/LEFT] or [/RIGHT] at the
blinking cursor to move to the desired
digit, DIGIT 3.
6
Press [UP] or [DOWN] at the blinking
DIGIT 3 position to change the number
to -0500.
7
Press and hold [SET] for approximately
one second. After two flickers, the
number will be saved as -0500 in the
parameter.
8
Press and hold [MODE] for
approximately one second to return to
[P0-19].
NOTE 1) “ ” indicates flickering.
If you hold down [UP] / [DOWN] at the current cursor in the parameter window, the number continues to
increase/decrease.
