4. Parameters
4-15

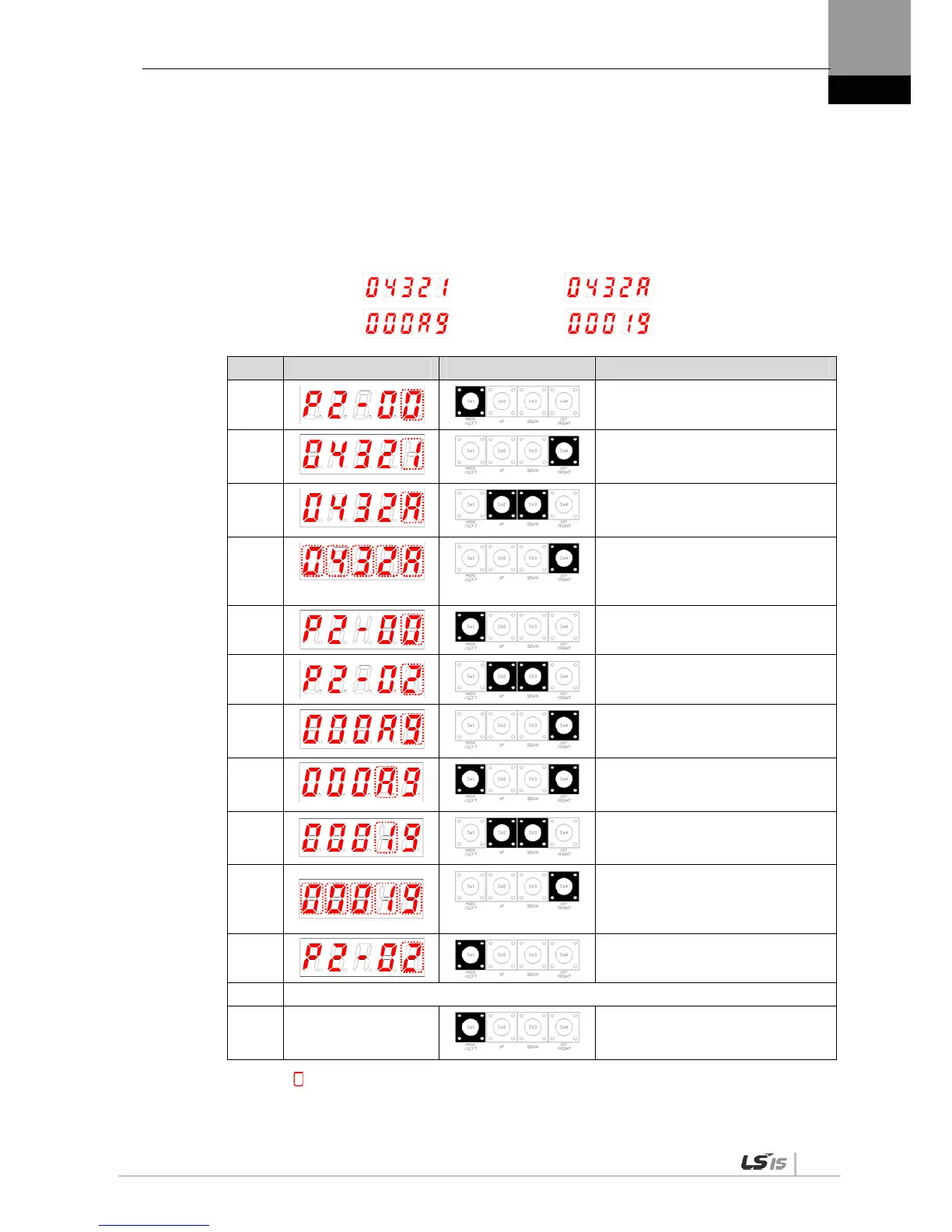

Examples of Changing Input Signal Allocation
The following is an example of changing input signal allocation.
The allocation signals of SVON (CN1-47) and STOP (CN1-48) can be switched in the
following sequence.
Before Changing After Changing
[P2-00]:
[P2-02]:
Order Loader Displays Keys to Use What to Do
1
Press [MODE] to move to [P2-00].
2
Press [SET] to enter parameter edit
mode. The parameter is displayed as
04321.
3
Press [UP] or [DOWN] at the blinking
cursor to change the number to
0432A.
4
Hold down [SET] for approximately
one second. After two flickers, the
number is saved as 0432A for the
parameter.
5
Hold down [MODE] for approximately
one second to return to [P2-00].
6
Press [UP] or [DOWN] at the blinking
cursor to change the number to P2-02.
7
Press [SET] to enter parameter edit
mode. The parameter is displayed as
000A9.
8
Press [/LEFT] or [/RIGHT] at the
blinking cursor to move to the desired
digit, DIGIT 2.
9
Press [UP] or [DOWN] at the blinking
cursor to change the number to
00019.
10
Hold down [SET] for approximately
one second. After two flickers, the
number is saved as 00019 for the
parameter.
11
Hold down [MODE] for approximately
one second to return to [P2-02].
12 ** Modification is not possible with the servo on &. Reset the parameter.
※
In case of exiting
without saving the set
value
Hold down [MODE] for approximately
one second to return to the parameter.
NOTE 1) “ ” indicates flickering.
