(E) 7-9
7. Operation Method
LH71A / LH72

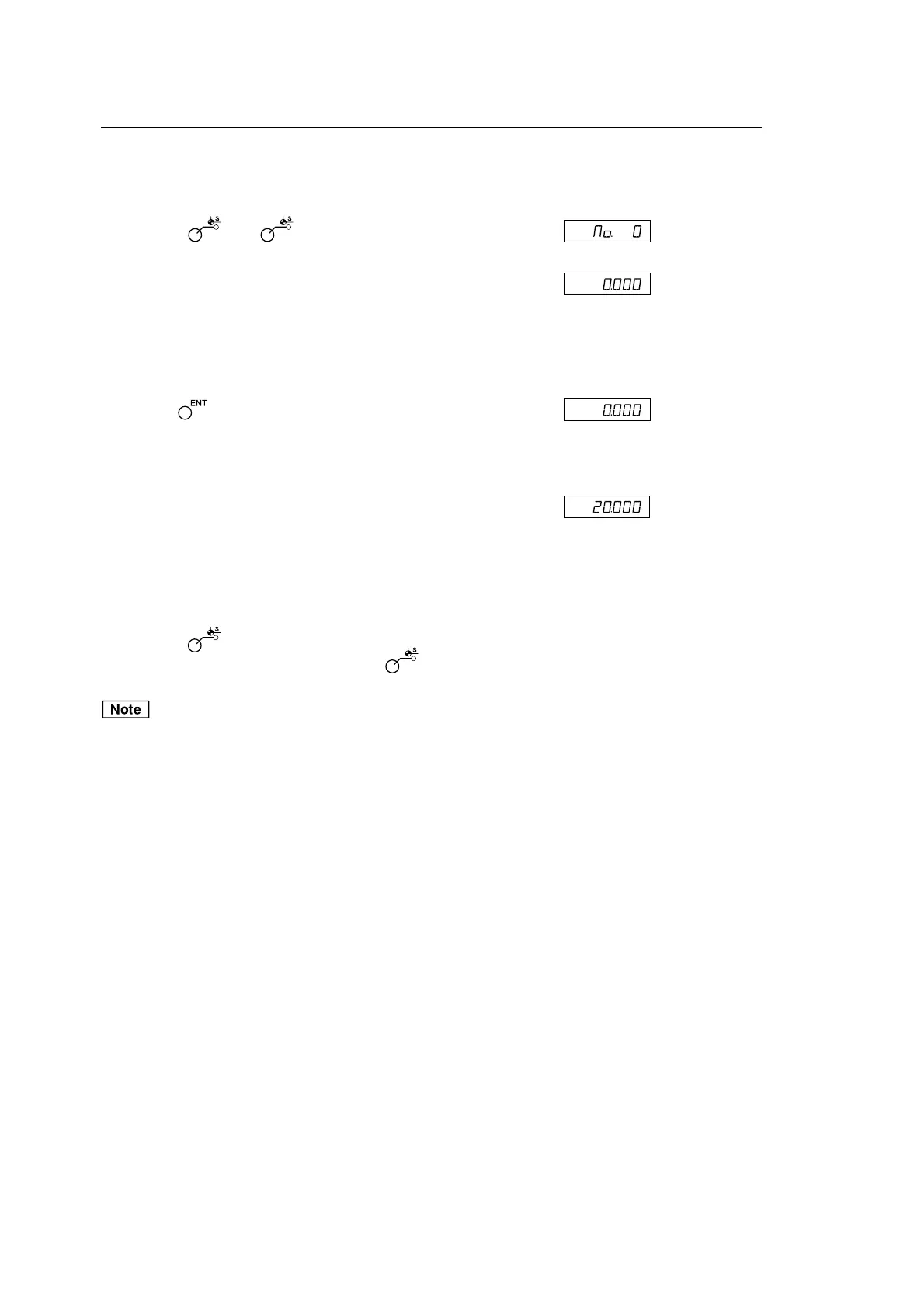

Calling the datum point
The machining datum point and the multiple datum point are called.
Display
1 Press the key. ( lamp lights up)
↓
2 Enter the datum point No. to be called.
No. 0: Machining datum point
No. 1~: Multiple datum point
3 Use the key to finalize the setting.
The current value becomes the datum point.
The displayed multiple datum point is the value resulting from
the addition of the offset of each multiple datum point to the
machining datum point.
4 Press the key.
The system exits the datum point mode. ( lamp goes out)
ABS indication remains on during datum point mode.
The machining datum point (No. 0) is used as the basis of linear compensation.
(Position of datum point value 0 = Compensation amount 0)
(The last edited
No. followed by
the current
value is
displayed.)
No. 0 (Machining datum point
indicator)
: ABS lamp lights up
No. 1~ (Multiple datum point
indicator)
: ABS lamp flashes
