7-24 (E)
7. Operation Method
LH71A / LH72
Display (The display below shows the
inside measurement.)

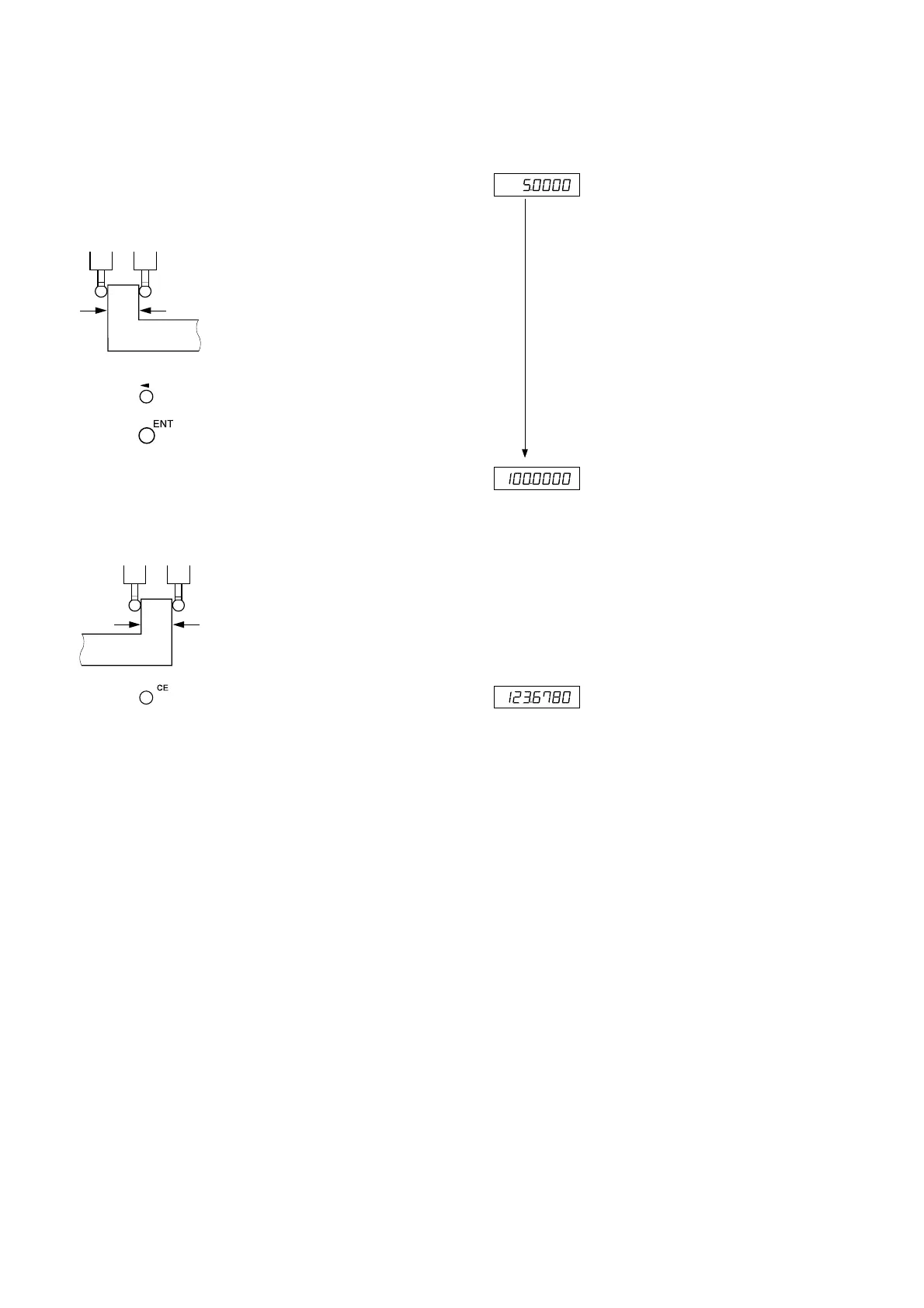

5 Touch the feeler ball of the side A (side C) of the workpiece.
As soon as the workpiece is touched, counting is started. The
beep sounds while the workpiece is being touched.
6 Press the key.
7 Press the key.
8 Touch the feeler ball to the side B (side D) of the workpiece.
(The axis label flashes.)
As soon as the workpiece is touched, a beep sounds and the
display value is held. This value is L
1
(L
2
).
9 Press the key. (The axis label lights up.)
The hold is cancelled, and the current position is now displayed.
AC
DB
(Current value flashes)
Counting starts
