LH71A / LH72
(E) 4-3
REMOTE RESE
T
TO
UCH SENSOR
For the connections when using the addition function with lathe function, see page 4-4.
Ground wire
Screw down firmly.
Clamp the cable to prevent
the connector from pulling
out.
Provide slack as shown to
ensure that force is not
being applied to the
connector.
Bracket
M4 × 16 anchor
bolts, 2 pcs.
(supplied)
PSC-21/22/23 AC adaptor (sold separately)
100 - 240 VAC±10% 50/60 Hz
Get power from lamp line.
Measuring
unit input
First axis
2
3
DC output connector

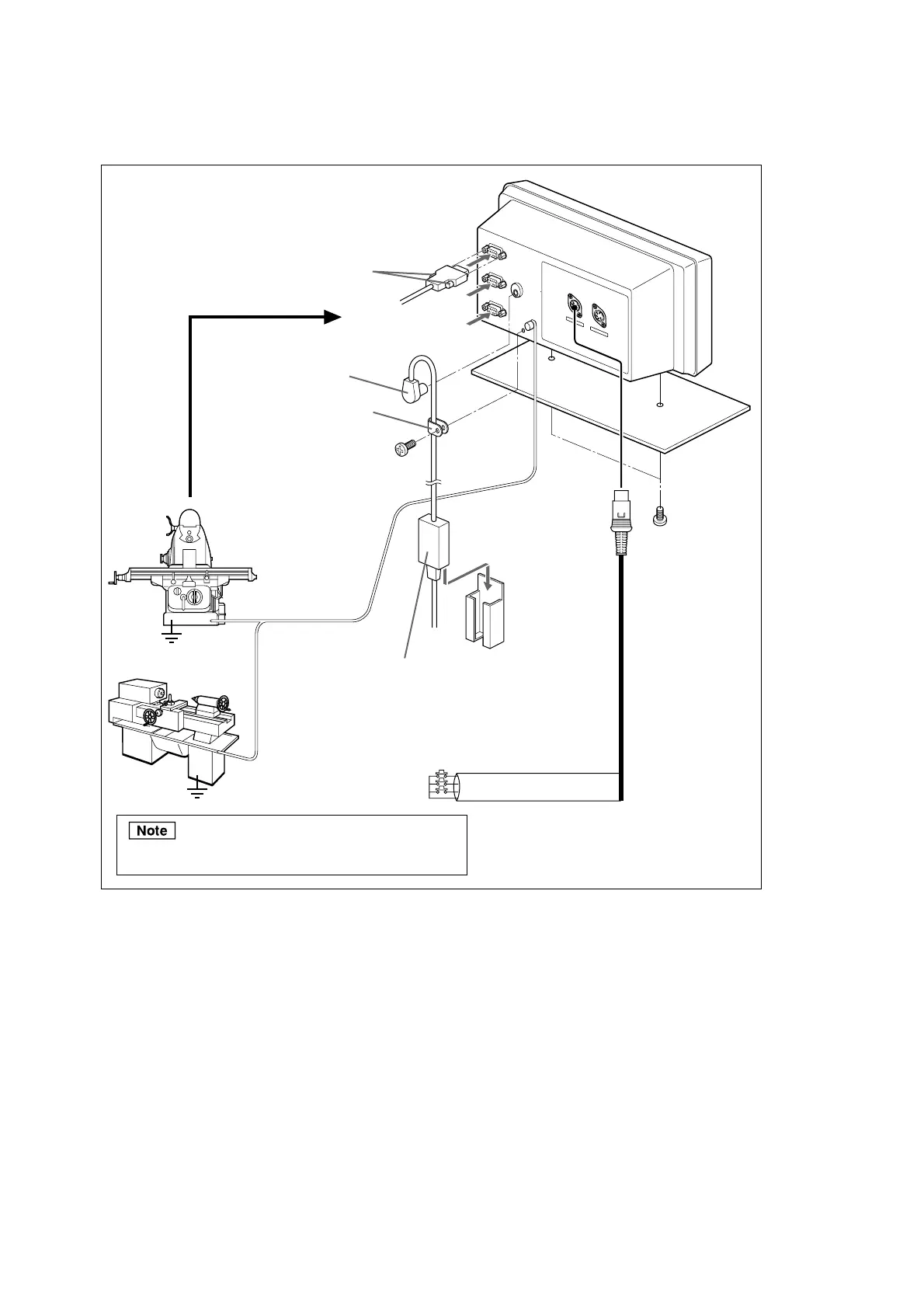

4. Installation and Connection of Unit
Connect the supplied ground wire to ensure that the counter
unit is the same potential as the machine proper.
First axis
Second axis
Third axis
Shielded cable
Remote reset switch
