103 HD96-24-CC-TP User Manual

Aux Linking & Stereo page

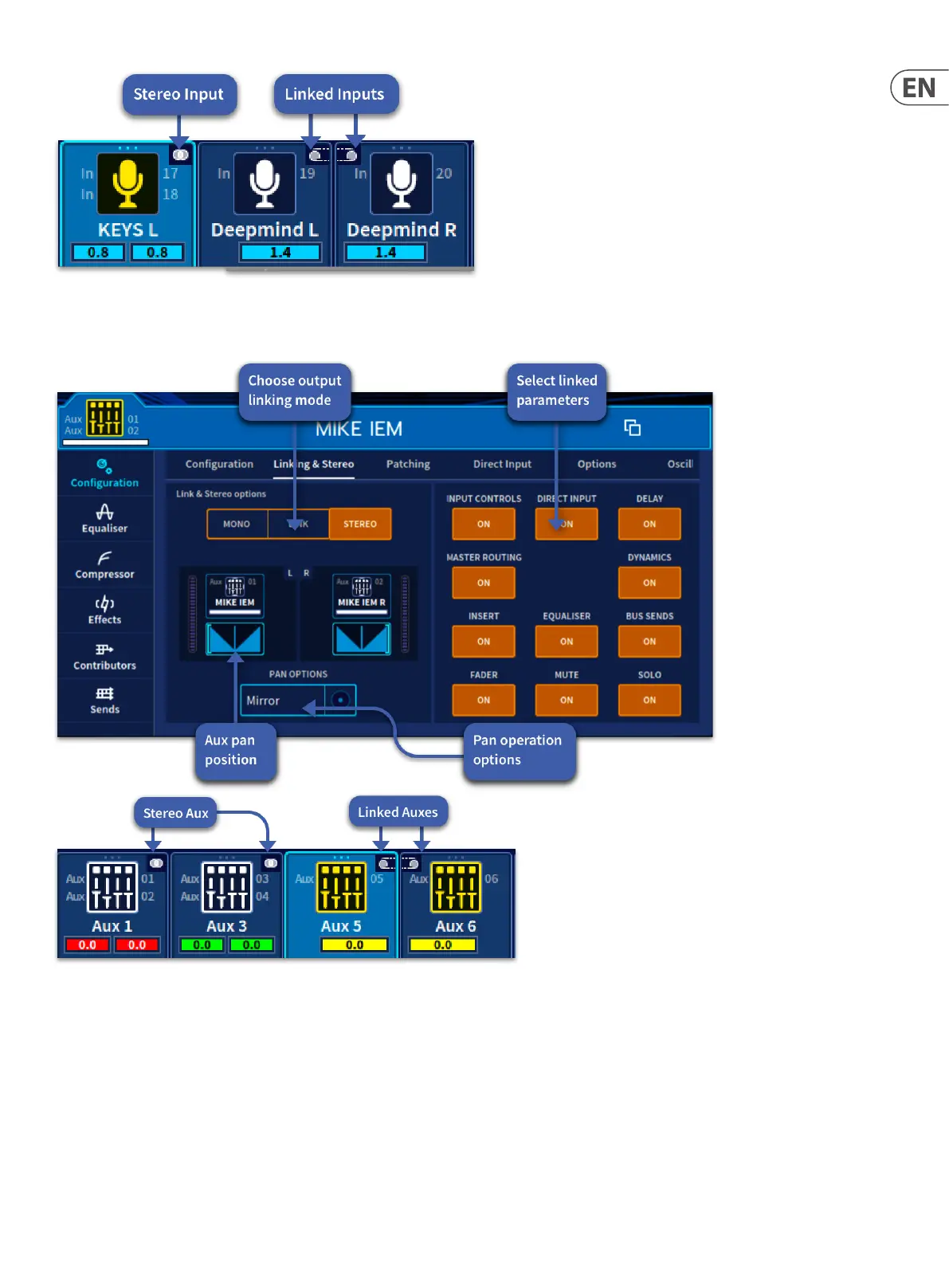

Available link options are displayed for Aux paths on the right-hand side of the widget. Choose link mode as described in input channel linking.w
