35 HD96-24-CC-TP User Manual

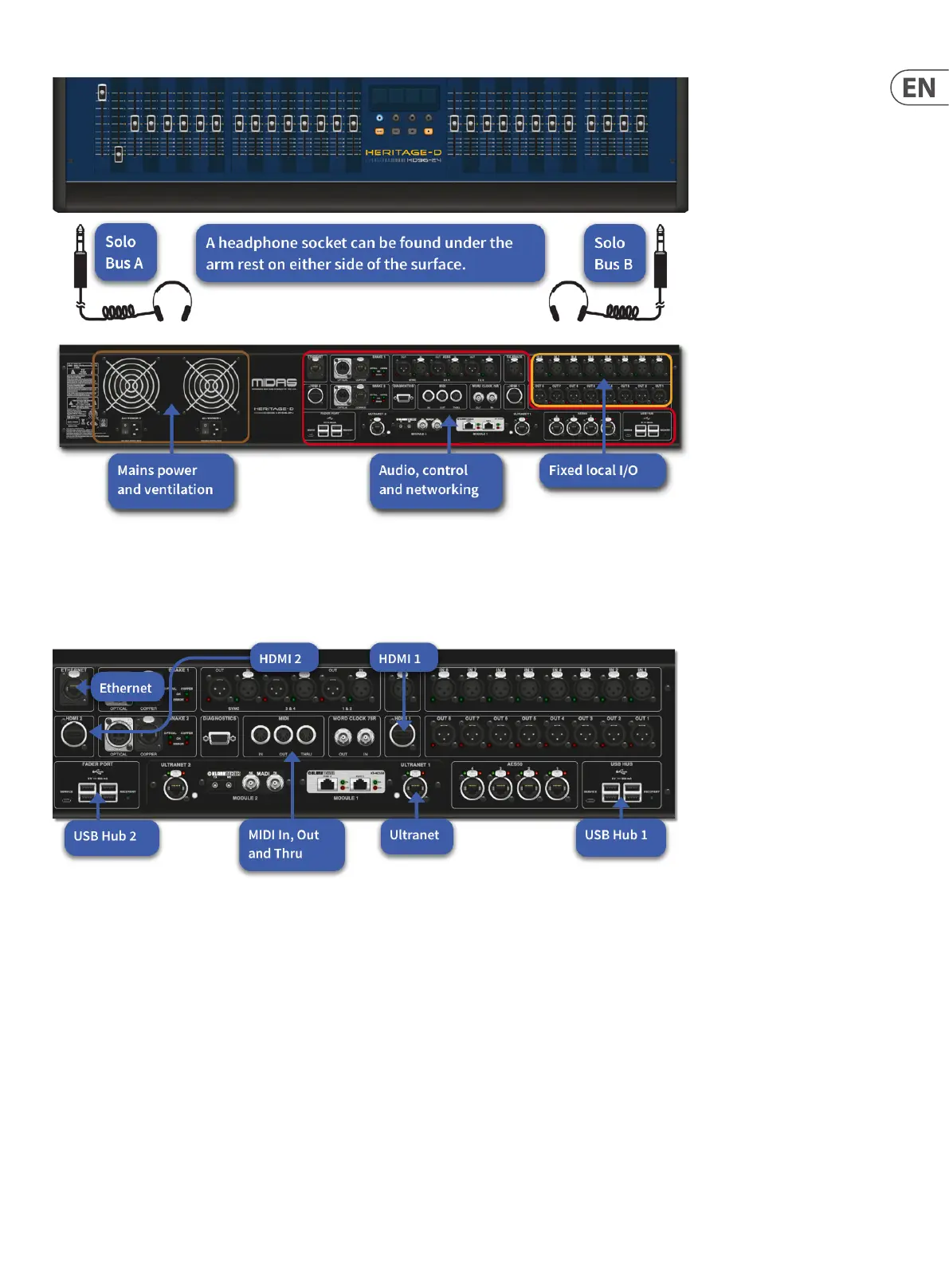

A connector panel on the rear of the control surface has two main sections. On the left are two mains power inlet and ventilation assemblies, with a DC power switch
below. The right-section contains connections for the Snake/Fibre Multicore, Ethernet, four, AES50 ports, eight analogue audio inputs and outputs, three AES3 inputs
and outputs, diagnostics, word clock, Two HDMIâ„¢ external monitor outputs, Midi, Talkback, two expansion card slots and USB Hub.
External interfaces and peripheral devices
Various devices can be used with the HD96-24.
MIDI Standard 5-pin connectors are housed in the rear panel for use as MIDI IN, OUT and THRU ports. These are also tted on some I/O units (DL231, DL251 for
example) and, therefore, are available at both the FOH and the stage locations.
USB 2 x 4way USB 3.0 hubs are provided on the rear of the HD96-24. In addition, a USB port can be found to the right of GUI screen for convenient le transfer.
Note: The Recovery buttons next to the USB hubs should NEVER be pressed unless advised to by the Midas support team. If, for some reason one of the button has be
pushed, audio will stop, and the screen may turn o depending on which button is pressed. The console will then require a power cycle to return to normal function.
HDMI the HD96-24 has 2 HDMIâ„¢ connections on the rear panel to connect extra displays.
Ethernet Port used for connecting the HD96-24 to a network.
Ultranet 2 x Ports for connecting Ultranet enabled devices.
