Midas HD96-24-CC-TP

225 HD96-24-CC-TP User Manual

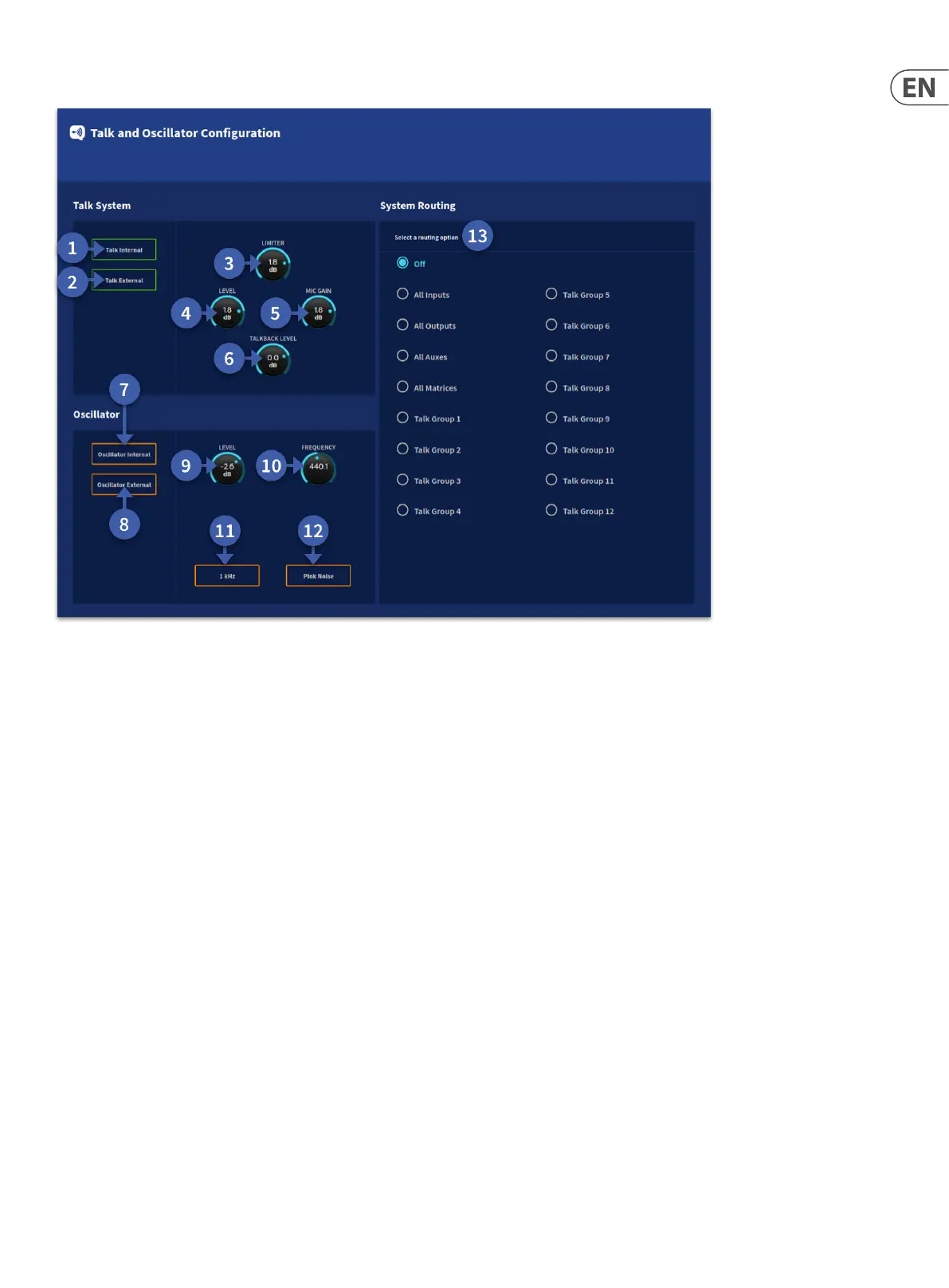

Talk & Oscillator Conguration
1. Engage the Talk bus to internal.
2. Engage the Talk bus to external.
3. Talk bus Limiter to protect against loud signals.
4. Talk bus level control.
5. Talk Mic Gain control.
6. Talkback level control.
7. Send the Oscillator to the internal bus.
8. Send the Oscillator to the external bus.
9. Level control for the Oscillator.
10. Frequency control of the Oscillator (50 Hz to 5 kHz).
11. Oscillator xed to 1 kHz.
12. Turn the Oscillator into a Pink Noise generator.
13. Various routing options to send the Talk and Oscillator to.
