195 HD96-24-CC-TP User Manual

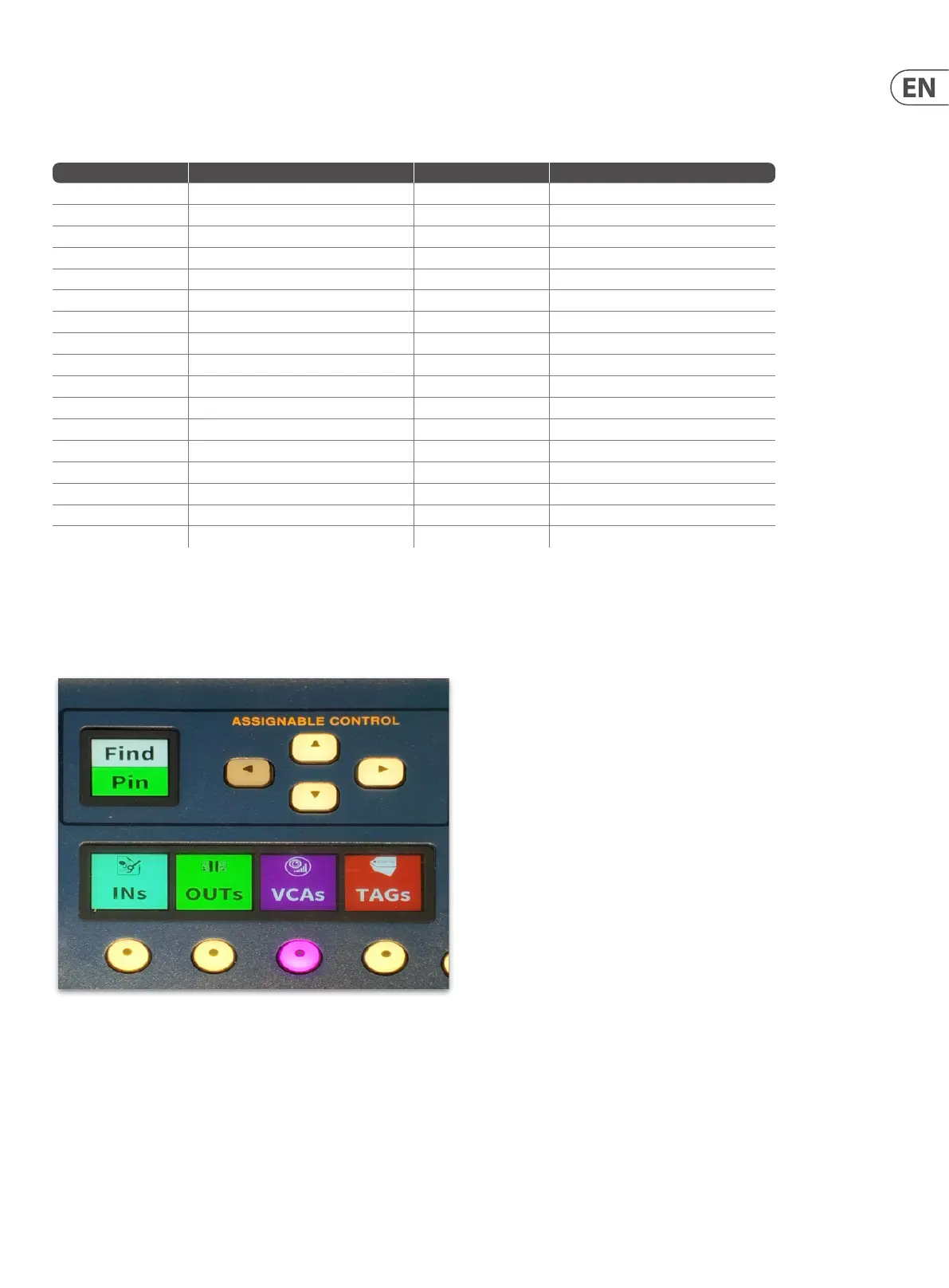

Controlling the Assignable rotary controls
The Assignable Controls can be scrolled through by using the up and down arrows. The left and right arrows open up various dierent settings associated to the
selected item. As standard there are 8 pages of functions with extra parameters accessed via the left and right arrow buttons. Up to 20 pages maximum can be
assigned with various dierent functions as needed.
Rotary Control Rotary Function Button Type Button Function
Pan Adjust Pan position Stereo Orange = To stereo Bus
Preamp/Tape Gain Adjust the Gain 48v Red = 48v active
HPF/LPF Frequency Adjust the HPF/LPF Freq HPF/LPF On Toggle the HPF/LPF On/O
Comp Thresh Adjust the Threshold Comp On Toggle the Comp On/O
Comp Ratio Adjust the Ratio Comp On Toggle the Comp On/O
Comp Gain Adjust the Gain Comp On Toggle the Comp On/O
Gate Thresh Adjust the Threshold Gate On Toggle the Gate On/O
Gate Range Adjust the Range Gate On Toggle the Gate On/O
EQ Band 1 Adjust Band 1 Gain EQ On Toggle the EQ On/O
EQ Band 2 Adjust Band 2 Gain EQ On Toggle the EQ On/O
EQ Band 3 Adjust Band 3 Gain EQ On Toggle the EQ On/O
EQ Band 4 Adjust Band 4 Gain EQ On Toggle the EQ On/O
Trim Adjust the Trim level Send On Select Output On/O
Trim Adjust the Trim level Send Pre Toggle Pre/Post fade
Trim Adjust the Trim level Send AFL AFL the channel
Find Scroll to change 'Pinned' channel Pin Pin Channel to fader
Find Scroll to change 'Pinned' channel Reset Pin Reset 'Pinned' channel.
Pinned Channels
Any channel type can be pinned to any position on the surface.
Use the Assignable Control up and down arrows to navigate to the Find/Pin page.
