221 HD96-24-CC-TP User Manual
Chapter 25. Multiple Consoles and Other Devices
Sharing A and B mic preamp inputs
The DL231/431 has two preamps per channel, A and B. To use either the A or B side connect directly to the preamp (A or B) you wish to use.
Note: Only A or B has control of 48v which is set in the I/O box.
DL231 outputs can be patched from any connected console but the DL231 decides which console or direct split of the inputs is in use. The DL231s outputs can be set to
either:
1. AES50 A
2. AES50 B
3. Mic Amp A
4. Mic Amp B

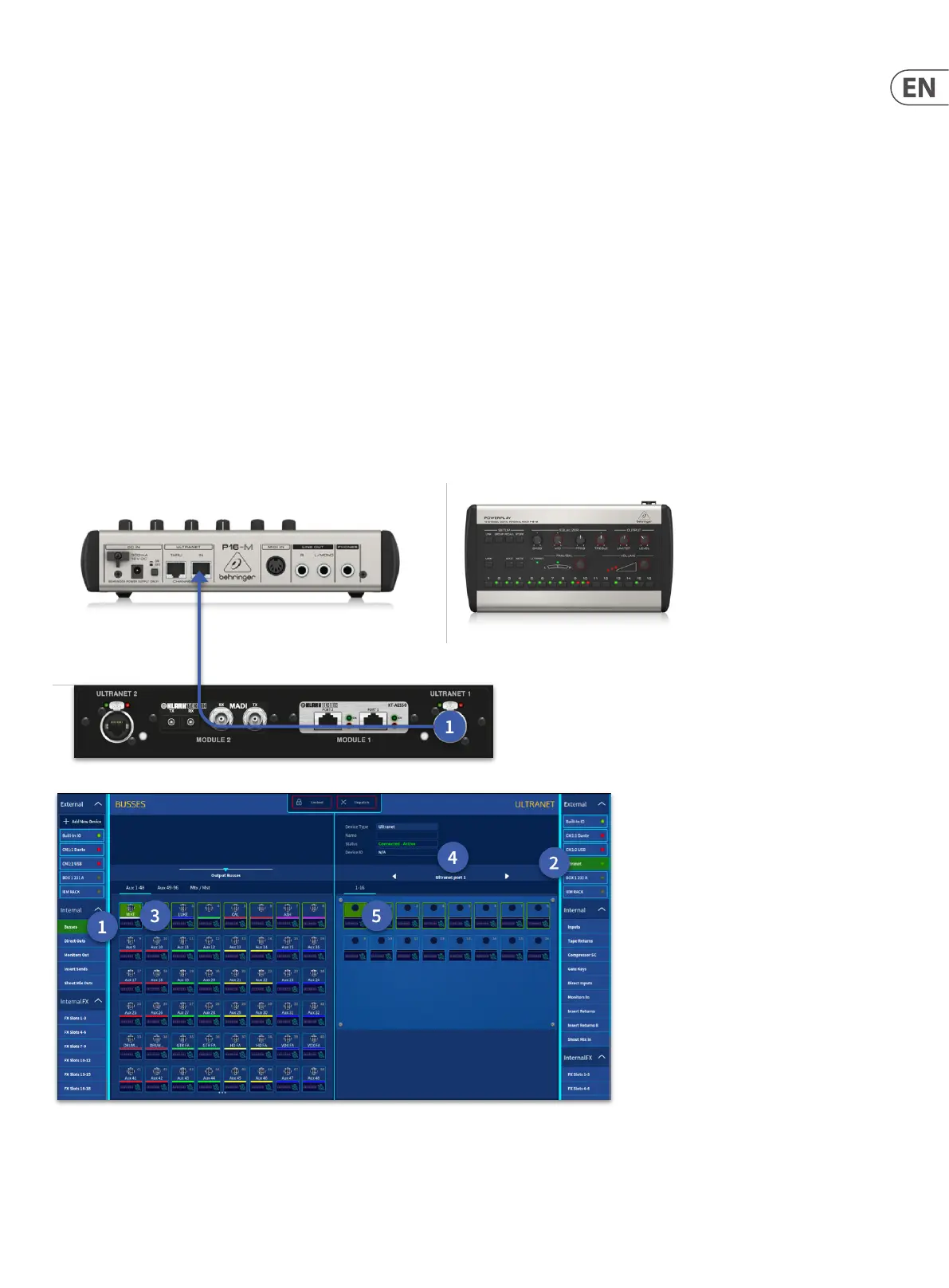

Ultranet
he HD96-24 system has two ultranet ports which allow up to 16 outputs per connection. To connect to an Ultranet enabled device such as a Behringer P16-M connect
the output from ultranet port 1 to the input of the P16-M.
