127 HD96-24-CC-TP User Manual
3. Check the individual eect is turned on to use the inserted eect.
4. Check the Insert is also turned on in order to use all the inserted eect.
5. Press the Edit button to open the eect browser to edit settings.
6. The available Eects Slots within the system are displayed at the bottom of the window. The remaining slots turn red when only 4 or less slots are available.
7. Eect rack slot position number and sub slot location.

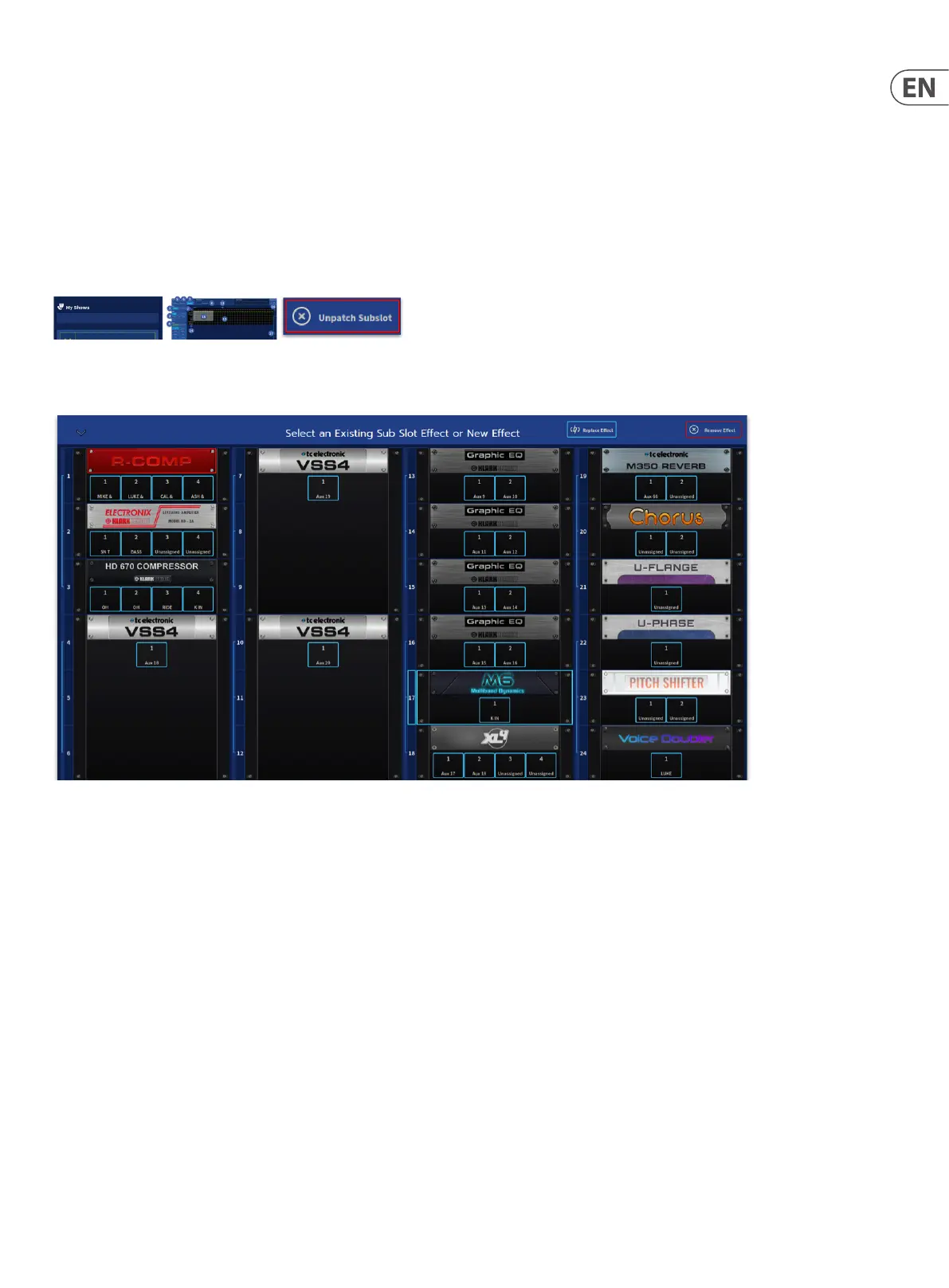

Eects Browser
The Eects Browser allows you to see an overall view of the eects and how the DSP has been allocated. It allows you to insert an eect on the current channel, replace
an eect or unpatch from sub slots.
The blue boxes display how many eects can be used per DSP slot. In the example below 4 x R-Comps can be seen in slot 1 and an instance of VSS4 is lling slot
4,5 and 6.
