87 HD96-24-CC-TP User Manual
Patching

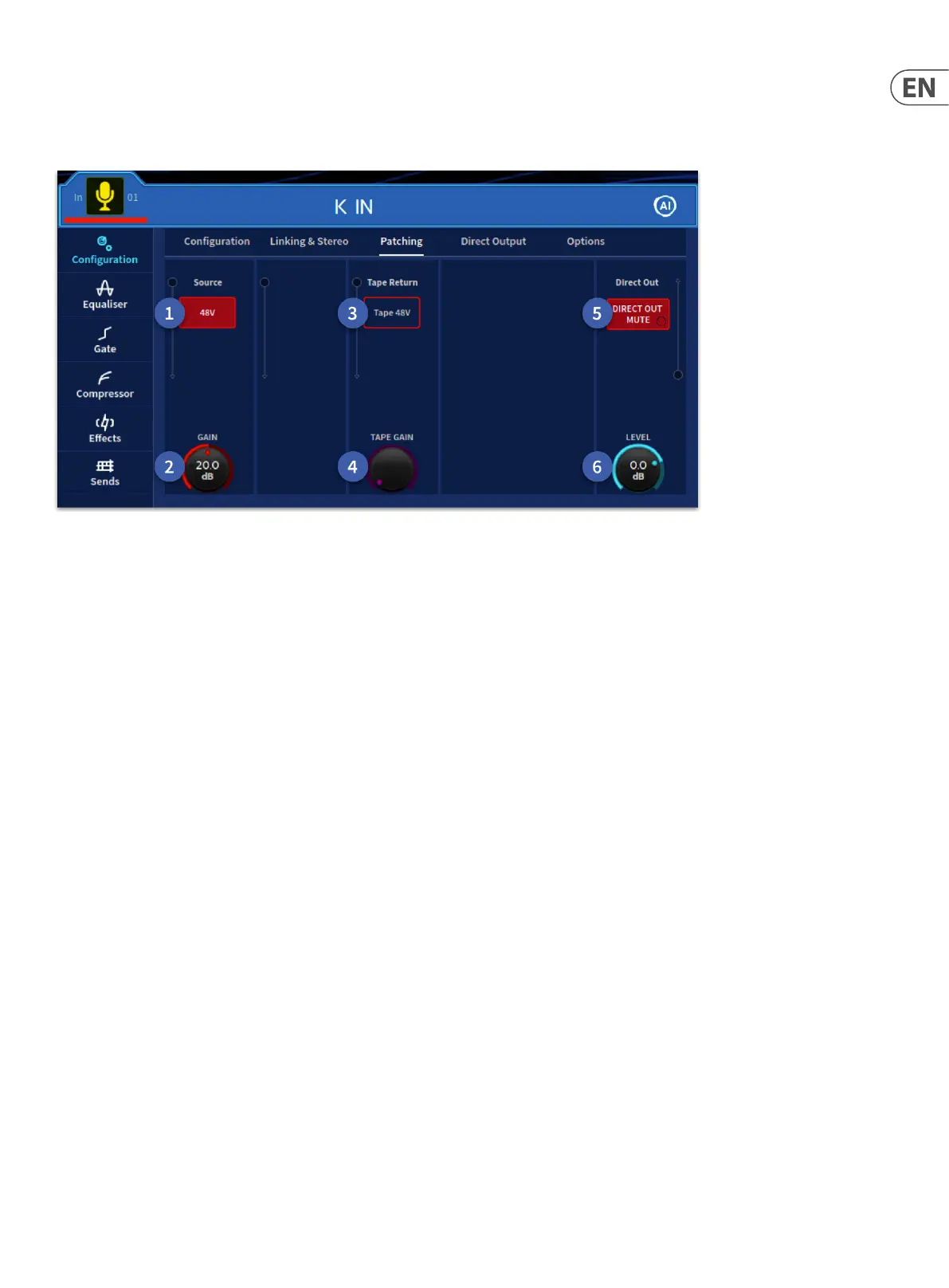

This page gives an overview of where the channel is patched to and from. It’s a great place to check all connections are correct for the selected channel. Listed below
are the various options available to patch the selected channel to and from various internal sources and destinations or to external devices.
1. 48 V on/o.
2. Patch Source information. Press to navigate to the patching page (this is the same for all similar icons in the console).
3. Analogue mic preamp Gain (-2.5 dB to 45 dB).
4. Tape Return 48V (can be used as an alternative input source if required).
5. Tape Return patching information.
6. Tape Gain (-2.5 dB to 45 dB).
7. Compressor Side Chain patching information.
8. Gate Key patching information.
9. Insert Send On/O
10. Insert Send patching information.
11. Insert Return A patching information.
12. Insert Return B patching information.
