14. Change page between Conguration Macros & the Oscillator tabs.
15. Talk/Shout source selection pop out.
16. Send Pan Link makes contributions follow the pan position of the channel they are derived from.
17. Choose the Talk or Shout Mixer (1-12) source.
Select the outputs you wish to change by tapping each one individually or select all outputs in that current tab by pressing and holding on one of the aux or matrices
displays. To remove individual outputs when all outputs have been selected, simply tap on that output. To clear all, press and hold on an output.

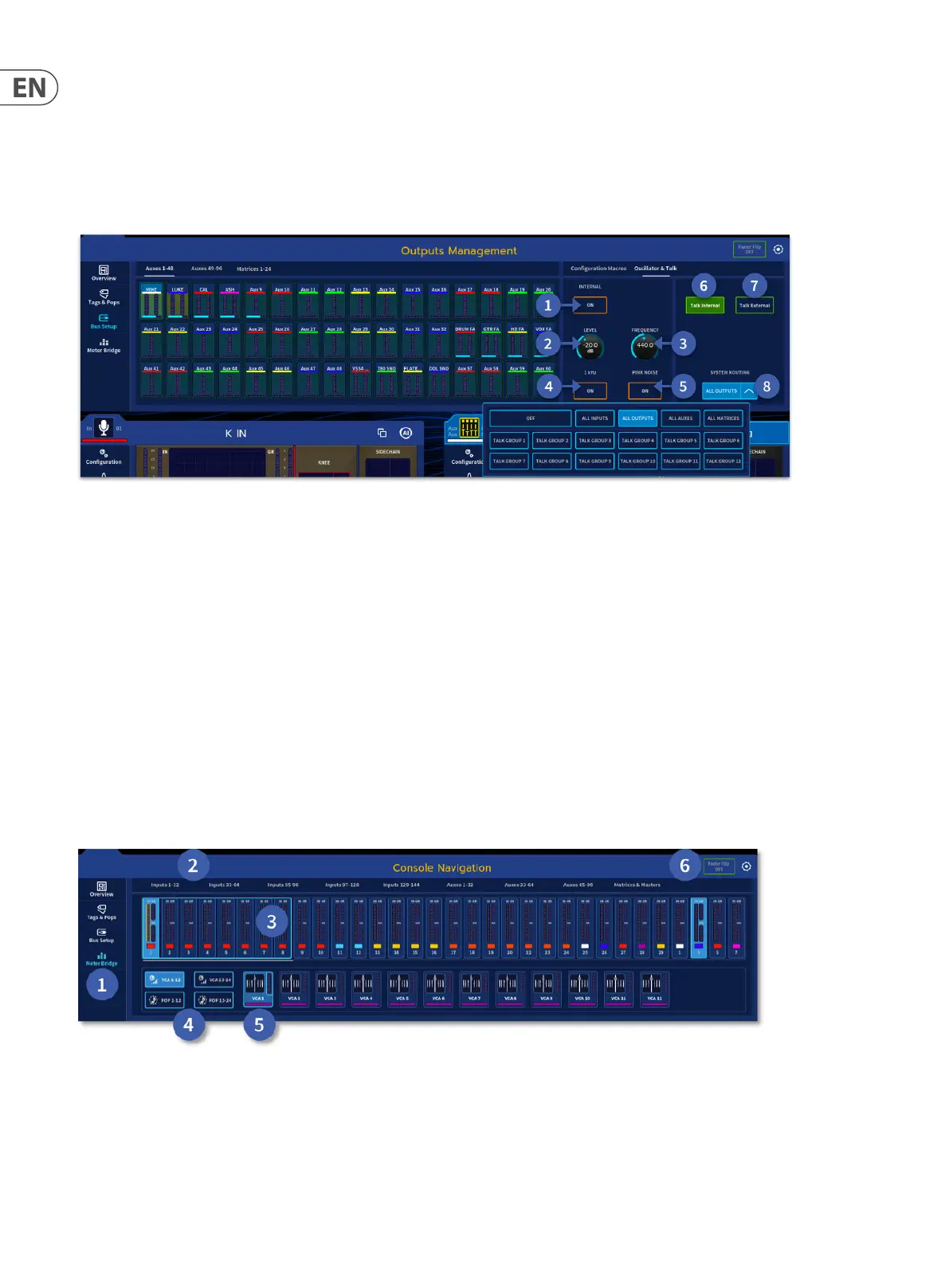

1. Turns internal oscillator on.
2. Oscillator level control.
3. Oscillator frequency control.
4. Turns on 1 kHz tone (auto switches Pink Noise o when active).
5. Turns on Pink Noise generator (auto switches 1 kHz tone o when active).
6. Talk Internal routes the talk mic to the internal talk bus.
7. Talk External connects the talk mic to the external talk output. The Ext output can be patched to any physical output.
8. System Routing pop out. Various destination can be picked to send the chosen talk bus too. Routing cannot be selected unless a Talk Internal or External has been
selected rst.
Meter Bridge
The Meter Bridge page can display metering for any inputs or outputs. The meters also show compressor and gate gain reduction of the selected channel. By pressing
on the corresponding input, output, POP or VCA, dierent combinations of meters can be viewed.
Note: In this example, VCA 1 shows a combination of input channels and output channels (the last 4 meters are Stereo Aux outputs).
1. Meter Bridge selection.
2. Fixed views of Inputs and Outputs. Press to view.
3. Selected meters area spilled to surface Area A.
4. VCA and POP group number selection.
5. Selection of meters by VCA or POP.
6. Activate Fader Flip mode.
Note: When a VCA or POP is selected it also spills to the area it is assigned on the surface.
