53 HD96-24-CC-TP User Manual

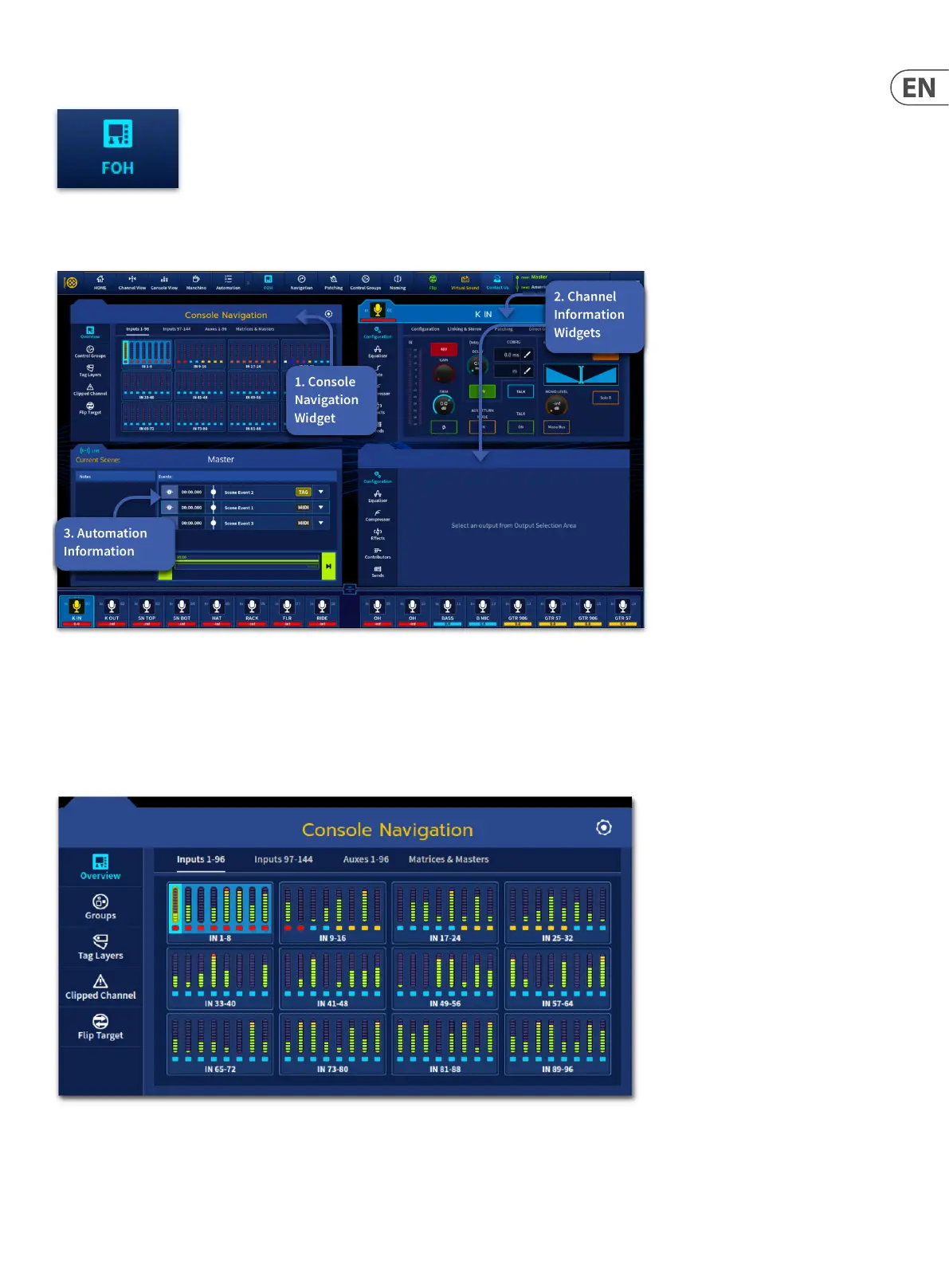

FOH View
The FOH Workow is a great place to mix a show giving easy access to the fader tray while still allowing full control of the navigation and input channel areas. When
the fader tray is lowered current scene and output information can be controlled making this a very exible view. The FOH can be found in the customise
1. Console navigation widget.
2. Input and Output information widgets.
3. Current scene automation events view.
Note: in the above example no outputs are selected.
The FOH Workow splits the touchscreen into 4 separate areas.
The top left area has the Console Navigation widget. To the left side you will see icons for Overview, Groups, Tag Layers, Clipped Channels and Flip Target. This allows
swift access to any input or output by touching the bank of paths you require.
The Overview page lets you choose from all the available paths and are arranged in tabbed groups for quick access.
