241 HD96-24-CC-TP User Manual
Chapter 28. Panel Connections

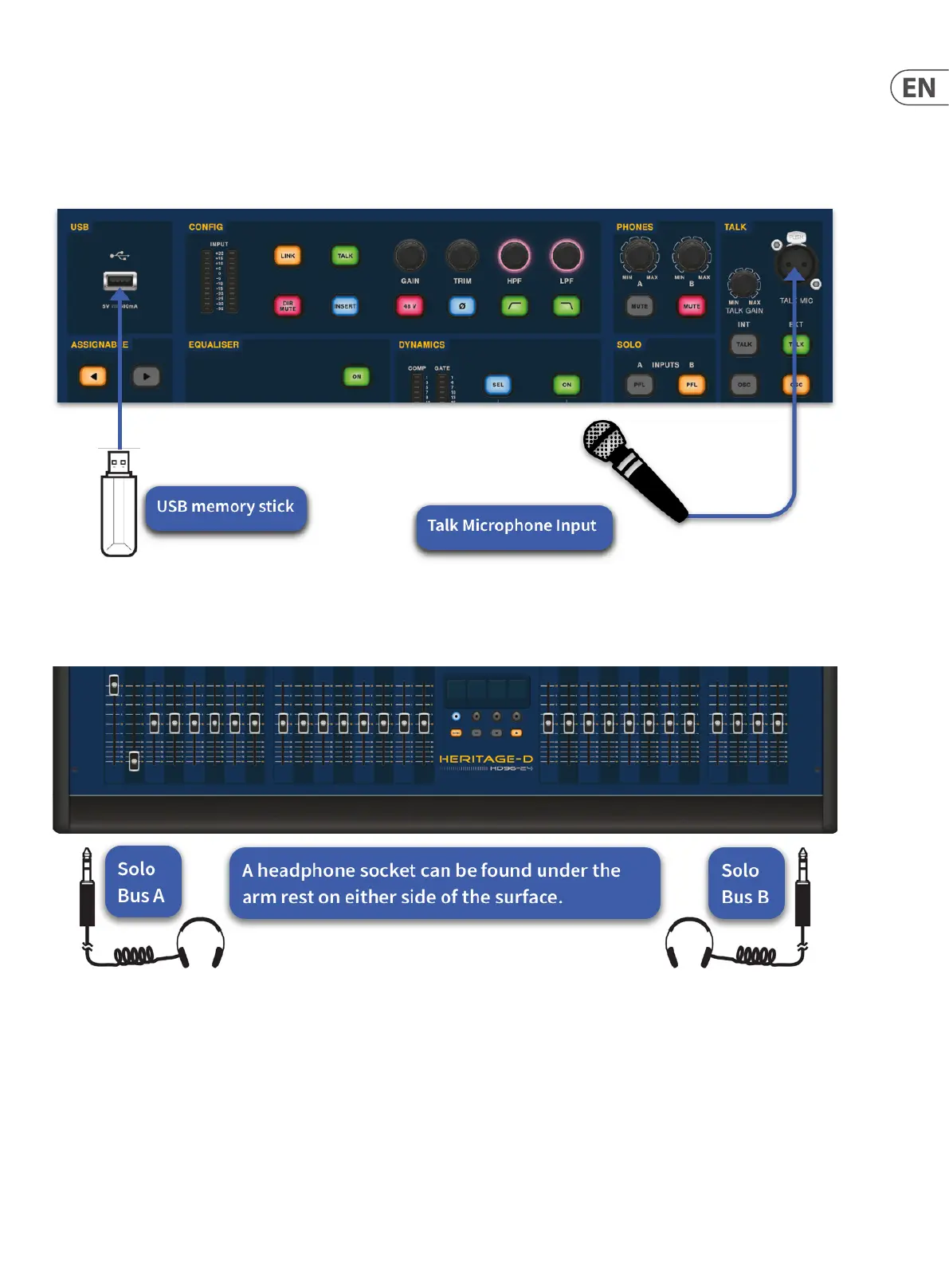

Front Panel Connections
A USB drive can be used on the front panel to save and load shows, user libraries or other settings. Any standard USB key can be used with no limit on size of key.
The Talk Mic input can be used to add a talk back mic, a gain control next to the input can be used to adjust the mic pre amp to a suitable level.
6.35 mm Headphone sockets can be found under each side of the surface. The left side signal is taken from the monitor A bus and the right side headphone socket from
the monitor B bus.
