Console View

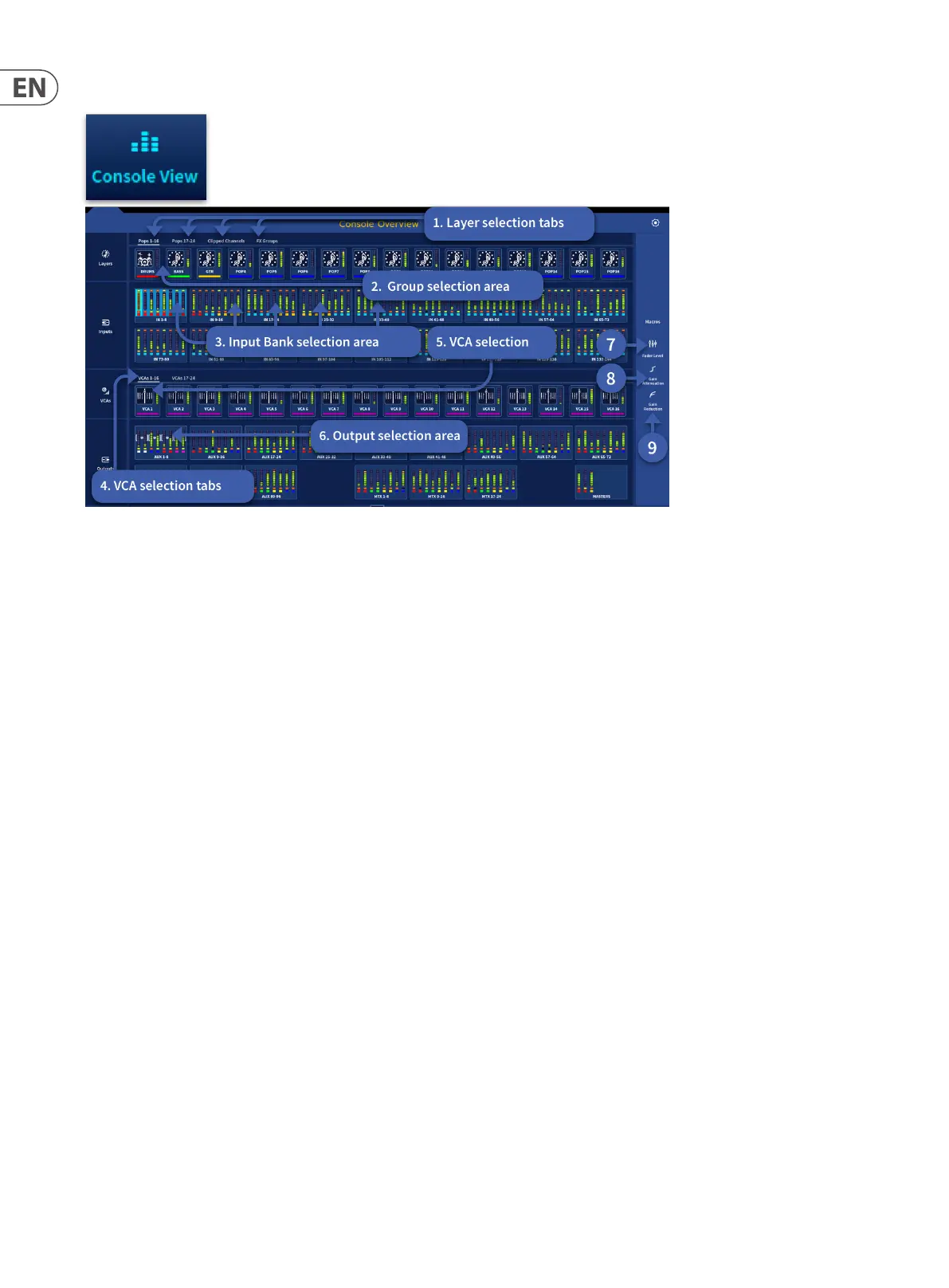

The Console View workow gives you an overview of all the channels in the system in one place. This page is very useful for trouble shooting clipping channels or to
see if any inputs or outputs are muted (indicated by the meter outlined in red).
1. Layer selection tabs let you choose from Pops, Mute groups, Talk groups, Clipped Channels or FX Groups.
2. Group selection area lets you choose which group of channels to make active via the GUI and surface. Long pressing a POP group will quickly open the group
assign page.
3. Input Bank selection area. All available inputs can be selected here.
4. VCA selection tab. VCAs 1-16 or 17-24 can be selected here.
5. VCA selection. Pressing on any VCA button will bring any associated channels to the GUI and surface. Long pressing a VCA button will quickly open the group
assign page.
6. Output bank selection. All available outputs can be selected here.
7. Select to view Fader Level information.
8. Select to view Gain Attenuation of the channel gate.
9. Select to view Gain Reduction of the channel compressor.
In Console View the pull up fader tray is locked in the down position but allows you to select channels as required to aid navigation. If you touch a physical surface
control it will activate the side bar pop up to display the chosen control information. This works for Cong, EQ, Dynamics and Master bus functions.
