90 HD96-24-CC-TP User Manual

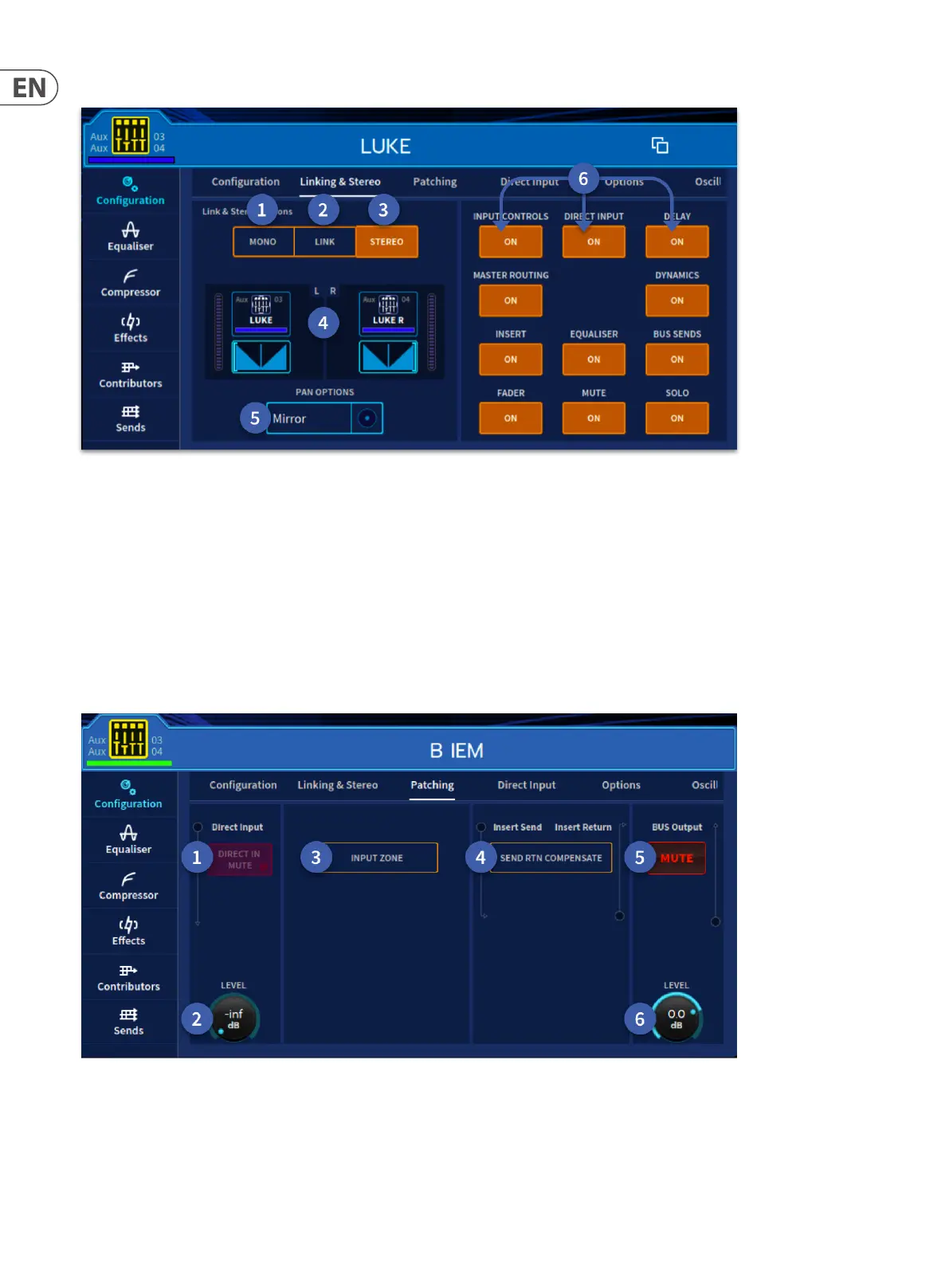

Linking & Stereo (Outputs)
1. Mono. The channel is Mono.
2. Link. Two mono channels linked together; the faders can be linked by using the Fader option.
3. Stereo. Two linked channels controlled by a single fader.
4. Current pan position and level meter information.
5. A choice of Independent or Mirror pan link mode.
6. Options to link or unlink parameters when a pair of inputs are linked.
Note: Remember Outputs have to link odd to even. I.E. 1-2 or 9-10 etc.
Patching (Outputs)
1. Aux Compressor Side Chain patch information.
2. Send and Return compensation on/o. In general, this will need to be on in order to preserve audio time alignment.
3. Aux Insert Send patch information.
4. Insert On/O.
5. Insert Return A patch information.
