49 HD96-24-CC-TP User Manual
To the right is POP Groups Navigation. A place to recall pre-dened groups of channels to the surface, layer overview and touch screen faders. The banks can be swiped
through to reach all channels and VCAs.

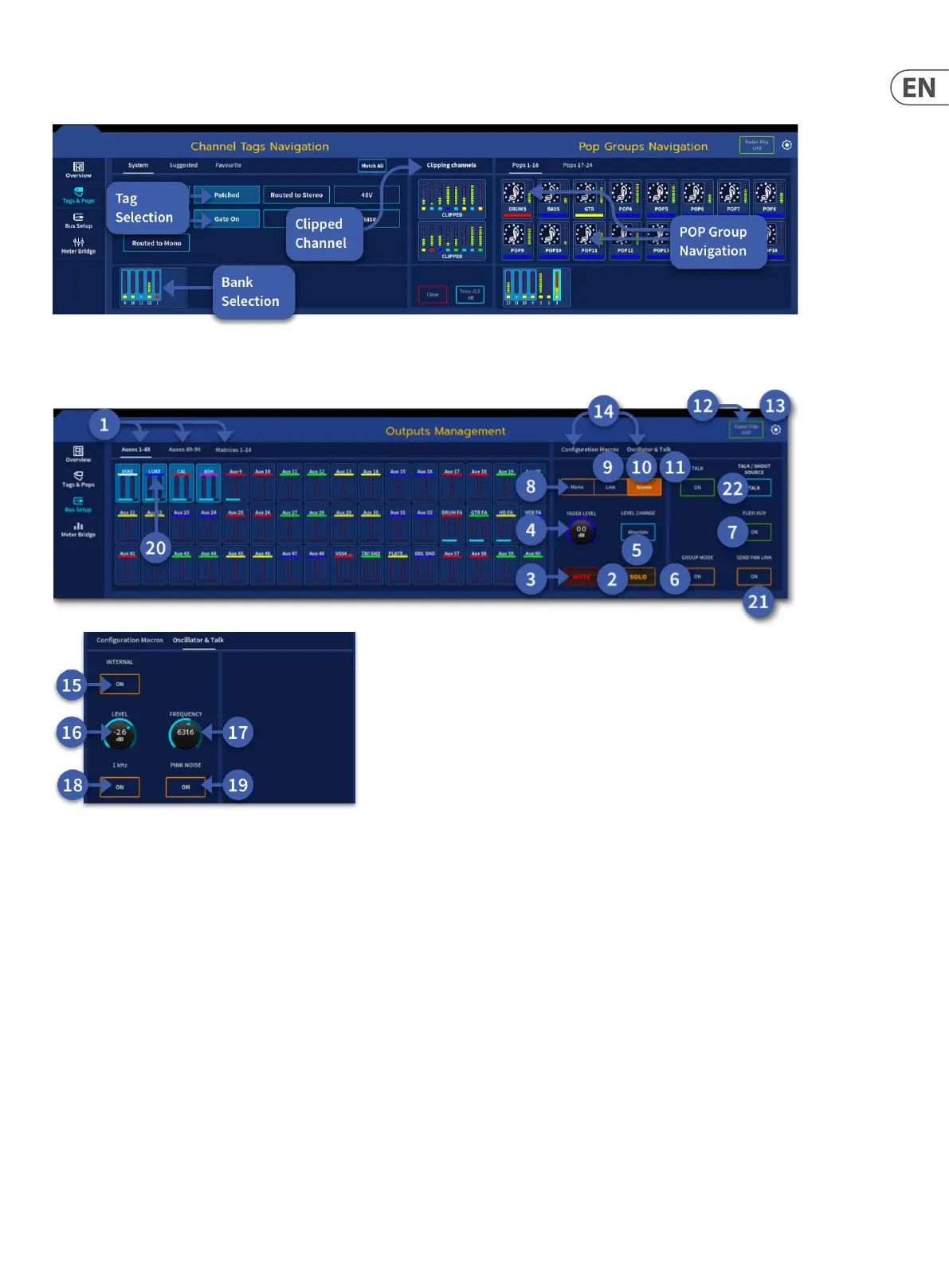

Bus Setup and Outputs Management
This page allows you to change multiple output settings at once. For example, it can be used to mute outputs, set all output levels to 0 dB or to send the oscillator to
any output you wish to test.
1. Tab between Auxes or Matrices.
2. Solo selected Aux or Matrix.
3. Mute selected Aux or Matrix. Interrogation of mute status by press and hold function.
4. Fader level for selected Aux or Matrix.
5. Level change selection. Absolute changes all levels to the same value once the control is turned, Relative (level change is relative to original value with a + or –
oset) or Pass-thru (action only takes eect when original level is passed, then level control is taken over by the control).
6. Turns the currently selected Auxes into Groups (Matrices cannot be turned into groups).
7. Turns an Aux into a Flexi Aux (this allows Flexi Aux to Aux routing for group/stem style mixing).
8. Long press to make an aux mono (mono is default).
9. Long press to make an aux linked (odd to even only).
10. Long press to make two auxes into a stereo aux (odd to even only).
11. Toggles Talk on/o for selected aux busses.
12. Flip Mode on/o. This is the same function as the Fader Flip button in the top menu bar.
13. Solo Preferences page.
