89 HD96-24-CC-TP User Manual

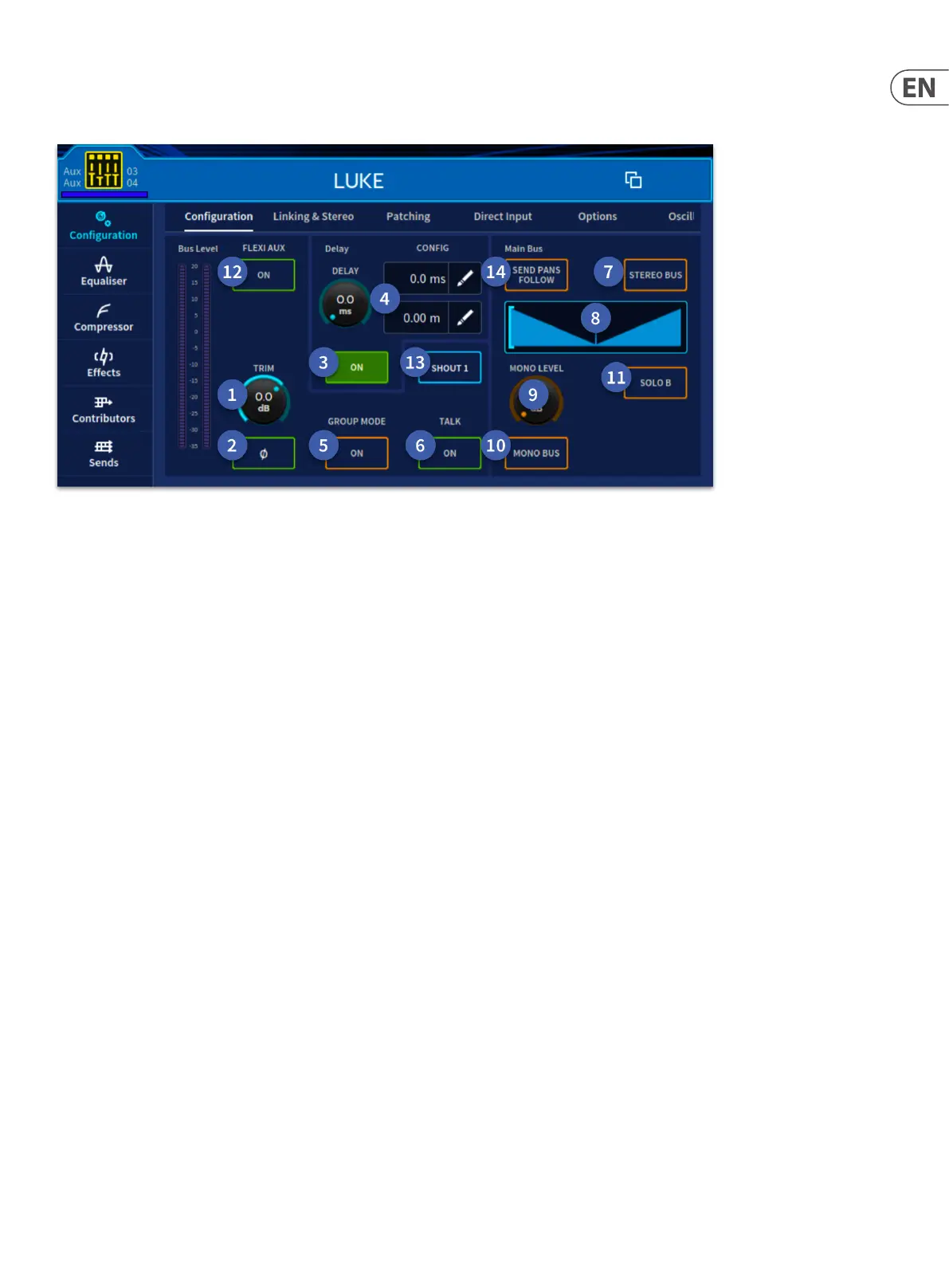

Conguration Pages for Outputs
Conguration (Outputs)
1. Digital Trim. Range is from -12 dB to +6 dB.
2. Ø Phase (180° Polarity change.)
3. Delay On/O.
4. Delay Time (displayed in milliseconds and meters, maximum 500.0ms).
5. Group mode (turn an aux into a subgroup).
6. Talk On/O.
7. Stereo Bus (sends the channel to the Stereo Master Bus).
8. Pan (position within the Stereo Master bus).
9. Level control to the Mono Bus.
10. Mono Bus (sends the channel to the Mono Bus).
11. Sends to Solo B for monitoring purposes.
12. Flexi Aux on (Flexi Aux allows group/stem style Aux to Aux mixing).
13. Talk Bus/Shout mixer output assign. (See Shout Cong for details).
14. Sends Pan Follow makes contributions follow the pan position of the channel they are derived from.
