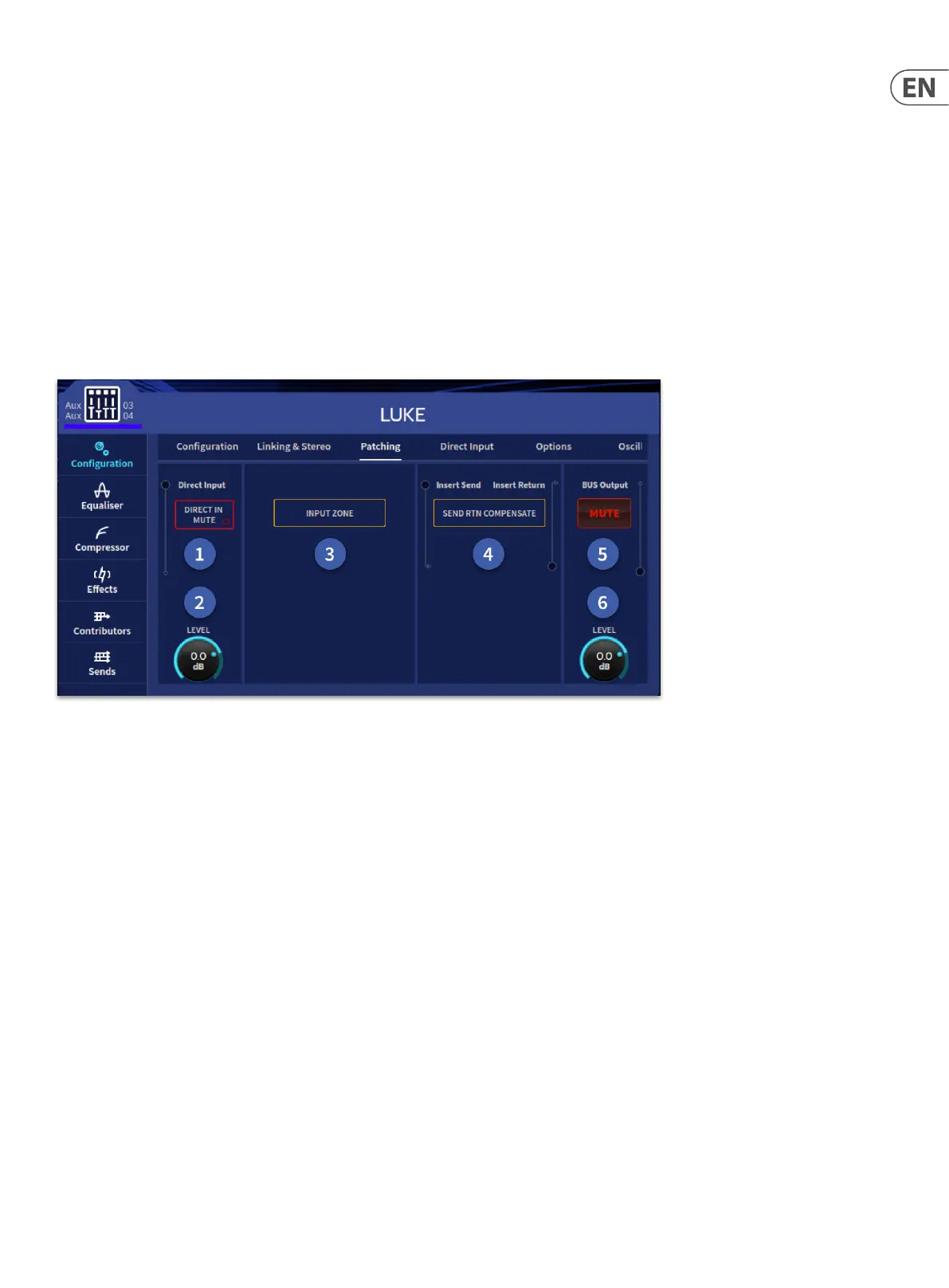

209 HD96-24-CC-TP User Manual
15. The Grid – Shows all aected cells depending on mode selection.
16. Zoom Area – The highlighted area shows where the zoom will focus on.
17. Zoom In/Out – Turns the cell zoom on and o as required.
18. Show Manager – Returns back to the Show Manager.
19. Help – Press for information about the Show Editor.
20. Single Inspection – When in Single Selection mode this column displays the parameters in the selected area.
21. Show Editor Key - An explanatory list of symbols used in the grid.
22. Master Scene Lock Icon – This icon indicates if the Master Scene Lock is engaged.
Recall Scope Mode
Recall scope can stop the loading of information from a scene by setting individual items or cells within a channel to not recall. The blue padlock indicates that a
channel or scene has part or all of channel in the recall scope.
All the Edit, Type and Areas function in the same as the Parameters mode.
1. Recall Scope – Press to enter Recall Scope Mode.
2. The Grid – Channels with cells in Recall Scope are highlighted with a purple padlock.
3. Set Recall Scope – This activates Recall Scope on any selected cells.
4. Remove Recall Scope – This clears any selected active Recall Scopes.
5. Copy – Copies any cell selections to the clip board.
6. Paste – Pastes any copied selections to the chosen destination.
