285 HD96-24-CC-TP User Manual
Linecheck Page

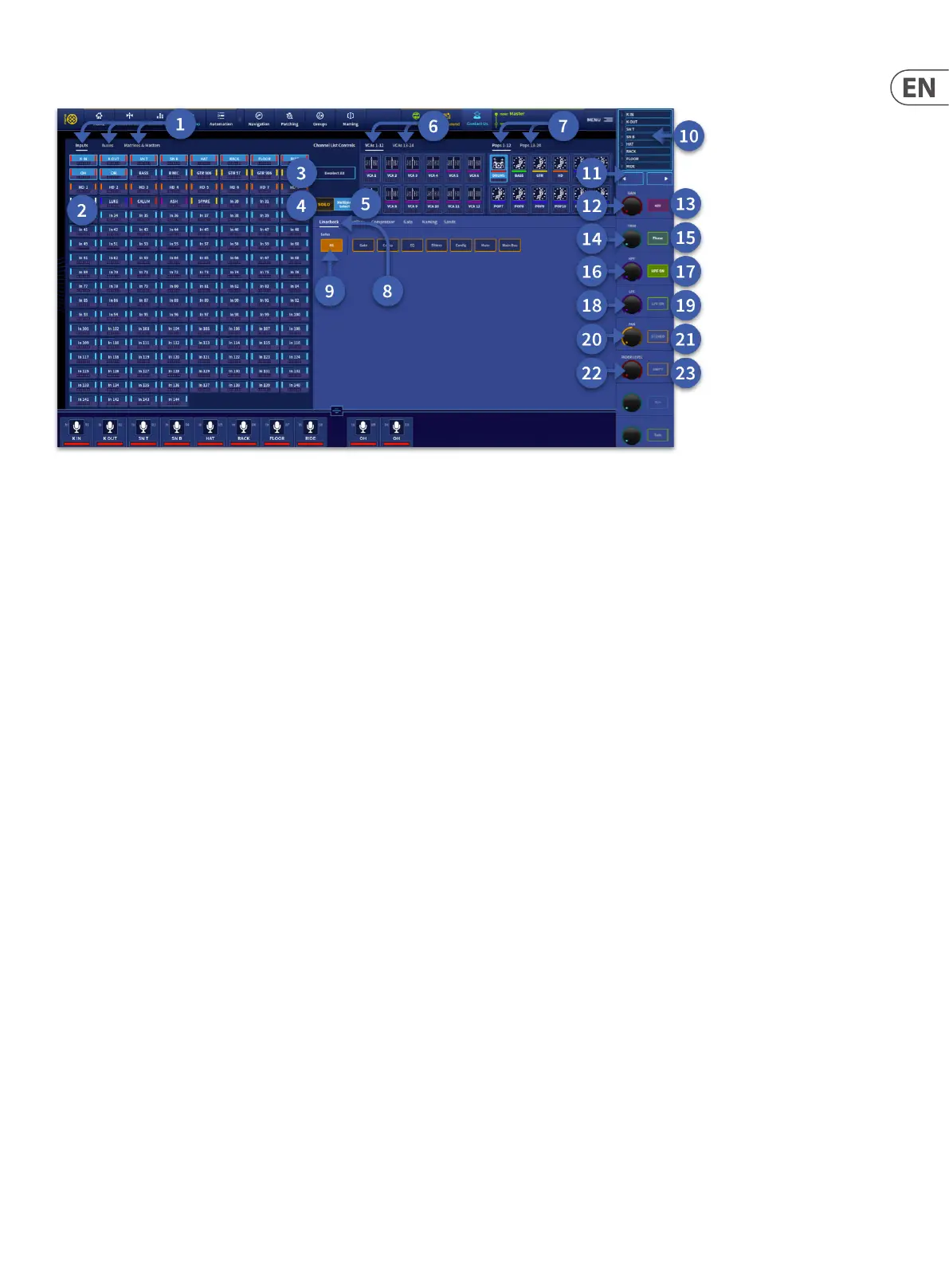

1. Three tabs to select Inputs, Auxes or Matrices & Masters. Only one page can have selections at any one time. For example, you can’t edit Inputs and Auxes at the
same time.
2. Paths can be selected individually or selecting all by pressing and holding. After selecting all, channels can be pressed again to deselect or press and hold to
deselect all.
3. Deselect All clears all current path selections.
4. Solo mode allows only one channel to be selected and edited at once. Solo also sends the selected channel to the solo bus for audition.
5. Multiple Select allows any combination of channels to be selected within the current page.
6. Path selection by VCA. For example, Select the guitar VCA and all the guitar channels will be selected.
7. Path selection by POP group. For example, Select the drums POP group and all drums channels will be selected.
8. Select which page of the Manchino you wish to use from Linecheck, Equaliser, Compressor, Gate, Patching, Naming and Sends.
9. Turn various safes on for the currently selected channels.
10. Display of the currently selected channels in banks of 8.
11. Arrows to scroll through the various banks of channels if more than 8 channels are selected.
12. Gain level for the selected channels.
13. 48v button for the selected channels. Solid red if all channels have 48v applied. Translucent red if more than one channel is selected with dierent 48v states.
14. Trim control for the selected channels
15. Ø Polarity control, Solid green if all channels have Ø applied. Translucent green if more than one channel is selected with dierent Ø states.
16. High Pass Frequency (HP) for the selected channels. 10 Hz to 10 kHz.
17. HP ON. Solid green if all channels have HP on. Translucent green if more than one channel is selected with dierent HP states.
18. Low Pass Frequency (LP) for the selected channels. 20 kHz to 40 Hz.
19. LP ON. Solid green if all channels have LP on. Translucent green if more than one channel is selected with dierent LP states.
20. Pan control changes the pan position in the stereo bus for all selected paths.
21. Stereo button indicates solid orange if all selected channels are assigned to the stereo bus. Translucent orange if more than one channel is selected with dierent
stereo send states.
22. Fader level adjusts the position of the fader to the main stereo bus.
23. Unity sets selected channels to 0 dB.
Tip: A great place to set all faders to 0dB ready for monitor mixing or turn all your High Pass Filters on.
Note: Press and hold on a VCA or POP to take you to the set-up and naming if required.
