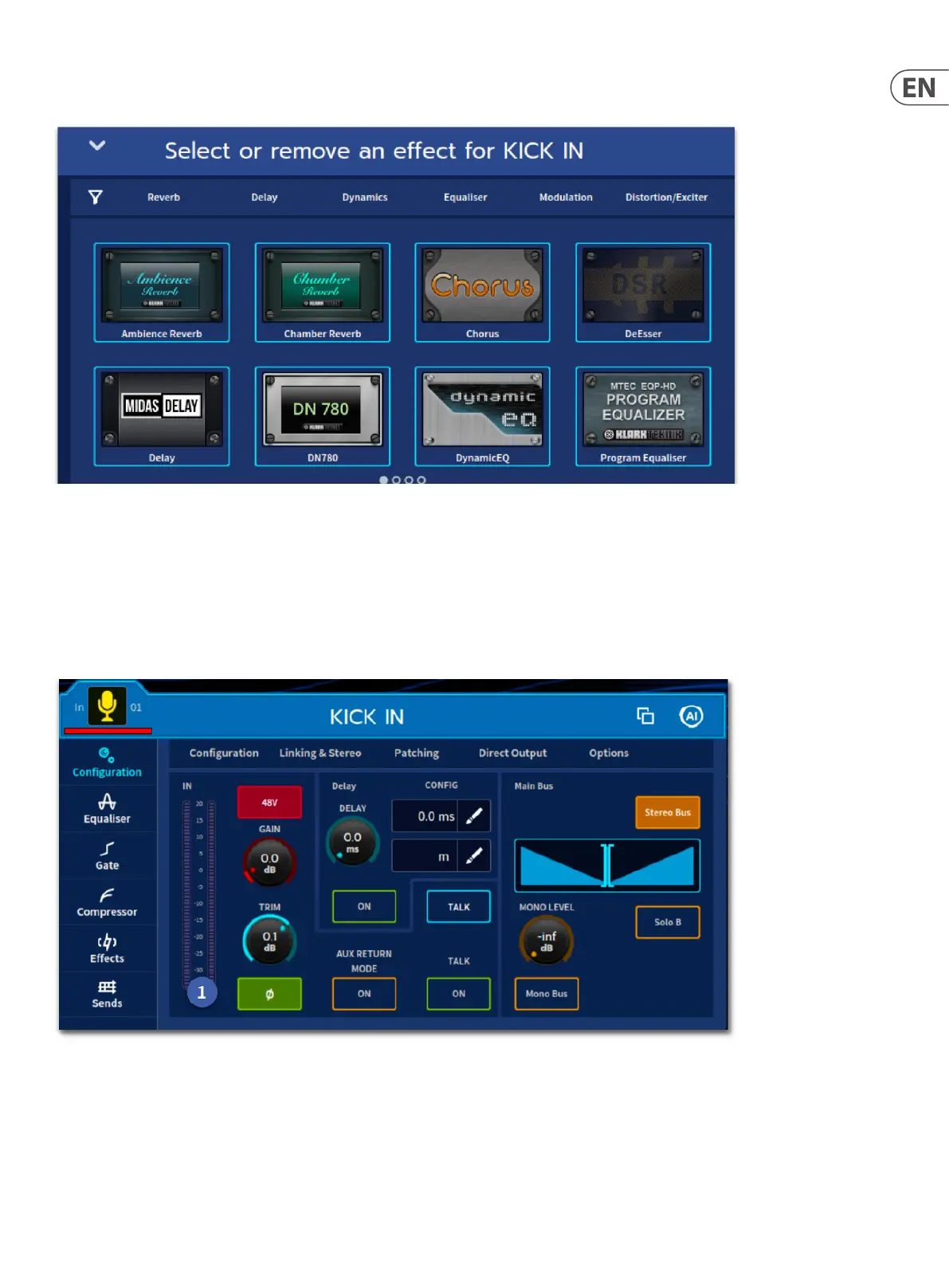

Pressing the Add button opens up the Select or remove page. Tap on the eect you wish to use and press the Add button to load that eect into the chosen slot.
If enough DSP is available, the eect will load. The red bar will wiggle if there is not enough DSP left. The amount of DSP left is shown by the Slots Available indicator.
Touching each lled eect slot or the edit button will open the eect ready for parameter adjustment. For details of eect types and control see the eects chapter.
To remove an eect, touch Edit on the slot you wish to clear. The press and hold Remove. A line will trace around the Remove button and after this has completed the
eect will be removed. This is to stop accidental removal of eects.
Input Metering
In the Conguration widget mic gain is displayed on a 53 segment LED style display which gives an accurate representation of the level of signal within the system .
This level information is also displayed on the surface in various dierent areas including the Channel Banks fader area and in the Cong area to the right of the touch
screen. The meters will show either stereo or mono signals depending on channel’s link conguration.
