Midas HD96-24-CC-TP User Manual

242 HD96-24-CC-TP User Manual

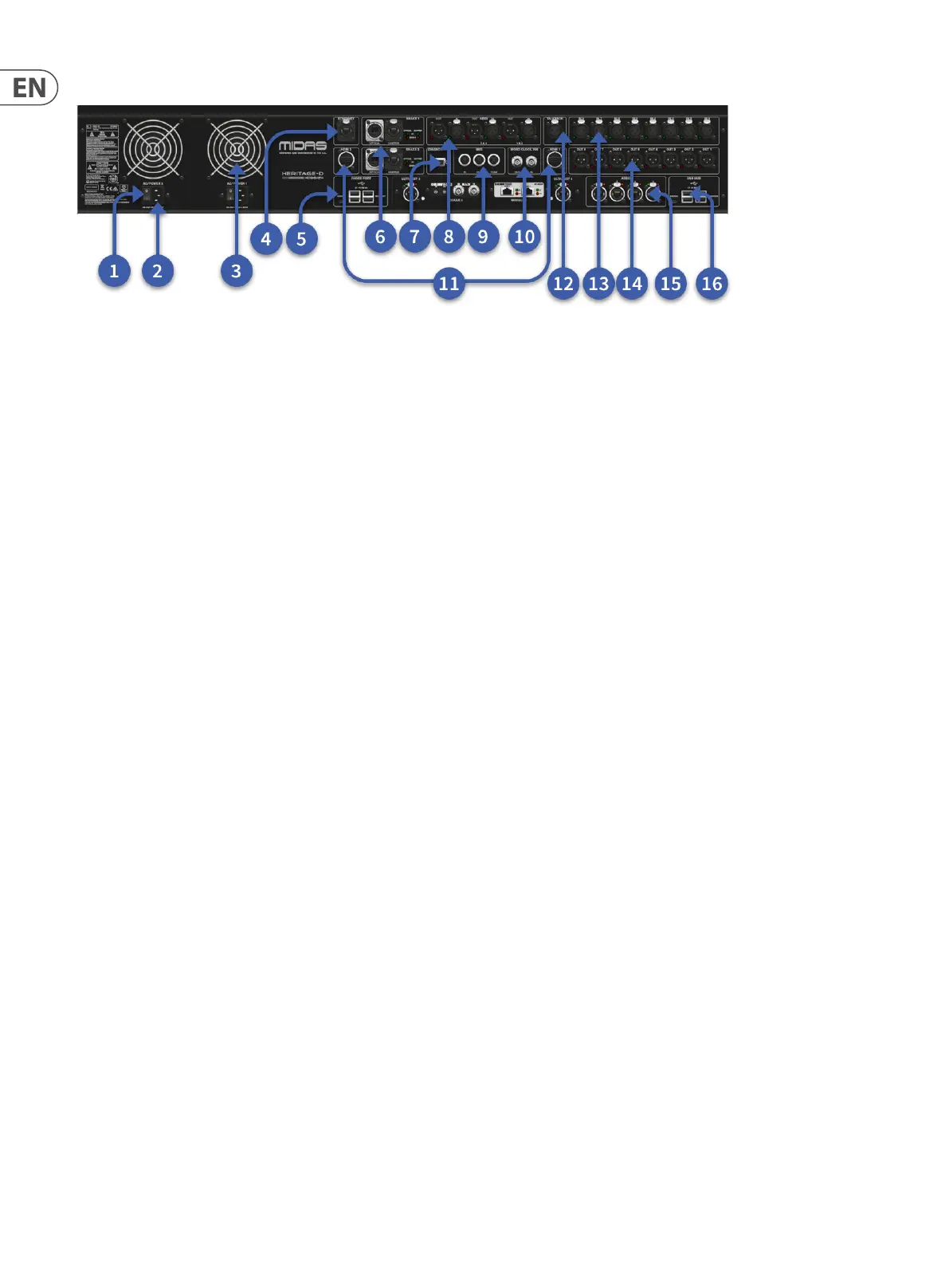

Rear Panel Connections
1. Power on switch
2. 100v-240v IEC socket
3. Internal fan
4. Ethernet port
5. Fader port USB hub
6. 2 x Hyper-mac snake connections (192 channels per connection via optical bre or Cat5e copper)
7. Diagnostics port (for Midas use)
8. AES3 1-4 Digital I/O and AES Sync I/O.
9. MIDI In, Out Thru
10. Word clock I/O BNC 75 Ω
11. HDMI outputs for connecting external monitors
12. Talkback input
13. 8 x Midas microphone input preampliers
14. 8 x Output XLRs
15. 4 x AES50 ports (24 bi-directional channels each)
16. USB Hub for connection of keyboards or other USB devices
