167 HD96-24-CC-TP User Manual
Item Control Function
8 Crossover Enable - Switch
Engages the crossover for frequency split Dual band limiting. 2x full band limiters in series when The
Crossover is disabled.
9 Mode - Switch Switch between 2 Band or Brick wall mode.
10 Power - Switch Turn the limiter o.
11 Soft - Switch
The soft knee setting applies limiting gradually until the ratio is reached. This makes the transition from
uncompressed to compressed audio smoother and less abrupt.
12 Input Gain - Control Adjusts the input level to the limiter. -20 dB to 40 dB.
13 Output Gain - Control Output gain sets the maximum level,
14 Attack - Control Attack controls the speed at which dynamic processing begins.
15 Release - Control Release sets the recovery speed of the gain attenuation when the input drops below the threshold.

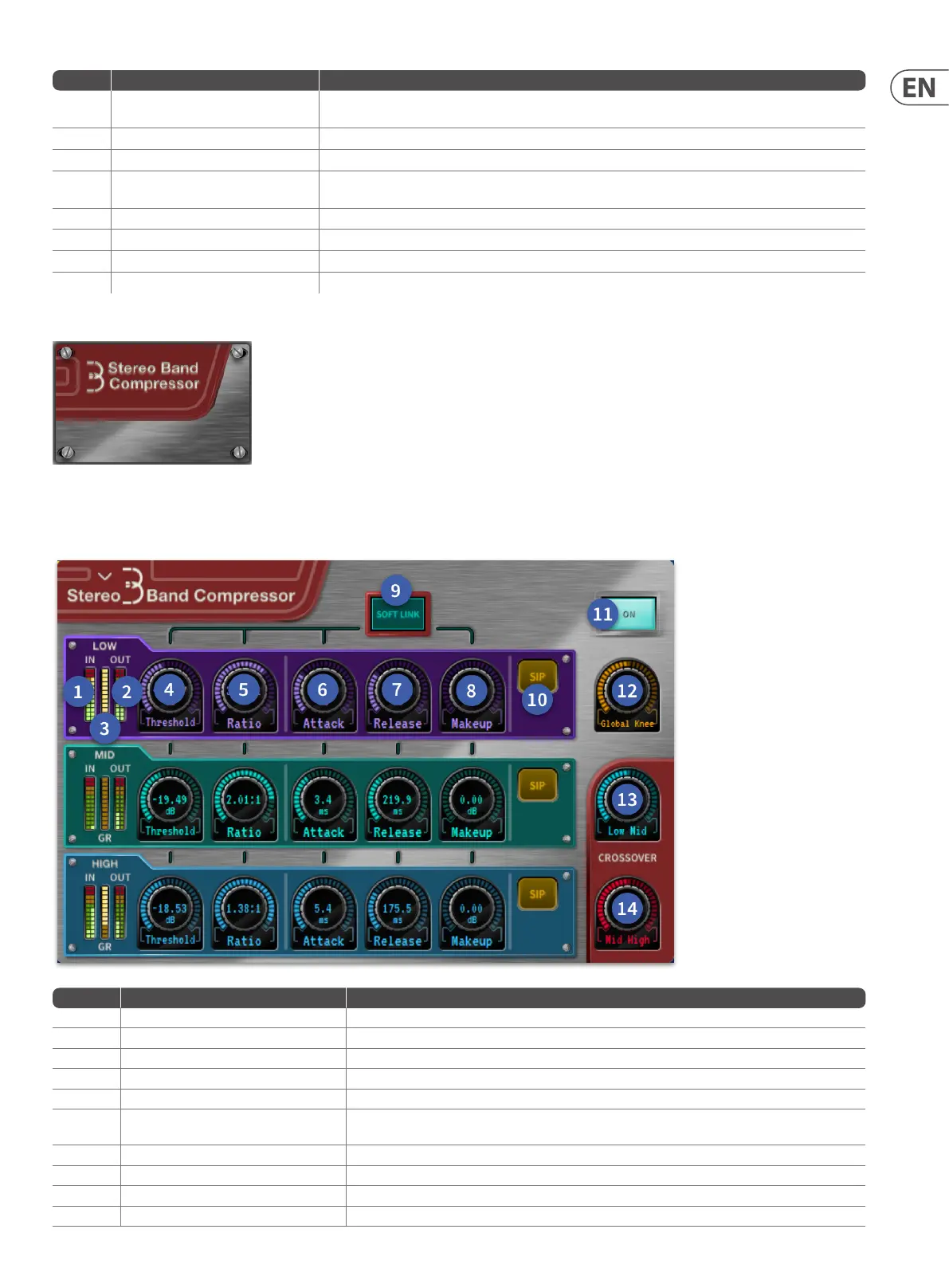

Stereo 3 Band Compressor
The 3-band Compressor eect is a minimum phase shift (analogue style) implementation that guarantees coherent band summing, even at the most extreme
crossover point settings. Each band provides full control of its compressor’s action, with partially adaptive time constants ensuring the most natural results from even
the most variable sources.
Item Control Function
1 Band Input Meter 12 Stereo LEDs showing each band’s input metering.
2 Band Output Meter 12 Stereo LEDs showing each band’s output metering.
3 Gain Reduction Meter 12 LEDs showing band gain reduction.
4 Threshold Control The threshold determines when the compressor starts to compress the signal.
5 Ratio Control The ratio control determines how much compression is applied to the signal. Ratio range from 1:1 to 25:1.
6 Attack Control
Changes the attack time, fast settings to reduce transients, longer settings to add attack to the source
material . Range 0.2 ms to 50 ms.
7 Release Control The release is variable from 50 ms to 3 seconds and varies depending on ratio setting.
8 Makeup Control Adjusts the output level. Use output to make up any gain loss and for comparison tests. Range 0 dB to 24 dB.
9 Soft Link Button Links all bands together for global parameter control.
10 Solo In Place Button Press and hold to send the selected band to the solo bus for audition.
