172 HD96-24-CC-TP User Manual
Item Control Function
4 Bandwidth Control
This control sets the proportion of frequencies surrounding the centre frequency (determined by the
KCS switch) to be aected by the high boost (this is a bandwidth control).
5 HF Boost Control This control sets the amount of gain for the high frequency portion of the equalizer.
6 HF Atten Control
This control determines the amount of high shelf cut to be applied to the frequency set by the Atten
Sel switch.
7 KCS High Frequency Switch
This switch determines the frequency of the high boost portion of the equalizer. Seven frequencies
are available: 3, 4, 5, 8, 10, 12, and 16 KCS. KCS stands for Kilo Cycles per Second, which is now more
commonly referred to as Kilohertz and abbreviated as kHz.
8 Atten Sel Switch
This switch (ATTEN SEL) determines the frequency of the high frequency attenuator.
Three frequencies are available: 5, 10, and 20 KCS.
9 On/O Switch On/O control for the compressor but leaves the sonic character of the unit active.
10 Bypass Switch Bypass the EQ completely.

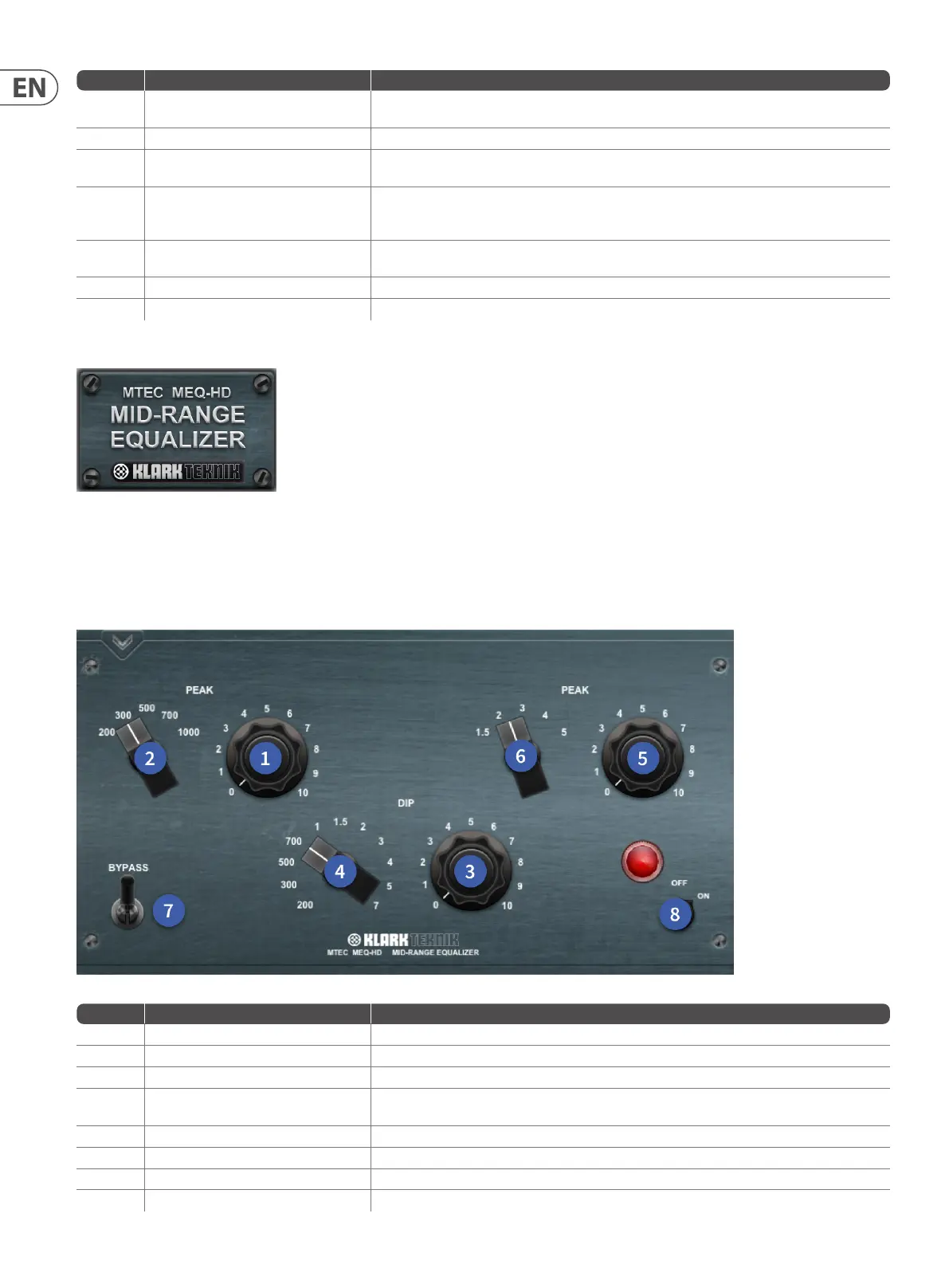

MTEC MEQ-HD Mid-Range Equalizer
Inspired by Pultec MEQ5 Mid-Range Equalizer with its richly colourful tube-amplied sound. With two bands of midrange boost and one band of midrange dip, the
MEQ-5 is designed to enhance and control the “power region” where sound energy is often concentrated.
Pultec wrote the book on passive equalization. By digitally “rebuilding” every aspect of the original Pultec classic, we captured the very essence in our parametric
equaliser. Our digital re-incarnation is based on the original model and authentically emulates the smooth character of the rather unique components.
Low frequency, mid frequency and hi frequency all dictate at which frequencies the lo boost, mid cut and hi boost push controls work.
Item Control Function
1 Low Mid control The Low Mid Peak band adds up to 10dB of boost.
2 Low Mid frequency selection switch 5 Frequency choices: 200 Hz, 300 Hz, 500 Hz, 700 Hz and 1000 Hz.
3 Mid control The Mid Dip band oers up to 10dB of attenuation.
4 Mid frequency selection switch
11 Frequency choices: 200 Hz, 300 Hz, 500 Hz, 700 Hz, 1 kHz, 1.5 kHz, 2 kHz, 3 kHz, 4 kHz, 5 kHz and
7 kHz.
5 Hi Mid control The Hi Mid band oers 5 cuto points and 10dB of Peak (boost).
6 Hi Mid frequency selection switch 5 Frequency choices: 1.5 kHz, 2 kHz, 3 kHz, 4 kHz and 5 kHz.
7 Bypass Switch On/O control but leaves the sonic character of the unit active.
8 On/O Switch Bypass the EQ completely.
