266 HD96-24-CC-TP User Manual

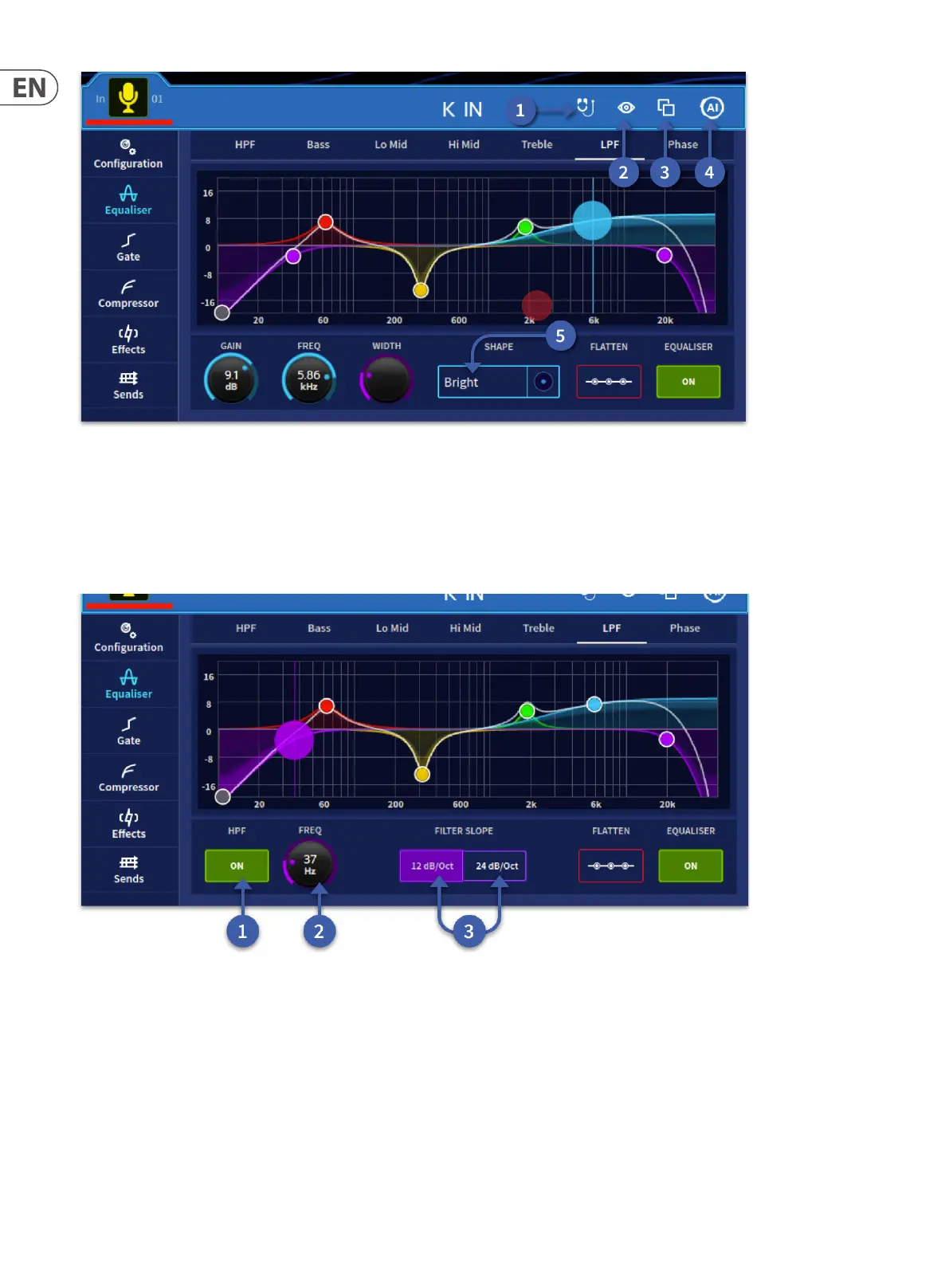

1. EQ Audition Mode - EQ Preview (see EQ Audition section).
2. EQ Preview - Preview EQ in dierent scenes and apply to current scene.
3. Copy & Paste - EQ copy & paste (see Copy & Paste Chapter 17).
4. AI settings - Opens the EQ AI options.
5. Band 1 & 4 shape - Changes the band 4 lter shape between Bell, Bright, Classic or Soft. Changes the band 1 lter shape between Bell, Deep, Classic or Warm.
1. Filter On/O - High/low pass lter on/o.
2. LPF/HPF Freq select - HPF 10 Hz to 400 Hz - LPF 2 kHz to 20 kHz.
3. Filter slope - Either 12 dB/Oct or 24 dB/Oct for the Hi Pass Filter; 6dB/Oct or 12dB/Oct for the Lo Pass Filter.
The HD96-24 input EQ comprises four bands: treble; hi mid; lo mid; and bass. The default operation for all four sections is full parametric sweep (peak), with the
following controls:
Gain: continuous adjustment of boost and cut from + 16dB to - 16dB with a 0dB centre.
Width: continuous adjustment f bandwidth from 0.3 to 5.3 octaves (this only operates in bell mode for Bass and Treble).
The Treble EQ band can be switched from bell to any of three other shelving modes:
Soft, Classic, and Bright.
