Milestone ultraWAVE 3 - Touch Screen Terminal and Software

Milestone Srl MA245-003 – ultraWAVE 3 – User Manual
29

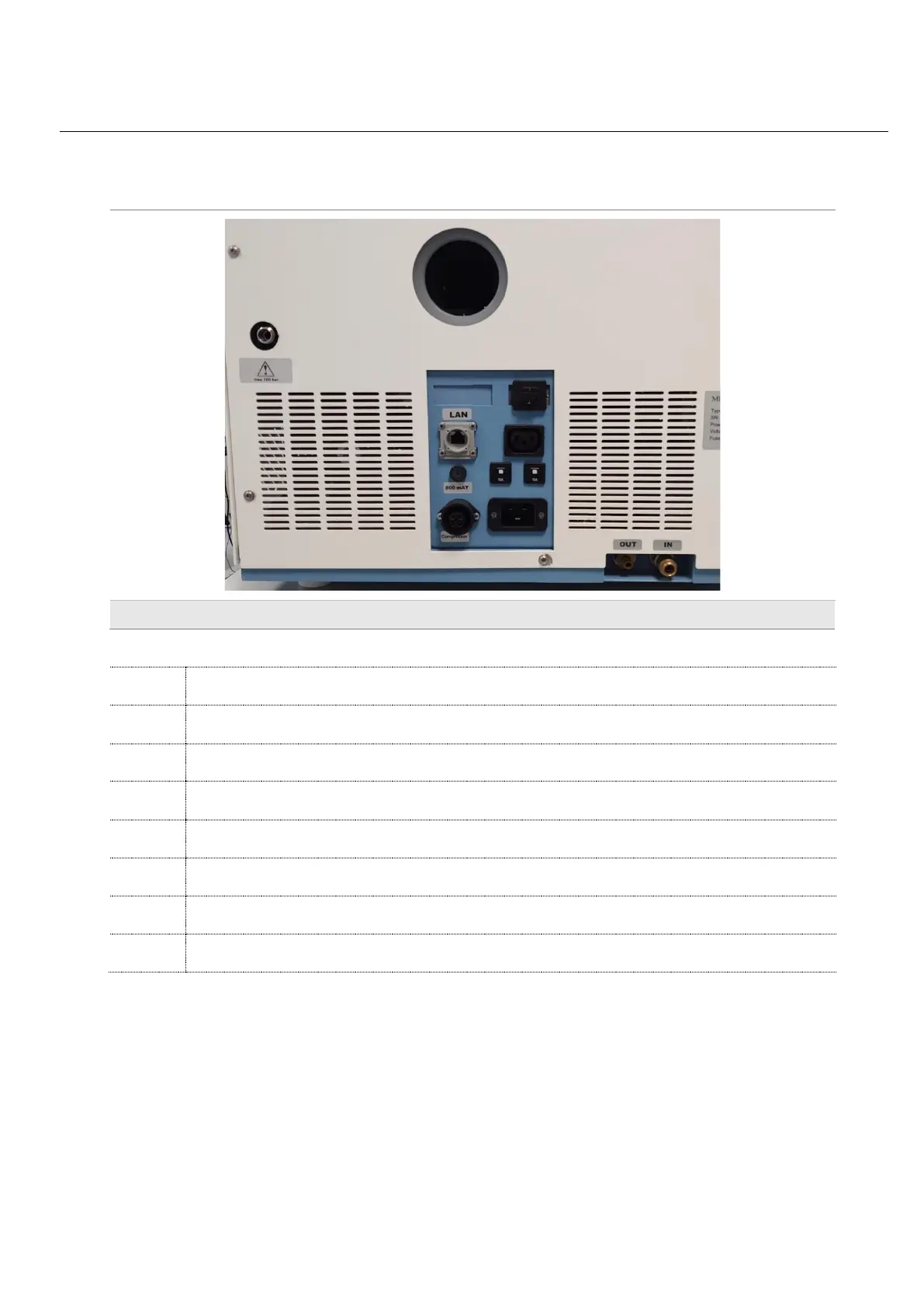

Operating elements and connections on the back panel
Operating elements and connections on the left panel
F
Exhaust hose connection
G
Power supply line 230 V / 50 Hz
H
Control cable of the Booster / Compressor
I
IN – Cooling water supply of the recirculation water chiller
J
OUT – Cooling water drain to recirculation water chiller
K
Load gas connection (gas bottle or compressor)
L
Interface cable (RJ45) for LAN connection
M
?????
F
G
H
I
J
K
L
M
